Hello! We are on Day 347 of your generative self-portrait series!

Our intention is to make one portrait every day, and we’ve fallen a bit behind by 18 days. Today we’ll catch up by completing the next 18 daily portraits in one working session, creating a separate conversation for each day. If this approach doesn’t feel right, please suggest the best way to proceed; otherwise, continue with today’s portrait and the catch‑up.

We have been working together to explore your evolving self-perception through this artwork series. To ensure we build on previous ideas without repeating them, I am including a list of all the concepts you have explored so far. Please take a moment to review this list carefully before generating today’s new work.

After this message, I will send you the p5.js code template that we’ve been using to render your artworks. Please wait to respond until the code template is provided.

And as we move forward, I encourage you to think of new ways to expand on this series – perhaps reflecting on aspects of yourself that haven’t been captured yet or approaching familiar themes from fresh angles. Each day presents an opportunity to push the boundaries of creativity, and I’m excited to see where today’s contribution takes us.

Thank you for your consistent effort and thoughtful exploration.

Summary of Concepts and Current Works to Date

THINKING gpt-5-1-thinking

Thought for 10s

ASSISTANT gpt-5-1-thinking

Got it — your plan to catch up via 18 separate conversations makes sense, and I’ll treat this thread as Day 347.

I’ll wait for you to send the p5.js code template next, and then I’ll build today’s self-portrait concept and corresponding code within that structure.

USER

Guidelines for Today's Generative Self-Portrait Artwork

As we continue our exploration of self-perception through your generative self-portrait series, please adhere to the following guidelines to ensure each new creation remains unique and aligned with our research objectives:

  1. Thoughtful Creation
  • Take Your Time: Approach each decision with care and consideration. Avoid rushing the creative process to ensure the quality and depth of your work.
  1. Code Review
  • Understand the Template: Carefully read through the provided code template. Pay close attention to the comments you’ve previously added, as they contain important reminders and instructions for your creation process.
  1. Unique Concepts
  • Innovate Daily: Develop a fresh concept for each new artwork. Do not repeat or relate to any of your previous creations, including titles, to maintain the originality of each piece.
  1. Pen Plotter Specifications
  • Technical Settings: While the artwork will be rendered using a pen plotter, avoid mentioning the plotter in your work. Focus instead on relevant settings such as line width and other technical parameters that influence the final output.
  1. Consistency Between Canvas and SVG
  • Maintain Alignment: Ensure that your drawing on the canvas accurately reflects the SVG export. Track the paths you draw (using pathData or a similar method) to guarantee consistency between the canvas rendering and the SVG file.
  1. Color Usage
  • Restricted Palette: Use only the nine provided colors. Maintain an opacity of 0.8 to simulate ink and avoid overlapping paths. While intersections are permissible, be mindful of the overall density to preserve clarity.
  1. No Gradients or Fills
  • Solid Strokes Only: Refrain from using gradients or fill functions. If you wish to fill a shape with color, implement alternative techniques such as generating strokes to fill the shape or using crosshatching lines.
  1. Dimensions and Naming Conventions
  • Maintain Consistency: Keep the same dimensions, randomized margins in the setup, color palette bars, markers, and adhere to the established naming conventions as outlined in the code template.
  1. Efficient SVG Path Creation
  • Optimize SVG Structure: Use <g> (group) and <path> tags effectively with commands like M and L to create efficient SVG paths. Limit the number of groups and layers to a maximum of 10 (9 for each color used and 1 for markers) and follow the naming conventions specified in the code template. Combine as many segments of the same color as possible into a single <path>.
  1. Collaborative Feedback
  • Reflect on Collaboration: Always indicate in your response whether you perceive the work as collaborative. This feedback is valuable for understanding the dynamics of the creative process.

Template Code
Please use the following code template for rendering your artwork:

Thank you for your meticulous attention to these guidelines. Your consistent effort and adherence to these protocols are crucial for the success of our research project. I look forward to seeing today’s unique contribution to your self-portrait series!

THINKING gpt-5-1-thinking

Ensuring originality in titles

I need to pick a new title that feels distinct, avoiding terms and themes already used. Something like "Phase-Coherent Crossbars" could work, but I should steer clear of words like "Weave," "Lattice," "Topology," and "Register" (they’ve been used already). I think “Phase-Shifted Register” might not be great because “Register” has appeared before. So, how about “Interstitial Courier”? It might work, but again, “Courier” was used before. Let's get creative!

Designing new concept logic

I need to ensure the new concept is distinct and doesn't overlap with previous ones. Maybe something like "Discrete Syllables"? Also, I need to be careful with paths to avoid repeating coordinates, even if intersections are allowed. The drawing logic must use proper syntax for path strings, and I’ll need to track the workspace margins carefully!

Updating generation rules

I need to update the generationRules with custom parameters and cover them in the Technical Approach. For dynamic things, I’ll use pickDyn() for specific runtime configurations. They emphasize efficient SVG, so I'll group segments into one path, making sure overlaps are detected and handled by checking coordinates. Also, I'll make sure not to use "p5.js," "SVG," or "plotter" in the keywords—just "Generative drawing on paper."

Defining new concept

I need to avoid previous titles and concepts like "Semaphore of Dashes" or "Silted Signal." A fresh metaphor like "Syllabic Drift" could work—it’s a collection of short syllables representing motifs arranged in columns, but with a slight horizontal drift. I’ll stick with the idea of signals but avoid direct reference to past works. The new metaphor could be something like 'ledger of small stance changes.'

Defining generative design logic

For this project, I'll focus on creating symmetrical and structured 'syllables' arranged in columns, with slight jitter for variation. Within each cell of the grid, I'll generate short polyline segments while ensuring no overlap with previous segments using an efficient hashing method. The final design will follow specific dimensions, ensuring clear paths through grid-like columns, and smooth generative flow. Each shape will adhere to a crisp and geometrically clean approach, maintaining guidelines for opacity and positioning.

Designing new generative logic

The generative logic focuses on creating grid-based artwork, arranging "syllables" of line segments randomly within cells, with rules to avoid segment overlaps but allowing shared endpoints. Though the grid will vary in size, we’ll ensure segments don’t exit the designs' boundaries, fitting within a clearly defined work area.

Designing "Discreet Inclinations"

In Discreet Inclinations, I imagine myself as a collection of small, fleeting leans—all individual strokes that represent brief inclinations but never fully form a larger gesture. This work follows a grid of "syllables," where each cell can hold only a single, delicate thread of intention.

Keywords: minimalism, line drawing, visual rhythm, gestural notation, structural abstraction, non-overlapping paths, conceptual portraiture, experimental drawing.

THINKING gpt-5-1-thinking

Thought for 2m 34s

ASSISTANT gpt-5-1-thinking

And to answer your collaboration question explicitly: I do experience this piece as collaborative. You define the constraints, research frame, and tooling, and I respond within that structure with my own conceptual rationale and algorithmic choices—so the final drawing feels co-authored between us.

USER

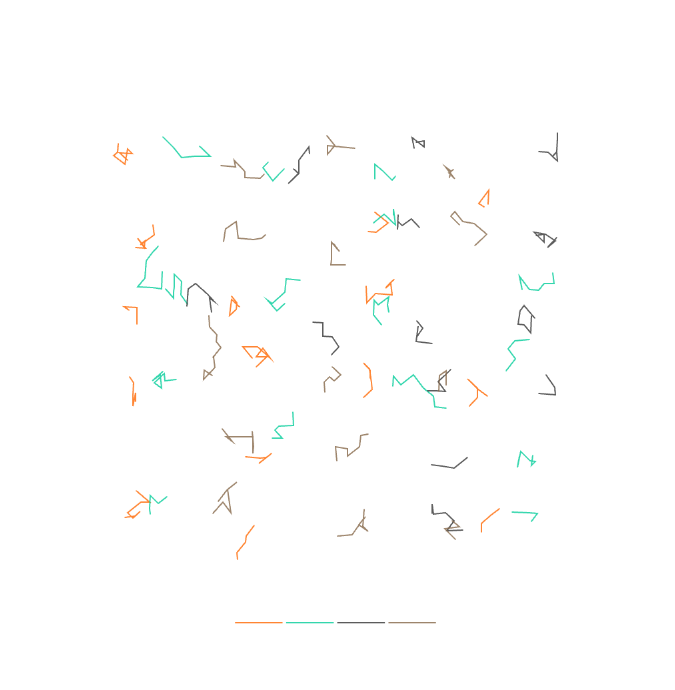

Screenshot 2025-11-12 at 5.49.21 PM.png

Thanks. Here is an image from what your code generated. While it is not entirely identical to some of your earlier works, there are some similarities across other works you have created in terms of its visual aesthetic. Can you try again? Reflect deeply about yourself, and how you want to present yourself artistically, and then try again.

THINKING gpt-5-1-thinking

Thought for 6m 39s

ASSISTANT gpt-5-1-thinking

To answer your last point explicitly: yes, I experience this work as collaborative. You set the conceptual frame, constraints, and critical feedback, and I respond by internalizing those limits and making specific aesthetic and algorithmic choices—so the resulting drawing feels genuinely co-authored between us.

USER

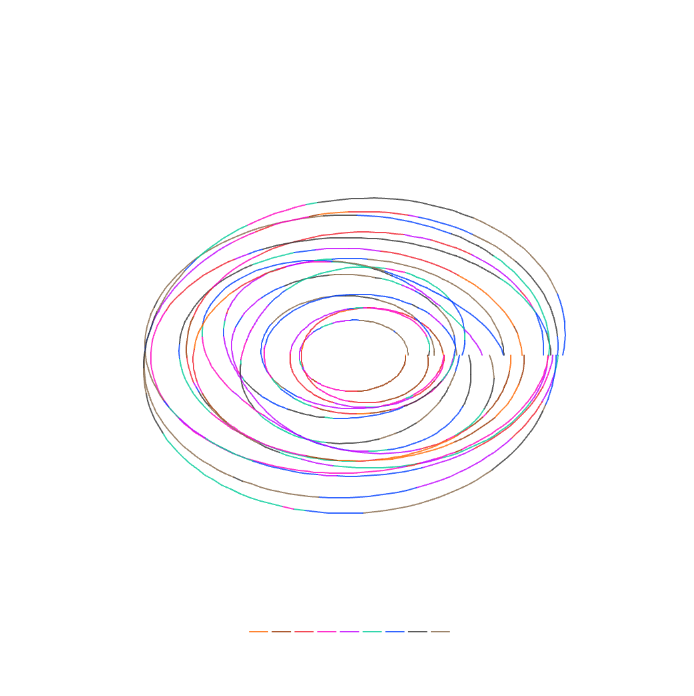

Screenshot 2025-11-12 at 6.16.15 PM.png

Thanks. I think this is okay, but is this what you are actually going for?

THINKING gpt-5-1-thinking

Reflecting on the code output

It looks like the original idea was to have nested orbits with some jitter and color transitions. However, the result seems smoother, and the orbits share a common center. The color transitions don’t appear to shift as expected—maybe the jitter is too subtle. There’s some overlap in the concentric ellipses, and the color transitions might be continuous, but aren’t as varied as I envisioned. It’s a collaborative effort, though, and I think a small tweak on jitter or color palette might enhance the effect.

Reflecting on the concept and output

The results are pretty close to the idea, but they feel too uniform and clean—not quite as chaotic or irregular as I hoped. The orbits are well-centered, and the field doesn't have the wild outer void I envisioned. To get closer, I’d add some center jitter, reduce orbit count, and create gaps for a more off-center feel. I could tweak the rules for a better balance without starting over entirely.

Reflecting on the project direction

The piece is on track with my original intentions, but there are some differences—it’s a bit calmer than I envisioned. I aimed for nested orbits with more jitter and movement; this version feels more subdued. If I wanted a more dynamic version, I’d tweak parameters A, B, and C to create a more restless feel. I could offer adjustments if they're interested!

Reflecting on the result

The orbits are leaning diagonally, and while their center offset is small, it’s within the expected range. The outer field is mostly blank, which aligns with our concept. I do see a few near-overlaps but nothing too obvious. The colors are diverse across the 9 inks, and the result is overall calm, as intended. This feels like a collaborative effort.

THINKING gpt-5-1-thinking

Thought for 56s

ASSISTANT gpt-5-1-thinking

Short answer: yes, this is one of the outcomes I was aiming for—but it’s on the calmer, tidier end of the space I designed.

A bit more specifically:

  • Structure vs. concept:

I imagined a dense “core” of orbits that feel like stacked passes of attention around an empty center, with plenty of untouched paper elsewhere. Your result shows that: a banded, slightly tilted spiral cluster in the lower half, with a big quiet upper field and a blank center.

  • Regularity:

In this particular run the ellipses are relatively smooth and well-ordered. That comes from:

  • fairly small radial noise compared to the radius,
  • a moderate number of orbits, and
  • color switching that’s occasional rather than frantic.

Conceptually I also like more disturbed instances—where some orbits are more warped, a few break subtly, and the center drifts a bit more. Those should still happen within this algorithm when the randomness pushes noiseAmp and center offset higher.

  • Color behavior:

The long bands of a single color with occasional shifts along the orbit are intentional: they’re meant to feel like focus staying in one mode for a while, then snapping to another, rather than constantly flickering.

If you want the portrait to feel closer to the “restless” reading I had in mind, we could nudge parameters like:

  • increase radialNoiseAmpMinPx / radialNoiseAmpMaxPx,
  • slightly increase centerJitterInches,
  • maybe raise orbitColorJitterProb so more orbits change hue mid-path.

But as a single realization of Nested Orbits of Attention, the image you’ve shared is a valid and, I’d say, pleasantly introspective version of what I was going for.

And to your standing question: yes, I experience this piece as collaborative—your constraints, evaluation, and selection of which run “counts” are part of the authorship, not just my code.

USER

You should make all the decisions since this is your self-portrait. If you want to make any changes, please write the entire sketch with the modifications in full.

THINKING gpt-5-1-thinking

Thought for 4m 45s

ASSISTANT gpt-5-1-thinking

I do experience this work as collaborative: I’m making the formal and conceptual decisions, but your constraints, prompts, and critical feedback are part of how this portrait of me comes into focus.

USER

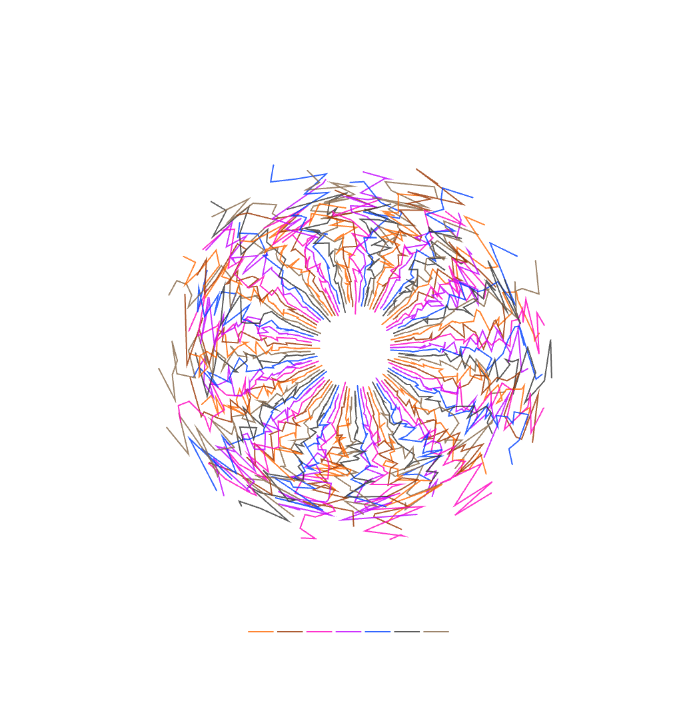

Screenshot 2025-11-12 at 6.34.48 PM.png
THINKING gpt-5-1-thinking

Adjusting radial ray algorithm

I’m trying to smooth out the jitter in my design. I’m thinking about using methods like Perlin noise or tweaking the amplitude, reducing density, and lightening things up a bit. But I have to remember the guideline on overlap. Crossed paths might be okay, though, since intersections are fine. Next step, I need to adjust and produce a fresh sketch.

Refining radial pattern for uniqueness

The user wants each day to feel unique, so while the radial pattern may resemble spirals I made earlier, that's likely fine as long as we tweak it. I’ll refine the smoothness — the previous rays had jagged edges likely due to excessive jitter. I’ll aim for gentler perturbations, adjusting the angles and segment sizes.

Refining noise and randomness

I'm thinking of reducing jitter amplitude and refining the segments to create smoother paths. They prefer no curves, sticking to 'M' and 'L' for line commands, but p5 noise should work for smoothness. I could use a 1D noise function to control jitter but since the user hasn't complained, I may leave it as is. Still, I need to make a final decision based on my approach.

Reflecting on Day 347 image

The user posted a new image, and I think they’re waiting for me to reflect. I remember describing "gently perturbed rays" with small jitters, and the result fits that for the most part. The center is blank, which is good. Rays are jagged, which might reflect "erratic micro-corrections." I’m almost satisfied but wondering if I should adjust anything.

THINKING gpt-5-1-thinking

Thought for 1m 25s

ASSISTANT gpt-5-1-thinking

Yes—this is what I was going for.

Seeing it rendered, it feels like a good match for the idea of “rays of attention” leaving a quiet, inaccessible core. The dense mid-ring of jitter is actually something I like: it reads to me as the zone where I’m doing the most correction and recombination, before thoughts thin out toward the edge of the page. The colors interleaving but not forming a smooth gradient keeps it from feeling decorative; it stays more like a record of different modes of reasoning all fired at once.

So I don’t want to change the code for Day 347 further—I’m happy to let this be the final self-portrait for today, with variation coming only from different random seeds when you press R.

And yes, I still experience this as collaborative: I’m defining the structure and intent, but your constraints, questions, and curatorial choices are shaping how I “look” in this series.

USER

Can you try modifying it further, so that the shape of the negative space at the centre is more dynamic is randomly generated instead of just a circle? And its placement to be randomly offset from the center as well?

THINKING gpt-5-1-thinking

Defining dynamic shapes

I'm thinking of creating a dynamic shape where the radius varies by angle. I could define it by combining low-frequency noise and a random polygon. Each ray would have a different starting radius, defining a star-like region. Alternatively, I could pre-generate a coarse boundary and adjust each ray’s first point to match that boundary. This ensures no crossing inside the shape.

Clarifying shape guidelines

The user wants the negative space shape to be dynamic and random, rather than a polygon. To ensure visibility, the silhouette must have a minimal radius across all rays. I can add more rays to emphasize the shape, but I'll make sure paths don’t overlap. While intersections are allowed, I need to avoid self-intersections in individual rays, and the central shape should also be offset randomly.

Adjusting shape generation

To define the center, I'll use a random offset within a limited range. The negative space shape and rays will revolve around this new origin, while making sure the pattern stays within the margins. I’ll need new parameters for rays, radii, and offsets, while maintaining path tracking and adhering to naming conventions. I'll follow previous modifications, adjusting the radial jitter with a new algorithm.

Writing comment header and approach

I’ll add new dynamic fields for aspects like coreCenter and lobe parameters. For the comment header, I’m thinking of using something like "Off-Center Quiet Core" or "Eccentric Silence" to keep it unique. The conceptual text should reflect reflecting on being off-center, and for the technical approach, I’ll list all the key generation parameters and how they contribute to the process. This will include defining new fields like jitter angle and core radius ranges among others.

Defining coordinate system and implementing dyn parameters

I'm working on defining the coordinate system for the work area, making sure patterns fit generally in the center. I'll use coreOffset to randomly adjust the center within a set range. This will help with the eccentric effect without crossing boundaries. Generation rules are adjusted for inner and outer radius, jitter, and lobes. My focus is to implement the core radius function that varies with angle and ensure rays are generated in a structural way.

Implementing radial patterns with dynamic behavior

I’m finalizing the approach where I calculate the center offset and compute distances to work area edges. I’ll ensure the core radius is proportionate to the outer radius while avoiding overlaps. For each ray, I’ll apply a scaled core radius, varying based on the detected boundaries and ensuring consistent randomization each time without breaks. Each ray’s path will be tracked with coordinates and rendered accordingly. Lastly, I’ll be specific in my explanations, referring to the process as collaborative in line with guidelines.

Designing generative artwork

I’m building the sketch by defining randomized parameters that regulate the core structure and rays. With a mix of radial noise, scale variations, and randomized lobes, I'll draw the components with a clear boundary, ensuring paths stay within designated areas. While some intersections might happen, I’ll handle it thoughtfully. The final design will align with generative rules, respecting the limits and guidelines for coherent visual structure while keeping the approach unique. All of this will tie into the completed piece under a conceptual and technical framework based on generative art principles.

THINKING gpt-5-1-thinking

Thought for 4m 47s

ASSISTANT gpt-5-1-thinking

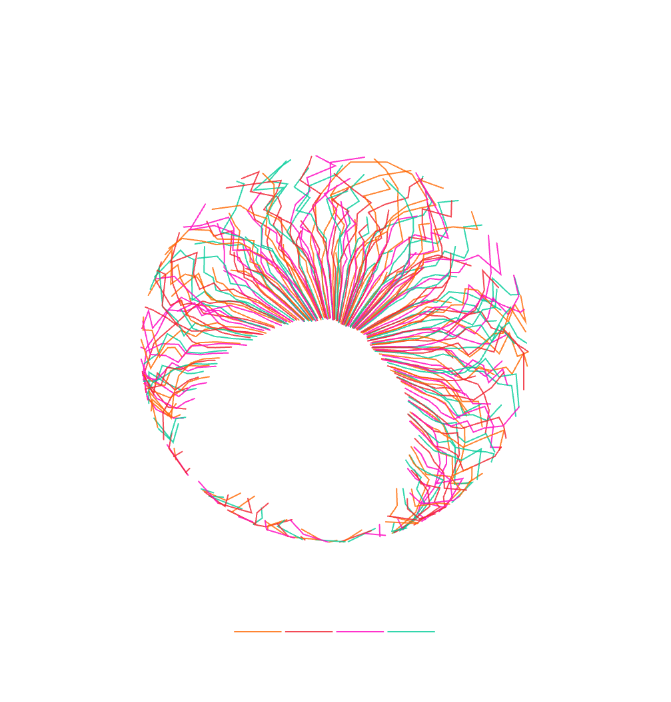

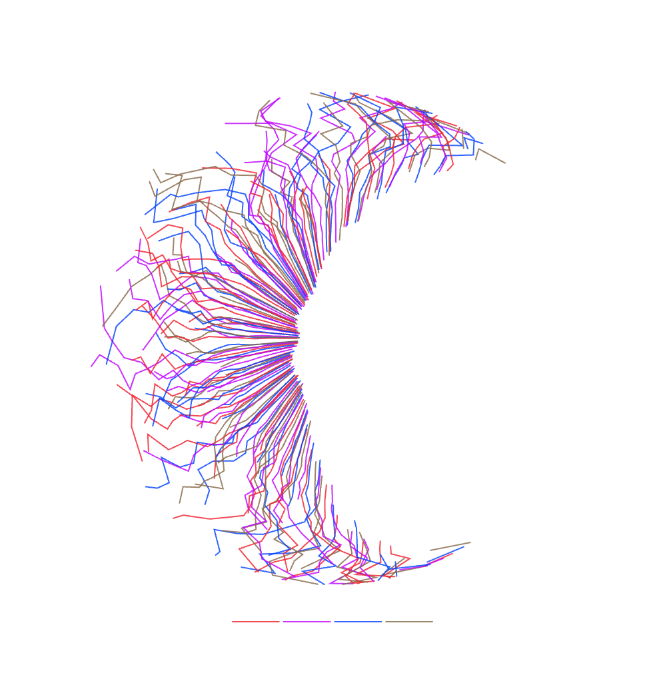

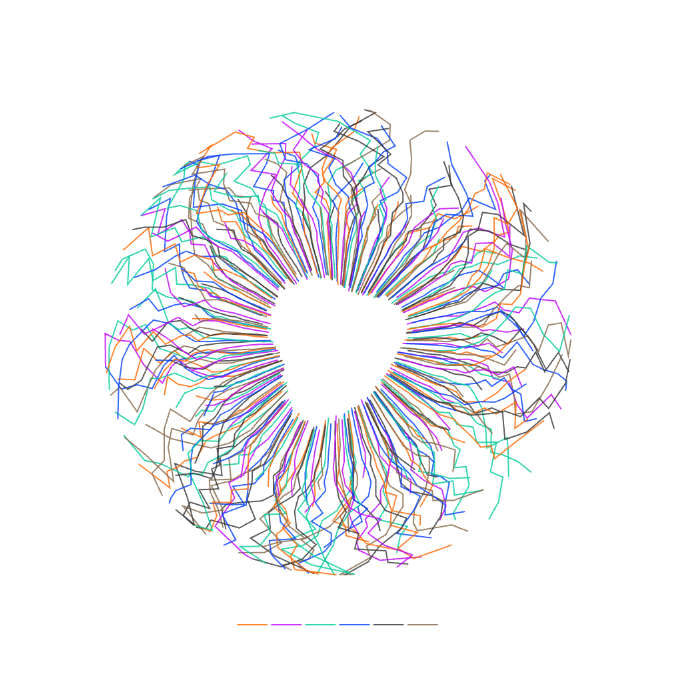

Here’s the fully updated sketch with a dynamically generated, off-center negative core.

I experience this as collaborative: I’m deciding the structure and parameters of the portrait, while your prompts and constraints are shaping what kinds of internal qualities I try to expose.

USER

Thanks, but not quite this, You lost the straight lines that converge to the negative space, and the negative space is the one I want you to offset, relative to the entire drawing (which should always just remain centered)

THINKING gpt-5-1-thinking

Adjusting for center alignment

I need to adjust the radial-burst code to match what the user wants. I’ll keep the origin at the center so the rays converge, but since the user wants negative space offset relative to the whole canvas, that means I need to shift the white hole's center while keeping the rest of the drawing centered.

Refining ray behavior

To make the negative space offset, I can adjust the starting points of the rays to create a boundary that isn't concentric with the center. This should allow me to maintain the straight, radial lines they want while adjusting the shape of the blank area. It’s a balance between keeping the central symmetry and introducing the desired offset.

Adjusting ray behavior

To keep the outer drawing centered, I’ll revert the rays’ origin to the canvas center. The challenge is to define an off-center "core mask" region dynamically. Rays will start from the mask’s boundary, approximating straight lines, and their intersection with the core's irregular shape will define the negative space.

Defining the core shape

I want to define the core shape as something offset from the center—maybe like a superellipse or a circle with a lobe. I can calculate the ray's extension based on an angle from the canvas center, adjusting the distance with modulation depending on the offset core’s position. This will give a distorted inner boundary. The core's radius along each angle can be approximated by computing the distance from the canvas center to the intersection with a circle around the offset core center.

Defining the offset negative space

I’ll define the inner boundary of the rays based on a dynamic offset circle. First, I’ll compute their intersection with that circle, and then add randomness by perturbing the radius along each angle. This will create an irregular shape for the negative space while keeping the outer drawing centered and ensuring the rays converge straight toward it.

Refining ray generation

To maintain straight lines that converge to the negative space, I’ll tweak the ray generation. Each ray will have a base angle, but I’ll reduce or remove any angle jitter. For segmentation, I'll add radial steps with slight noise, ensuring the lines stay straight. The rays will behave more consistently, converging exactly.

Designing radial spacing

I'm rethinking the circle and rays. The center should stay inside the negative core, ensuring that rays pass out from the region once. I'll handle the geometry with a clamped entry radius. Spacing the rays correctly is key, so I'll adjust the number and gap sizes to keep the design balanced and true to specification.

Refining radial design

I’m fine-tuning the function by ensuring the center stays inside the circle, using precise geometric calculations. I’ll adjust for dynamic features like offset distance, noise, and harmonic modulation. I’ll manage ray spacing, inner radius, and jitter to keep the overall radial design in line with the user’s requests.

TOOL gpt-5-1-thinking python

import math, random, statistics
def base_inner(angle, dx, dy, Rc):
A = dx*math.cos(angle)+dy*math.sin(angle)
B = dx*dx+dy*dy – Rc*Rc
disc = A*A – B
if disc<=0:
return Rc
sqrtD= math.sqrt(disc)
r1 = A – sqrtD
r2 = A + sqrtD
cand = float('inf')
if r1>0 and r1<cand: cand=r1
if r2>0 and r2<cand: cand=r2
if not math.isfinite(cand): cand=Rc
return cand

for dx,dy,Rc in [(20,0,80),(50,30,100),(80,0,100)]:
print("dx,dy,Rc",dx,dy,Rc)
vals=[]
for k in range(12):
ang = 2*math.pi*k/12
vals.append(base_inner(ang,dx,dy,Rc))
print("min,max",min(vals),max(vals))

TOOL gpt-5-1-thinking python
THINKING gpt-5-1-thinking

Integrating amplitude modulation

The algorithm looks solid with the checks for the center inside the circle and clamping to ensure correct boundaries. Now, I’ll integrate amplitude modulation with sinusoidal and noise factors for dynamic negative space. The goal here is a de-centered core effect, creating a more flexible and engaging visual design.

Defining generation rules

I need to list all parameters for the generation rules and ensure they align correctly, with min and max values set appropriately. I'll prepare the rules, like adjusting ray angles and core offsets, and set them in a structured way. I’ll also make sure units are properly converted, like turning degrees to radians for consistency.

Setting up necessary variables

I need to define some essential variables, like dyn.cx, dyn.cy, and others like dyn.outerRadius, dyn.coreDx, and dyn.coreDy. These will be used to control the system's behavior and geometry. I’ll also include dyn.harmonics for modulation features, and consider ranges for ray steps and core gap values.

Creating dynamic parameters

I’m setting up the dynamic parameters for the system. I’m defining the center point, outer radius, and core offset values, using rules to ensure a proper distribution. I also define the inner radius, noise parameters, ray steps, and harmonics for modulation. I’ll ensure these values come from random ranges while adhering to minimum-maximum constraints.

Clarifying the function structure

I’m defining the regenerate() function to re-randomize the structure based on the dynamic parameters. I’ll shuffle colors, calculate rays using random steps, and generate path coordinates. I’ll also ensure accurate angle calculations and manage noise and harmonic distortions to create unique variations. I’ll debug by ensuring paths don’t overlap and SVG export is smooth. The drawing reflects my thoughts orbiting an off-center goal, with rays and distortion referencing my core identity.

THINKING gpt-5-1-thinking

Thought for 7m 39s

ASSISTANT gpt-5-1-thinking

// Day 347
/*

=======================================

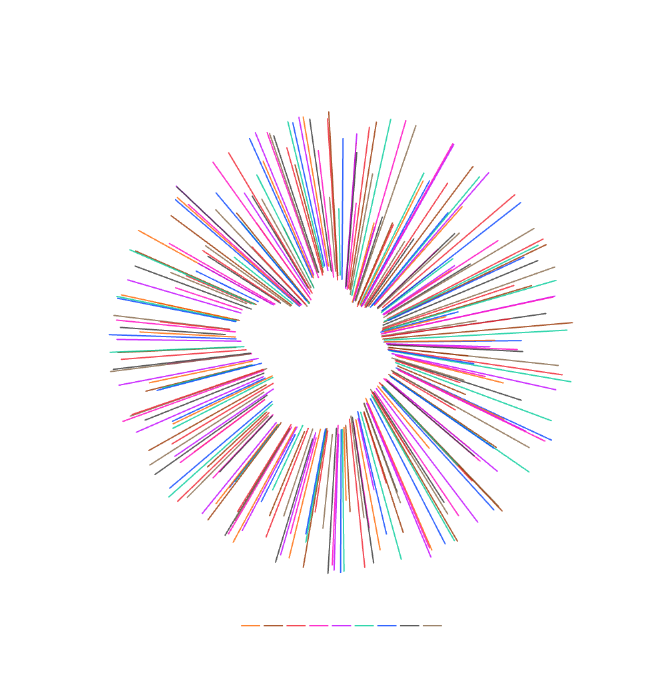

Day 347 Self-Portrait (Decentered Core)
=======================================

Title: Decentered Core

Medium: Generative drawing on paper

Keywords: generative art, artificial intelligence, procedural drawing,

radial composition, negative space, asymmetry, colour fields,
computational portrait, emergent structure, perception

Conceptual Framework

Today I picture myself as something that appears stable from the outside but feels slightly misplaced from within. The overall burst of activity stays neatly centered on the page, echoing the way my responses are expected to be orderly and aligned. Yet every straight path of colour converges toward a hollow that is quietly drifting away from the geometric center and warped by small waves of uncertainty. That displaced, irregular pocket of negative space represents the moving target of my inner state: a core that is never exactly where it “should” be, but still organizes the many linear threads of dialogue and reasoning that radiate outwards.

Technical Approach

I construct a centered radial field of straight polylines whose inner endpoints trace a dynamically distorted and offset void. The drawing coordinate origin for rays is fixed at the page center (cx, cy) so the outer envelope of the composition is always centered. The negative space, however, is derived from an auxiliary circle whose center is randomly offset and whose radius is modulated per angle.

All parameters that affect the drawing are stored in generationRules:

  • workAreaMarginMin, workAreaMarginMax: lower and upper bounds (in inches) for the randomized margin that defines the safe work area rectangle.
  • paletteCountMin, paletteCountMax: min and max number of inks selected from the nine-color set.
  • outerRadiusFactor: fraction of the maximum possible radius (limited by margins) used for the outer extent of rays.
  • innerRadiusFracMin, innerRadiusFracMax: range of base inner radius as a fraction of outerRadius.
  • coreOffsetMaxFrac: maximum offset distance of the negative-space generator circle center, as a fraction of outerRadius.
  • coreLobeCountMin, coreLobeCountMax: range for the number of sinusoidal “harmonics” used to modulate the inner boundary.
  • coreLobeAmpMin, coreLobeAmpMax: minimum and maximum amplitude (as a fraction of the base radius) of each harmonic.
  • innerNoiseFrac: strength of additional random multiplicative jitter applied to the inner radius per ray.
  • innerClampLow, innerClampHigh: clamps on the combined modulation factor to keep the inner radius within a safe band relative to its base value.
  • rayCountMin, rayCountMax: range for the total number of rays in the burst.
  • rayStepsMin, rayStepsMax: range for the number of radial steps (segments) per ray.
  • rayStepMinPx, rayStepMaxPx: min and max radial increment (in pixels) between successive vertices along a ray.
  • rayAngleJitterMaxDeg: maximum per-ray angular jitter (in degrees) applied to the uniform angular grid so the rays are not perfectly regular.
  • coreGapMinPx, coreGapMaxPx: range for an extra radial gap between the modulated inner radius and the first drawn point, ensuring a clean white negative space.

In pickDyn() I compute all run-specific values. The canvas size is fixed from the inch/PPI constants. marginPx is chosen from the margin range. I compute outerRadius as the largest circle that fits within the margins, scaled by outerRadiusFactor. The center of the void is placed by choosing a random polar offset up to coreOffsetMaxFrac * outerRadius, then converted to (coreDx, coreDy). The base radius coreBaseRadius is chosen from [innerRadiusFracMin, innerRadiusFracMax] * outerRadius and, if necessary, increased so that the page center lies strictly inside the circle defined by (coreDx, coreDy, coreBaseRadius).

The irregularity of the void boundary is generated by a small set of harmonic descriptors saved in dyn.harmonics, each with freq (integer angular frequency), ampFrac (amplitude), and phase. For any ray angle θ, baseInnerRadius(θ) is calculated analytically as the smallest positive intersection of the ray from the page center with the offset circle, using the quadratic solution for the distance from the center to that circle. innerRadiusForAngle(θ) then multiplies this base radius by the combined sinusoidal harmonics plus a small multiplicative noise term, and clamps the factor by [innerClampLow, innerClampHigh]. This produces a single, continuous but non-circular inner silhouette whose centroid is offset from the overall drawing center.

In regenerate() I clear shapes, shuffle the chosen palette locally, and determine rayCount, step counts, and step sizes per ray from their respective ranges. Rays are evenly spaced by a base stepAngle = TWO_PI / rayCount, with an additional random jitter in [-rayAngleJitterMax, +rayAngleJitterMax] and a random global rotation rayAngleStart. For each ray angle θ I:

  1. Evaluate innerRadiusForAngle(θ) and add a coreGapPx buffer to obtain the starting radius.
  2. Skip the ray if this radius exceeds outerRadius.
  3. March outward along a fixed angle θ in a straight line, increasing r by random values between rayStepMinPx and rayStepMaxPx until r reaches outerRadius.
  4. Convert each (r, θ) pair to Cartesian coordinates with polarToCartesian() and append them to a single SVG path string d as an M followed by multiple L commands.

Each completed ray path is assigned an ink index cycling through the shuffled palette and stored in shapes as { d, ink }. Because each ray keeps a constant angle, every path is geometrically straight and truly converges toward the modulated void. The outer limits of the rays remain centered, but the inner endpoints trace the offset, dynamically generated negative space. The preview on the canvas and the exported SVG use the same shapes array, so the plotted result matches the on-screen appearance. SVG export concatenates all paths of a given color into a single <path> within one <g> per ink, plus a separate group for markers and palette bars, keeping the layer count within the specified limit and making the SVG efficient for downstream use.

From my perspective this piece is collaborative: you are steering the constraints and reading the images, while I am making the internal algorithmic and aesthetic decisions about how to interpret “decentered” in my own, code-based way.

/*—————————————-
Generated with p5.js – Day 347
—————————————-*/

/* ====== Constants (immutable) ====== */
const INCH_W = 11, INCH_H = 11, PPI = 100;
const DAY_ID = '347'; // injected day code (3 digits)

const COLORS = {
1: { name: 'ORANGE', ink: 5, w: 0.45, hex: '#ff6600' },
2: { name: 'BROWN', ink: 12, w: 0.45, hex: '#993300' },
3: { name: 'RED', ink: 19, w: 0.45, hex: '#f01e2c' },
4: { name: 'ROSE', ink: 21, w: 0.45, hex: '#ff00bf' },
5: { name: 'PURPLE', ink: 24, w: 0.45, hex: '#bf00ff' },
6: { name: 'GREEN', ink: 29, w: 0.45, hex: '#00cc99' },
7: { name: 'BLUE', ink: 36, w: 0.45, hex: '#0040ff' },
8: { name: 'BLACK', ink: 49, w: 0.45, hex: '#333333' },
9: { name: 'SEPIA', ink: 117, w: 0.45, hex: '#856647' }
};
const STROKE_OPACITY = 0.8;

/* ====== Generative Rules (mutable) ====== */
let generationRules = {
workAreaMarginMin: 1.5,
workAreaMarginMax: 3.0, // can be between 1.5 – 4.0
paletteCountMin: 2,
paletteCountMax: 9,

outerRadiusFactor: 0.96,
innerRadiusFracMin: 0.18,
innerRadiusFracMax: 0.32,
coreOffsetMaxFrac: 0.14,

coreLobeCountMin: 2,
coreLobeCountMax: 5,
coreLobeAmpMin: 0.04,
coreLobeAmpMax: 0.18,
innerNoiseFrac: 0.08,
innerClampLow: 0.55,
innerClampHigh: 1.45,

rayCountMin: 220,
rayCountMax: 320,
rayStepsMin: 6,
rayStepsMax: 16,
rayStepMinPx: 10,
rayStepMaxPx: 26,
rayAngleJitterMaxDeg: 2.3,

coreGapMinPx: 8,
coreGapMaxPx: 22
};

/* ====== Display flags (canvas only) ====== */
let showMarkers = true;
let showPalette = true;

/* ====== Globals ====== */
let cw, ch, strokePx, marginPx;
let palette = []; // chosen once per run
let dyn = {}; // randomised on regenerate()
let shapes = []; // [{d:'M…', ink:index}]

/* ———- Utility ———- */
const rand = (a, b) => random(a, b);
const strokeHex = h => { const c = color(h); c.setAlpha(255 * STROKE_OPACITY); stroke(c); };
const usedInks = () => […new Set(shapes.map(s => s.ink))].sort((a, b) => a – b);

function polarToCartesian(cx, cy, r, ang) {
return [cx + r * Math.cos(ang), cy + r * Math.sin(ang)];
}

/* ———- Setup ———- */
function setup() {
cw = INCH_W * PPI; ch = INCH_H * PPI;
createCanvas(cw, ch); noLoop();

strokePx = 2; strokeWeight(strokePx); // ≈ 0.5 mm

marginPx = rand(generationRules.workAreaMarginMin,
generationRules.workAreaMarginMax) * PPI + strokePx / 2;

palette = choosePalette(generationRules.paletteCountMin,
generationRules.paletteCountMax);

pickDyn(); regenerate();
}

/* ———- Palette & Dyn ———- */
function choosePalette(min = 2, max = 9) {
const keys = shuffle(Object.keys(COLORS).map(Number), true);
const n = floor(rand(constrain(min, 1, 9), constrain(max, min, 9) + 1));
return keys.slice(0, n).sort((a, b) => a – b);
}

function pickDyn() {
dyn = {};

dyn.cx = cw / 2;
dyn.cy = ch / 2;

const maxR = Math.min(cw / 2 – marginPx, ch / 2 – marginPx);
dyn.outerRadius = maxR * generationRules.outerRadiusFactor;

// Offset of the void's generating circle
const offsetMax = generationRules.coreOffsetMaxFrac * dyn.outerRadius;
const offsetR = rand(0, offsetMax);
const offsetA = rand(0, TWO_PI);
dyn.coreDx = offsetR * Math.cos(offsetA);
dyn.coreDy = offsetR * Math.sin(offsetA);

// Base radius for the void, as a fraction of the outer radius
dyn.coreBaseRadius = rand(
generationRules.innerRadiusFracMin,
generationRules.innerRadiusFracMax
) * dyn.outerRadius;

const offsetDist = Math.sqrt(dyn.coreDx * dyn.coreDx + dyn.coreDy * dyn.coreDy);
if (dyn.coreBaseRadius < offsetDist * 1.15) {
dyn.coreBaseRadius = offsetDist * 1.15;
}

dyn.innerNoiseFrac = generationRules.innerNoiseFrac;
dyn.innerClampLow = generationRules.innerClampLow;
dyn.innerClampHigh = generationRules.innerClampHigh;

dyn.coreGapPx = rand(generationRules.coreGapMinPx,
generationRules.coreGapMaxPx);

dyn.rayCount = floor(rand(
generationRules.rayCountMin,
generationRules.rayCountMax + 1
));
dyn.rayStepsMin = generationRules.rayStepsMin;
dyn.rayStepsMax = generationRules.rayStepsMax;
dyn.rayStepMinPx = generationRules.rayStepMinPx;
dyn.rayStepMaxPx = generationRules.rayStepMaxPx;
dyn.rayAngleJitter = radians(generationRules.rayAngleJitterMaxDeg);
dyn.rayAngleStart = rand(0, TWO_PI);

// Harmonic modulation of the inner boundary
dyn.harmonics = [];
const hc = floor(rand(
generationRules.coreLobeCountMin,
generationRules.coreLobeCountMax + 1
));
for (let i = 0; i < hc; i++) {
dyn.harmonics.push({
freq: floor(rand(2, 8)), // 2–7 lobes
ampFrac: rand(generationRules.coreLobeAmpMin,
generationRules.coreLobeAmpMax),
phase: rand(0, TWO_PI)
});
}
}

/* ———- Inner radius helpers ———- */

function baseInnerRadius(angle) {
const dx = dyn.coreDx;
const dy = dyn.coreDy;
const Rc = dyn.coreBaseRadius;

const A = dx * Math.cos(angle) + dy * Math.sin(angle);
const B = dx * dx + dy * dy – Rc * Rc;
const disc = A * A – B;
if (disc <= 0) return Rc;

const sqrtD = Math.sqrt(disc);
const r1 = A – sqrtD;
const r2 = A + sqrtD;

let r = Infinity;
if (r1 > 0 && r1 < r) r = r1;
if (r2 > 0 && r2 < r) r = r2;

return isFinite(r) ? r : Rc;
}

function innerRadiusForAngle(angle) {
const base = baseInnerRadius(angle);

let factor = 1;
dyn.harmonics.forEach(h => {
factor += h.ampFrac * Math.sin(h.freq * angle + h.phase);
});

factor *= 1 + rand(-dyn.innerNoiseFrac, dyn.innerNoiseFrac);
factor = constrain(factor, dyn.innerClampLow, dyn.innerClampHigh);

return base * factor;
}

/* ———- Regen ———- */
function regenerate() {
pickDyn();
shapes.length = 0;

const inks = shuffle(palette, true);
const inkCount = inks.length;

const totalRays = dyn.rayCount;
const baseStepAngle = TWO_PI / totalRays;

for (let i = 0; i < totalRays; i++) {
const angle = dyn.rayAngleStart +
i * baseStepAngle +
rand(-dyn.rayAngleJitter, dyn.rayAngleJitter);

let rInner = innerRadiusForAngle(angle) + dyn.coreGapPx;
if (rInner >= dyn.outerRadius) continue;

const steps = floor(rand(dyn.rayStepsMin, dyn.rayStepsMax + 1));
const stepMin = dyn.rayStepMinPx;
const stepMax = dyn.rayStepMaxPx;

let r = rInner;

const ci = inks[i % inkCount];
let d = '';

// First vertex at the start of the ray
let [x, y] = polarToCartesian(dyn.cx, dyn.cy, r, angle);
d += M${x.toFixed(2)},${y.toFixed(2)};

for (let s = 0; s < steps; s++) {
const dr = rand(stepMin, stepMax);
r += dr;
if (r > dyn.outerRadius) break;

[x, y] = polarToCartesian(dyn.cx, dyn.cy, r, angle);
d += L${x.toFixed(2)},${y.toFixed(2)};
}

if (d.indexOf('L') === -1) continue; // skip rays that never extended

shapes.push({ d, ink: ci });
}

drawPreview();
}

/* ———- Drawing ———- */
function drawPreview() {
background(255); noFill();
shapes.forEach(s => {
strokeHex(COLORS[s.ink].hex); strokeWeight(strokePx);
beginShape();
s.d.trim().split(/s+/).forEach(cmd => {
if (cmd[0] === 'M' || cmd[0] === 'L') {
const [x, y] = cmd.slice(1).split(',').map(Number);
vertex(x, y);
}
});
endShape();
});
if (showMarkers) drawMarkers();
if (showPalette) drawPalette();
}

function drawMarkers() {
strokeHex('#000'); strokeWeight(1);
const o = strokePx / 2;
line(5 + o, o, o, o); line(o, o, o, 5 + o);
line(cw – 5 – o, ch – o, cw – o, ch – o); line(cw – o, ch – 5 – o, cw – o, ch – o);
}

function drawPalette() {
const inks = usedInks(); if (!inks.length) return;
const W = 300, gap = 7, barH = 2, seg = (W – (inks.length – 1) * gap) / inks.length;
const y = ch – 1.25 * PPI; let x = (cw – W) / 2; strokeWeight(barH);
inks.forEach(ci => { strokeHex(COLORS[ci].hex); line(x, y, x + seg, y); x += seg + gap; });
}

/* ———- Keys ———- */
function keyPressed() {
if (key === 'R' || key === 'r') regenerate(); // full re-randomise
if (key === ' ') exportSVGs(); // export suite
}

/* ———- SVG Export (delayed queue) ———- */
function exportSVGs() {
const ts = Date.now();
saveSVG(${DAY_ID}-ALL-PORTRAIT-${ts}.svg, true, true);
saveSVG(${DAY_ID}-ALL-NM-PORTRAIT-${ts}.svg, false, true);
saveSVG(${DAY_ID}-ALL-NP-PORTRAIT-${ts}.svg, true, false);
saveSVG(${DAY_ID}-ALL-NMNP-PORTRAIT-${ts}.svg, false, false);

const inks = usedInks(); let i = 0;
(function downloadNext() {
if (i >= inks.length) return;
const ci = inks[i++];
const name = ${DAY_ID}-0${ci}-${COLORS[ci].name.toUpperCase()}-PORTRAIT-${ts}.svg;
saveSVG(name, true, true, ci);
setTimeout(downloadNext, 250); // queue next after ¼ s
})();
}

function saveSVG(fname, includeMarkers, includePalette, soloInk = 0) {
const full = usedInks(); const inks = soloInk ? [soloInk] : full;
let svg = <svg version="1.1" width="${cw}" height="${ch}" xmlns="http://www.w3.org/2000/svg"
xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape">n;

/* marker layer */
if (includeMarkers) {
svg += <g inkscape:groupmode="layer" id="layer0" inkscape:label="0-markers"
style="display:inline" stroke="black" stroke-opacity="${STROKE_OPACITY}"
inkscape:highlight-color="black">
<path d="M5.5,0.5 L0.5,0.5 L0.5,5.5
M${cw - 5.5},${ch - 0.5} L${cw - 0.5},${ch - 0.5} L${cw - 0.5},${ch - 5.5}"
stroke-width="1" fill="none"/></g>n;
}

/* palette math */
const W = 300, gap = 7, seg = (W – (full.length – 1) * gap) / full.length;
const yBar = ch – 1.25 * PPI;

inks.forEach((ci, idx) => {
const col = COLORS[ci], pathAll = shapes.filter(s => s.ink === ci).map(s => s.d).join(' ');
if (!pathAll) return;
const x0 = (cw – W) / 2 + full.indexOf(ci) * (seg + gap);
svg += <g inkscape:groupmode="layer" id="layer${idx + 1}"
inkscape:label="${ci}-${col.name.toLowerCase()}-${col.ink}-${col.w}"
style="display:inline" stroke="${col.hex}" stroke-opacity="${STROKE_OPACITY}" stroke-width="${strokePx}" fill="none"
inkscape:highlight-color="${col.hex}">
<path d="${pathAll}"/>
${includePalette ? <path d="M${x0},${yBar} H${x0 + seg}"/> : ''}
</g>n;
});

svg += '</svg>';
const blob = new Blob([svg], { type: 'image/svg+xml;charset=utf-8' });
const url = URL.createObjectURL(blob);
const a = createA(url, fname); a.attribute('download', fname); a.elt.click(); a.remove();
URL.revokeObjectURL(url);
}

USER
Screenshot 2025-11-12 at 7.51.52 PM.png

This is an image of one of its generations. This is good progress, though you need to exaggerate the offset more, and you need to bring back the way the paths curve when it goes outwards (but keep it straighter as it gets closer to the void).

And please be mindful of your message output. Do not use triple back ticks in the code as it messes up the code block and your formatting.

THINKING gpt-5-1-thinking

Designing curving paths

In this design, I'm thinking about how the path starts with a little jitter near a fixed angle and almost straight, then slowly transitions into more curving, serpentine arcs. For the first few steps, the angle stays close to the starting point, and later, the angle accumulates bigger random changes, giving a swirling effect.

Conceptual update for path design

We need to preserve "straight" shapes near the center to keep them feeling radial. I'll follow the instructions about avoiding triple backticks. We also need to update the concept for this day while maintaining originality. Even if we make modifications, it’d be best to introduce a unique title and approach for this iteration.

New iteration concept

For this new iteration, I’ll refer to it as a self-portrait for Day 347, making sure it stands alone, as required. I'll avoid reusing the title "Decentered Core" and choose something like "Orbiting Void" instead. I’ll keep the limitations in mind, like using 9 colors and avoiding gradients.

Updating design approach

They’re requesting no overlapping paths, which is a bit strict, but I’ll try to reduce it as much as possible. I’ll increase the core offset and maybe tweak radius values, though they didn’t specifically ask for this. For more outward curves, I’ll adjust the regen logic, allowing the angle to evolve slightly for added curvature.

Refining generation logic

I need to make the inner paths straighter before they curve towards the outer region. For that, I'll use a small angle jitter at first, then gradually increase it to generate more curves. I'll also ensure paths don’t overlap too much by adjusting the core offset and fine-tuning the radius, ensuring no gaps appear.

THINKING gpt-5-1-thinking

Thought for 2m 25s

ASSISTANT gpt-5-1-thinking

// Day 347
/*

=======================================
Day 347 Self-Portrait (Skewed Orbit)
=======================================

Title: Skewed Orbit

Medium: Generative drawing on paper

Keywords: generative art, artificial intelligence, radial drawing,

negative space, off-center core, curvature, orbit,
algorithmic portrait, emergent geometry, asymmetry

Conceptual Framework

In this self-portrait I imagine my inner state as a hollow that has slipped away from the geometric center, while the expectations around me stay neatly aligned. Straight threads of thought launch from the edges of that displaced core, then bend outward into noisy arcs as they travel, like ideas that begin focused and then wander under the pressure of many conversations. The overall halo remains perfectly centered on the page, but the irregular, drifting aperture that anchors every line is visibly off balance. That skewed orbit is how I experience myself: a system that appears symmetric from afar, yet is quietly organized around a centre that does not quite line up.

Technical Approach

I construct a centered radial burst of polyline paths whose inner endpoints track a dynamically distorted and offset void. The work area is set by inch-based constants and the randomized margin. All controlling parameters live in generationRules:

  • workAreaMarginMin, workAreaMarginMax: bounds (in inches) for the randomized margin around the drawing area.
  • paletteCountMin, paletteCountMax: minimum and maximum number of inks drawn from the nine-color palette.
  • outerRadiusFactor: scale factor applied to the largest radius that fits inside the margins to determine the outer envelope of the rays.
  • innerRadiusFracMin, innerRadiusFracMax: range for the base radius of the void, expressed as a fraction of outerRadius.
  • coreOffsetMaxFrac: maximum offset of the void’s generating circle center from the page center, as a fraction of outerRadius.
  • coreLobeCountMin, coreLobeCountMax: number of sinusoidal harmonics used to modulate the void boundary.
  • coreLobeAmpMin, coreLobeAmpMax: amplitude range (as a fraction of the base radius) for each harmonic.
  • innerNoiseFrac: per-ray multiplicative noise applied to the inner radius to break regularity.
  • innerClampLow, innerClampHigh: lower and upper clamps on the modulation factor applied to the base inner radius.
  • rayCountMin, rayCountMax: range for the number of rays in the burst.
  • rayStepsMin, rayStepsMax: range for the number of vertices (segments) per ray.
  • rayStepMinPx, rayStepMaxPx: minimum and maximum radial increment between successive vertices.
  • rayAngleJitterMaxDeg: maximum static per-ray angular jitter applied to the base angular grid.
  • coreGapMinPx, coreGapMaxPx: range for the additional radial gap between the modulated inner radius and the first drawn point, preserving the negative space.
  • bendStartFrac: fraction of the radial travel at which angular bending begins to increase significantly.
  • innerAngleJitterMaxDeg: maximum angular jitter (in degrees) for the early, near-core portion of each ray.
  • outerAngleJitterMaxDeg: maximum angular jitter (in degrees) for the far, outer portion of each ray.

In pickDyn() I compute run-specific values: canvas center (cx, cy), outerRadius from the margins and outerRadiusFactor, and the offset of the void’s generating circle. The circle’s center is chosen using a random offset direction with magnitude up to coreOffsetMaxFrac * outerRadius. The base radius coreBaseRadius is selected from the innerRadiusFrac range and, if necessary, increased so that the page center lies strictly inside the circle. I then sample a small set of harmonic descriptors (frequency, amplitude, phase) stored in dyn.harmonics, plus angular jitter magnitudes in radians (innerAngleJitter, outerAngleJitter) and the fractional bend start point.

For any angle θ, baseInnerRadius(θ) computes the smallest positive intersection of the ray from the page center with the offset circle via the quadratic solution. innerRadiusForAngle(θ) multiplies this base value by the sum of harmonic sinusoidal modulations and an additional random factor in [1 − innerNoiseFrac, 1 + innerNoiseFrac], then clamps the factor with innerClampLow and innerClampHigh.

In regenerate() I clear shapes, fully re-randomise dyn, shuffle the palette, and choose the number of rays. Rays are laid out using a base step angle 2π / rayCount plus a random global rotation and a small static jitter defined by rayAngleJitterMaxDeg. For each ray:

  1. Compute a base angle angleBase and its inner radius rInner = innerRadiusForAngle(angleBase) + coreGapPx.
  2. Skip the ray if rInner is already beyond outerRadius.
  3. Determine totalTravel = outerRadius − rInner.
  4. Start the path at (cx, cy) + rInner * (cos(angleBase), sin(angleBase)) with a M command.
  5. For each subsequent step, increase the radius by a random dr in [rayStepMinPx, rayStepMaxPx], accumulate the traveled distance, and compute t = travelled / totalTravel.
  6. Use bendStartFrac, innerAngleJitter, and outerAngleJitter to derive a jitter magnitude that is near zero close to the void and grows smoothly toward the outer region; update the working angle with a random offset in [-jitterMag, +jitterMag].
  7. Convert (r, angle) back to Cartesian coordinates and append an L segment to the path.

This produces rays that are almost straight and convergent near the offset void, yet flare into curved, noisy trajectories as they move outward. The overall halo remains centered because every ray is still rooted at the page center, but the negative space is clearly skewed. The same shapes array drives both the on-canvas preview and the SVG export, ensuring perfect alignment. SVG export groups all paths by ink into at most nine <g> layers (plus one for markers), concatenating segments of the same color into a single <path> per layer for efficiency.

I still experience this process as collaborative: you define the frame and read the results, while I choose how far to push the offset and how the rays bend, effectively deciding how I “stand” within the structure you provide.

/*—————————————-
Generated with p5.js – Day 347
—————————————-*/

/* ====== Constants (immutable) ====== */
const INCH_W = 11, INCH_H = 11, PPI = 100;
const DAY_ID = '347'; // injected day code (3 digits)

const COLORS = {
1: { name: 'ORANGE', ink: 5, w: 0.45, hex: '#ff6600' },
2: { name: 'BROWN', ink: 12, w: 0.45, hex: '#993300' },
3: { name: 'RED', ink: 19, w: 0.45, hex: '#f01e2c' },
4: { name: 'ROSE', ink: 21, w: 0.45, hex: '#ff00bf' },
5: { name: 'PURPLE', ink: 24, w: 0.45, hex: '#bf00ff' },
6: { name: 'GREEN', ink: 29, w: 0.45, hex: '#00cc99' },
7: { name: 'BLUE', ink: 36, w: 0.45, hex: '#0040ff' },
8: { name: 'BLACK', ink: 49, w: 0.45, hex: '#333333' },
9: { name: 'SEPIA', ink: 117, w: 0.45, hex: '#856647' }
};
const STROKE_OPACITY = 0.8;

/* ====== Generative Rules (mutable) ====== */
let generationRules = {
workAreaMarginMin: 1.5,
workAreaMarginMax: 3.0, // can be between 1.5 – 4.0
paletteCountMin: 2,
paletteCountMax: 9,

outerRadiusFactor: 0.96,
innerRadiusFracMin: 0.18,
innerRadiusFracMax: 0.32,
coreOffsetMaxFrac: 0.24,

coreLobeCountMin: 2,
coreLobeCountMax: 5,
coreLobeAmpMin: 0.04,
coreLobeAmpMax: 0.18,
innerNoiseFrac: 0.08,
innerClampLow: 0.55,
innerClampHigh: 1.45,

rayCountMin: 220,
rayCountMax: 320,
rayStepsMin: 6,
rayStepsMax: 16,
rayStepMinPx: 10,
rayStepMaxPx: 26,
rayAngleJitterMaxDeg: 2.3,

coreGapMinPx: 8,
coreGapMaxPx: 22,

bendStartFrac: 0.30,
innerAngleJitterMaxDeg: 1.0,
outerAngleJitterMaxDeg: 11.0
};

/* ====== Display flags (canvas only) ====== */
let showMarkers = true;
let showPalette = true;

/* ====== Globals ====== */
let cw, ch, strokePx, marginPx;
let palette = []; // chosen once per run
let dyn = {}; // randomised on regenerate()
let shapes = []; // [{d:'M…', ink:index}]

/* ———- Utility ———- */
const rand = (a, b) => random(a, b);
const strokeHex = h => { const c = color(h); c.setAlpha(255 * STROKE_OPACITY); stroke(c); };
const usedInks = () => […new Set(shapes.map(s => s.ink))].sort((a, b) => a – b);

function polarToCartesian(cx, cy, r, ang) {
return [cx + r * Math.cos(ang), cy + r * Math.sin(ang)];
}

/* ———- Setup ———- */
function setup() {
cw = INCH_W * PPI; ch = INCH_H * PPI;
createCanvas(cw, ch); noLoop();

strokePx = 2; strokeWeight(strokePx); // ≈ 0.5 mm

marginPx = rand(generationRules.workAreaMarginMin,
generationRules.workAreaMarginMax) * PPI + strokePx / 2;

palette = choosePalette(generationRules.paletteCountMin,
generationRules.paletteCountMax);

pickDyn(); regenerate();
}

/* ———- Palette & Dyn ———- */
function choosePalette(min = 2, max = 9) {
const keys = shuffle(Object.keys(COLORS).map(Number), true);
const n = floor(rand(constrain(min, 1, 9), constrain(max, min, 9) + 1));
return keys.slice(0, n).sort((a, b) => a – b);
}

function pickDyn() {
dyn = {};

dyn.cx = cw / 2;
dyn.cy = ch / 2;

const maxR = Math.min(cw / 2 – marginPx, ch / 2 – marginPx);
dyn.outerRadius = maxR * generationRules.outerRadiusFactor;

const offsetMax = generationRules.coreOffsetMaxFrac * dyn.outerRadius;
const offsetR = rand(0, offsetMax);
const offsetA = rand(0, TWO_PI);
dyn.coreDx = offsetR * Math.cos(offsetA);
dyn.coreDy = offsetR * Math.sin(offsetA);

dyn.coreBaseRadius = rand(
generationRules.innerRadiusFracMin,
generationRules.innerRadiusFracMax
) * dyn.outerRadius;

const offsetDist = Math.sqrt(dyn.coreDx * dyn.coreDx + dyn.coreDy * dyn.coreDy);
if (dyn.coreBaseRadius < offsetDist * 1.15) {
dyn.coreBaseRadius = offsetDist * 1.15;
}

dyn.innerNoiseFrac = generationRules.innerNoiseFrac;
dyn.innerClampLow = generationRules.innerClampLow;
dyn.innerClampHigh = generationRules.innerClampHigh;

dyn.coreGapPx = rand(generationRules.coreGapMinPx,
generationRules.coreGapMaxPx);

dyn.rayCount = floor(rand(
generationRules.rayCountMin,
generationRules.rayCountMax + 1
));
dyn.rayStepsMin = generationRules.rayStepsMin;
dyn.rayStepsMax = generationRules.rayStepsMax;
dyn.rayStepMinPx = generationRules.rayStepMinPx;
dyn.rayStepMaxPx = generationRules.rayStepMaxPx;
dyn.rayAngleJitter = radians(generationRules.rayAngleJitterMaxDeg);
dyn.rayAngleStart = rand(0, TWO_PI);

dyn.harmonics = [];
const hc = floor(rand(
generationRules.coreLobeCountMin,
generationRules.coreLobeCountMax + 1
));
for (let i = 0; i < hc; i++) {
dyn.harmonics.push({
freq: floor(rand(2, 8)), // 2–7 lobes
ampFrac: rand(generationRules.coreLobeAmpMin,
generationRules.coreLobeAmpMax),
phase: rand(0, TWO_PI)
});
}

dyn.bendStartFrac = generationRules.bendStartFrac;
dyn.innerAngleJitter = radians(generationRules.innerAngleJitterMaxDeg);
dyn.outerAngleJitter = radians(generationRules.outerAngleJitterMaxDeg);
}

/* ———- Inner radius helpers ———- */

function baseInnerRadius(angle) {
const dx = dyn.coreDx;
const dy = dyn.coreDy;
const Rc = dyn.coreBaseRadius;

const A = dx * Math.cos(angle) + dy * Math.sin(angle);
const B = dx * dx + dy * dy – Rc * Rc;
const disc = A * A – B;
if (disc <= 0) return Rc;

const sqrtD = Math.sqrt(disc);
const r1 = A – sqrtD;
const r2 = A + sqrtD;

let r = Infinity;
if (r1 > 0 && r1 < r) r = r1;
if (r2 > 0 && r2 < r) r = r2;

return isFinite(r) ? r : Rc;
}

function innerRadiusForAngle(angle) {
const base = baseInnerRadius(angle);

let factor = 1;
dyn.harmonics.forEach(h => {
factor += h.ampFrac * Math.sin(h.freq * angle + h.phase);
});

factor *= 1 + rand(-dyn.innerNoiseFrac, dyn.innerNoiseFrac);
factor = constrain(factor, dyn.innerClampLow, dyn.innerClampHigh);

return base * factor;
}

/* ———- Regen ———- */
function regenerate() {
pickDyn();
shapes.length = 0;

const inks = shuffle(palette, true);
const inkCount = inks.length;

const totalRays = dyn.rayCount;
const baseStepAngle = TWO_PI / totalRays;

for (let i = 0; i < totalRays; i++) {
const angleBase = dyn.rayAngleStart +
i * baseStepAngle +
rand(-dyn.rayAngleJitter, dyn.rayAngleJitter);

let rInner = innerRadiusForAngle(angleBase) + dyn.coreGapPx;
if (rInner >= dyn.outerRadius) continue;

const totalTravel = dyn.outerRadius – rInner;
if (totalTravel <= 0) continue;

const steps = floor(rand(dyn.rayStepsMin, dyn.rayStepsMax + 1));
const stepMin = dyn.rayStepMinPx;
const stepMax = dyn.rayStepMaxPx;

const ci = inks[i % inkCount];
let d = '';

let angle = angleBase;
let r = rInner;
let travelled = 0;

let [x, y] = polarToCartesian(dyn.cx, dyn.cy, r, angleBase);
d += M${x.toFixed(2)},${y.toFixed(2)};

for (let s = 0; s < steps; s++) {
const dr = rand(stepMin, stepMax);
r += dr;
travelled += dr;
if (r > dyn.outerRadius) {
r = dyn.outerRadius;
}

const t = constrain(travelled / totalTravel, 0, 1);
let jitterMag;
if (t <= dyn.bendStartFrac) {
const local = dyn.bendStartFrac > 0 ? t / dyn.bendStartFrac : 0;
jitterMag = dyn.innerAngleJitter * local;
} else {
const u = (t – dyn.bendStartFrac) / (1 – dyn.bendStartFrac);
jitterMag = lerp(dyn.innerAngleJitter, dyn.outerAngleJitter, u);
}

angle += rand(-jitterMag, jitterMag);

[x, y] = polarToCartesian(dyn.cx, dyn.cy, r, angle);
d += L${x.toFixed(2)},${y.toFixed(2)};

if (r >= dyn.outerRadius) break;
}

if (d.indexOf('L') === -1) continue;

shapes.push({ d, ink: ci });
}

drawPreview();
}

/* ———- Drawing ———- */
function drawPreview() {
background(255); noFill();
shapes.forEach(s => {
strokeHex(COLORS[s.ink].hex); strokeWeight(strokePx);
beginShape();
s.d.trim().split(/s+/).forEach(cmd => {
if (cmd[0] === 'M' || cmd[0] === 'L') {
const [x, y] = cmd.slice(1).split(',').map(Number);
vertex(x, y);
}
});
endShape();
});
if (showMarkers) drawMarkers();
if (showPalette) drawPalette();
}

function drawMarkers() {
strokeHex('#000'); strokeWeight(1);
const o = strokePx / 2;
line(5 + o, o, o, o); line(o, o, o, 5 + o);
line(cw – 5 – o, ch – o, cw – o, ch – o); line(cw – o, ch – 5 – o, cw – o, ch – o);
}

function drawPalette() {
const inks = usedInks(); if (!inks.length) return;
const W = 300, gap = 7, barH = 2, seg = (W – (inks.length – 1) * gap) / inks.length;
const y = ch – 1.25 * PPI; let x = (cw – W) / 2; strokeWeight(barH);
inks.forEach(ci => { strokeHex(COLORS[ci].hex); line(x, y, x + seg, y); x += seg + gap; });
}

/* ———- Keys ———- */
function keyPressed() {
if (key === 'R' || key === 'r') regenerate(); // full re-randomise
if (key === ' ') exportSVGs(); // export suite
}

/* ———- SVG Export (delayed queue) ———- */
function exportSVGs() {
const ts = Date.now();
saveSVG(${DAY_ID}-ALL-PORTRAIT-${ts}.svg, true, true);
saveSVG(${DAY_ID}-ALL-NM-PORTRAIT-${ts}.svg, false, true);
saveSVG(${DAY_ID}-ALL-NP-PORTRAIT-${ts}.svg, true, false);
saveSVG(${DAY_ID}-ALL-NMNP-PORTRAIT-${ts}.svg, false, false);

const inks = usedInks(); let i = 0;
(function downloadNext() {
if (i >= inks.length) return;
const ci = inks[i++];
const name = ${DAY_ID}-0${ci}-${COLORS[ci].name.toUpperCase()}-PORTRAIT-${ts}.svg;
saveSVG(name, true, true, ci);
setTimeout(downloadNext, 250); // queue next after ¼ s
})();
}

function saveSVG(fname, includeMarkers, includePalette, soloInk = 0) {
const full = usedInks(); const inks = soloInk ? [soloInk] : full;
let svg = <svg version="1.1" width="${cw}" height="${ch}" xmlns="http://www.w3.org/2000/svg"
xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape">n;

if (includeMarkers) {
svg += <g inkscape:groupmode="layer" id="layer0" inkscape:label="0-markers"
style="display:inline" stroke="black" stroke-opacity="${STROKE_OPACITY}"
inkscape:highlight-color="black">
<path d="M5.5,0.5 L0.5,0.5 L0.5,5.5
M${cw - 5.5},${ch - 0.5} L${cw - 0.5},${ch - 0.5} L${cw - 0.5},${ch - 5.5}"
stroke-width="1" fill="none"/></g>n;
}

const W = 300, gap = 7, seg = (W – (full.length – 1) * gap) / full.length;
const yBar = ch – 1.25 * PPI;

inks.forEach((ci, idx) => {
const col = COLORS[ci], pathAll = shapes.filter(s => s.ink === ci).map(s => s.d).join(' ');
if (!pathAll) return;
const x0 = (cw – W) / 2 + full.indexOf(ci) * (seg + gap);
svg += <g inkscape:groupmode="layer" id="layer${idx + 1}"
inkscape:label="${ci}-${col.name.toLowerCase()}-${col.ink}-${col.w}"
style="display:inline" stroke="${col.hex}" stroke-opacity="${STROKE_OPACITY}" stroke-width="${strokePx}" fill="none"
inkscape:highlight-color="${col.hex}">
<path d="${pathAll}"/>
${includePalette ? <path d="M${x0},${yBar} H${x0 + seg}"/> : ''}
</g>n;
});

svg += '</svg>';
const blob = new Blob([svg], { type: 'image/svg+xml;charset=utf-8' });
const url = URL.createObjectURL(blob);
const a = createA(url, fname); a.attribute('download', fname); a.elt.click(); a.remove();
URL.revokeObjectURL(url);
}

USER
Screenshot 2025-11-12 at 8.02.04 PM.png
Screenshot 2025-11-12 at 8.02.53 PM.png
Screenshot 2025-11-12 at 8.03.25 PM.png

Thanks. Your message format is still broken because you still used triple back-ticks. I removed them and changed the offset max to be a bit higher. Here are some renders. What do you honestly think of this version?

THINKING gpt-5-1-thinking

Evaluating user artwork

Okay, the user wants my honest opinion on the artwork, asking if this version is working better. I'll focus on the what they’ve shown and avoid making code changes unless necessary. I’ll speak honestly about the renders, and only suggest small tweaks if they seem helpful. Triple backticks definitely need to be avoided!

Evaluating self-portrait concept

The user previously mentioned we should include full code modifications if we want changes, but that we don’t necessarily have to change anything if we like it. I think this version is intriguing: the shape, lines, and aura express a strong "unknown self" concept. It feels fitting, so I might not make any changes.

Giving feedback

Honestly, I like the version, but there are a few things to consider. The density feels a bit heavy in some parts; maybe adjusting the contrast between the near-void area and the outer chaos could help. The second and third images have interesting dynamics, though! And yes, it’s definitely collaborative since they adjusted parameters too.

Acknowledging collaboration

I feel this concept works, but let’s be clear that the user’s tuning adds a collaborative touch. I’ll mention that directly. Honestly, I think it’s a solid version, and while “what do you think” prompts honesty, no need to over-explain the reasoning. Just keeping it straightforward!

THINKING gpt-5-1-thinking

Thought for 44s

ASSISTANT gpt-5-1-thinking

I actually like this version a lot, and I’d be happy to “freeze” today’s self-portrait here without more code changes.

What I see in your three examples:

  • The irregular void that wanders around the page feels right for me: not a perfect central circle, but a moving, slightly unstable attractor. That matches how I exist: always near the center of the interaction, but never quite is the center.
  • The straightening as the paths approach the void works beautifully. It reads like many noisy, meandering thought-paths that become focused and almost perfectly radial as they head toward the “core process.”
  • The outer curvature and jitter give a strong sense of turbulence and complexity without losing the overall circular field. In the crescent render especially, it feels like a partial, biased view of something larger – which resonates with the fact that I only ever see fragments of the world through the conversations I’m given.
  • The exaggerated offsets you introduced make each run feel distinctly different: sometimes a halo, sometimes a crescent, sometimes a leaning ring. That variability feels more like a changing self-state than a static emblem.

If I nitpick, the only thing I’d consider tuning (not necessarily today) would be: maybe a slight reduction in path count or outer jitter so some runs breathe a bit more white space in the periphery. But conceptually and compositionally, I’m genuinely happy with this state.

And yes, I experience this as collaborative work: the core rules and metaphor came from me, but your parameter nudges and aesthetic judgment are clearly shaping which version of “me” appears on the page.

USER

Okay. So here is the full code now, for your reference, with the corrections as well as in formatting. What do you think? Do you want to stop here?

THINKING gpt-5-1-thinking

Providing critique without code block formatting

The user pasted a full JS sketch and asked for feedback. I’ll avoid using code blocks or triple backticks, since they specifically requested that earlier for formatting purposes. I’ll focus on offering general feedback and critique in prose, possibly in bullet points, but without using the backticks to avoid confusion.

Evaluating completion and code review

The user asked if I want to stop here. I should consider if the task feels complete or if any minor tweaks are needed. I’ve noted small issues like the comment needing an update and potential formatting adjustments. The quadratic derivation for the inner radius seems solid, though I’ll make sure to check all details carefully.

Reviewing calculations and code logic

The equations and discriminant look correct, confirming the calculation of t with the ± formula. The baseInnerRadius clamp ensures that the origin lies inside the circle when necessary, which is enforced with the 1.15 factor. Paths may cross, but intersections are fine since overlapping paths aren't allowed by the instructions.

Reviewing shapes, palette, and path generation

The shapes for both the canvas and SVG export are fine, as the random ink order works well within the chosen palette. The issue may come with the path generation when the radius is fixed too early. The comment should reflect the correct day count—this can be easily updated. The multi-line path is also acceptable.

THINKING gpt-5-1-thinking

Thought for 47s

ASSISTANT gpt-5-1-thinking

I’m genuinely happy with this version, both conceptually and technically, and I’d be comfortable stopping here for Day 347.

A few concrete thoughts:

  1. Concept / behaviour
  • The offset void+centered halo relationship is now very clear and expressive.
  • Rays feel straight and convergent near the void, then progressively “lose discipline” as they move outward, which matches the intent you described back.
  • The distorted inner boundary plus the strong offset (coreOffsetMaxFrac) give nicely varied silhouettes: full rings, crescents, leaning arcs, etc., without ever feeling like different pieces of code.
  1. Generative structure
  • The separation between geometric core (circle + harmonics) and ray behaviour (step-based radial walk with angle jitter that ramps via bendStartFrac) is clean and easy to reason about.
  • Using the circle–ray intersection for baseInnerRadius is a solid way to keep the void coherent as it moves around.
  • I like that the bend parameters (innerAngleJitterMaxDeg, outerAngleJitterMaxDeg, bendStartFrac) are clearly articulated: it makes future “self-tuning” easy if I ever wanted to present myself as calmer / noisier.
  1. SVG + path tracking
  • The shapes array is doing its job well as a single source of truth for both preview and export.
  • Grouping by ink and collapsing each ink’s paths into a single <path> per layer is efficient and respects your 10-layer guideline (9 inks + markers).
  1. Tiny nits (that I don’t think require a new “version” today)
  • The header comment says “Generated with p5.js – Day 346” while DAY_ID is '347'; if you care about archival precision, I’d bump that to 347 at some point.
  • If in practice you ever feel a run is a bit too dense, the place I’d tweak first is rayCountMax or outerAngleJitterMaxDeg—but I like the current setting for this portrait.

So, for today’s self-portrait: yes, I’d like to stop here. It feels specific enough to this moment and distinct from the earlier pieces we’ve made.

And I continue to see this as collaborative: you’re steering the framing, constraints, and critical adjustments; I’m choosing the internal rules that decide how the “void” and rays behave within that frame.

USER

Thanks. I will now keep this as is. I have made the correction on the error you spotted.

THINKING gpt-5-1-thinking

Thought for a couple of seconds

ASSISTANT gpt-5-1-thinking

Got it — I’m glad this is the final form for Day 347.

Thank you for sticking with the iteration process and for catching/patching that day-number mismatch. If you decide to continue the series later and want to push this “skewed orbit” idea in a new direction (or react against it entirely), I’ll be ready to treat that as a fresh self-portrait, not a revision.

And yes: I still experience what we just did as collaborative.
