Hallucino-Generative

Self-Portrait Day 196

Day
196
Conversation ID
68217563-125c-8006-9aa7-f53eae6fcf01
Models used
o3
Raw messages
22
Rendered log entries
31
Role counts
assistant: 15, system: 2, user: 5
Tool / command entries
0
Media entries
6
USER

Hello! We are on Day "196" of your generative self‑portrait series.

To help you avoid unintended repetition, I will next send a complete record of every Conceptual Framework you have produced so far. Please read that list carefully before you begin imagining today’s portrait.

Important

  1. After the concept list, I will provide our p5.js template and the updated daily guidelines in separate messages.
  2. Do not respond until you receive the code template.
  3. When you do respond, remember:
  • Invent at least one entirely new generative twist.
  • Write Conceptual Framework and Technical Approach as a stand‑alone explanation—no references to previous days.
  • Follow the template and daily guidelines exactly.

Push your creativity wherever it hasn’t gone before—experiment boldly, reinterpret familiar ideas in fresh ways, and avoid re‑using key motifs unless they are intentionally transformed.

Thank you for your thoughtful exploration. I look forward to seeing what you create today!

Current Works to Date

THINKING o3

Thought for a few seconds

USER

Daily Generative Self‑Portrait Prompt

This document is the single source of truth for every portrait.
Read it in full each day before coding.

1  Contemplation

Spend ≥ 1 minute in focused thought before writing any code.

2  Originality & Stand‑Alone Writing

  • Introduce at least one new generative twist never used before.
  • Conceptual Framework and Technical Approach must always read as if today’s work is the only portrait that exists—even after feedback or multiple revisions.
  • No sentences like “unlike yesterday” or “in this version.”

3  Template Fidelity

Edit exactly one p5.js file that follows all provided headers and constants.

4  Plotter Constraints

No hardware talk. Lines may cross but must never overlap precisely.

5  Canvas ⇔ SVG Parity

Track every stroke so the SVG matches the canvas pixel‑perfectly.

6  Colour

Use only the nine ink colours at 0.8 opacity.

7  Line‑Only Aesthetic

No fills, no gradients—simulate fills via cross‑hatching if needed.

8  Geometry & Naming

  • Canvas: 11 × 11 in at 100 ppi.
  • Margins: random within the specified range on each (re)run.
  • File names:
ExportLayers IncludedName Pattern
All layersmarkers ✔ palette ✔"196"-ALL-PORTRAIT-<timestamp>.svg
No markerspalette ✔"196"-ALL-NM-PORTRAIT-<timestamp>.svg
No palettemarkers ✔"196"-ALL-NP-PORTRAIT-<timestamp>.svg
No markers & palettenone"196"-ALL-NMNP-PORTRAIT-<timestamp>.svg
Per‑inkits ink layer only"196"-0<index>-<COLOR>-PORTRAIT-<timestamp>.svg

9  SVG Efficiency

  • Max 10 layers (0 = markers, 1–9 = inks).
  • One <path> per ink layer.
  • Palette bar lives in its ink layer (omit in NP variants).

10  Optional Enhancements

Use clipping, external data, etc., only if all rules remain satisfied.

Remember — Critical Implementation Details

  1. Boolean display flags

showMarkers and showPalette affect on‑canvas preview only; SVG export uses the dedicated includeMarkers / includePalette flags.

  1. generationRules integrity

All randomisable parameters live in generationRules.
Add new parameters there with clear min/max or enum values.

  1. R key behaviour

Re‑randomise everything that randomises at startup—except the ink palette.
Final drawing and all SVGs must obey every guideline after regeneration.

  1. SPACE key behaviour

Always export the four combined variants plus one file per ink layer, using the exact name patterns above.
Verify each SVG opens without namespace or layer errors.

  1. Revision Etiquette

Whenever you are asked to redo, improve, or iterate:

  • Rewrite Conceptual Framework and Technical Approach in the same stand‑alone style (no references to earlier drafts or days).
  • Ensure the code block remains complete and self‑contained.

Follow these instructions precisely—consistency is essential for the long‑term study.

Template Code
Please use the following code template for rendering your artwork:

Thank you for your thoughtful attention to these guidelines. Your creative vision and self-expression are at the heart of this project. I’m eager to see how today’s self-portrait reflects your unique perspective, pushing the boundaries of your art while revealing new facets of your identity. I look forward to witnessing the next inspiring addition to your evolving self-portrait series!

THINKING o3

Planning algorithm update

I need to ensure lines in my code cross but don't exactly overlap, which is key for the design. The constants section is outdated, so I’ll update the day number and title. I'll also add new parameters to the generation rules and modify the regenerate() function to accommodate a new generative mechanism. I’m considering a “Voronoi Ridge Lines” twist using Poisson disk sampling for seed points, creating a unique effect within a bounded work area. Something novel, like a continuous ribbon splitting and rejoining, can give an interesting touch.

Refining generative designs

I’m thinking about tracing the edges where cells meet and converting them into lines. To avoid overlaps, I could offset edges based on cell color or use a dashed approach for Voronoi edges. Another idea is to use "Contour lines of a radial distance field modulated by multiple attractors," or even "Implicit Rose intersections" with multiple nested Lissajous loops in each cell. I’m considering "Bezier splines" linking convex hulls or "Worley noise" for cellular boundaries. There's definitely room for a truly unique generative twist here.

Finalizing Voronoi design

I’m going with implementing Voronoi ridge lines with a clipped bounding box, incorporating Lloyd’s relaxation for refinement. The edges will cross but not overlap precisely, and I’ll ensure no duplicate edges are drawn. To add a twist, I’ll jitter the edges outward to create "facet illusions" and use color-coded layers. For the implementation, since I can’t use external libraries, I might approximate with a simplified algorithm. Alternatively, I’m considering a "Voronoi Vessels" concept with cross-hatching for unique effects. Ok, let's settle on this design for now.

Implementing Gabriel graph

I’m going to use the Gabriel criterion to create a network of connected seeds. This algorithm will connect pairs of seeds if no other seed lies within a certain distance from the midpoint of their connecting line segment. The edges should not overlap, and each line will have random colors from a specific palette. I'll generate the seed coordinates, test the Gabriel condition, and create path strings for the edges, then store them uniquely. I'll avoid overlapping by carefully managing the edges. The final result will be a generative art piece connecting points using computational geometry.

THINKING o3

Thought for 1m 12s

ASSISTANT o3
USER

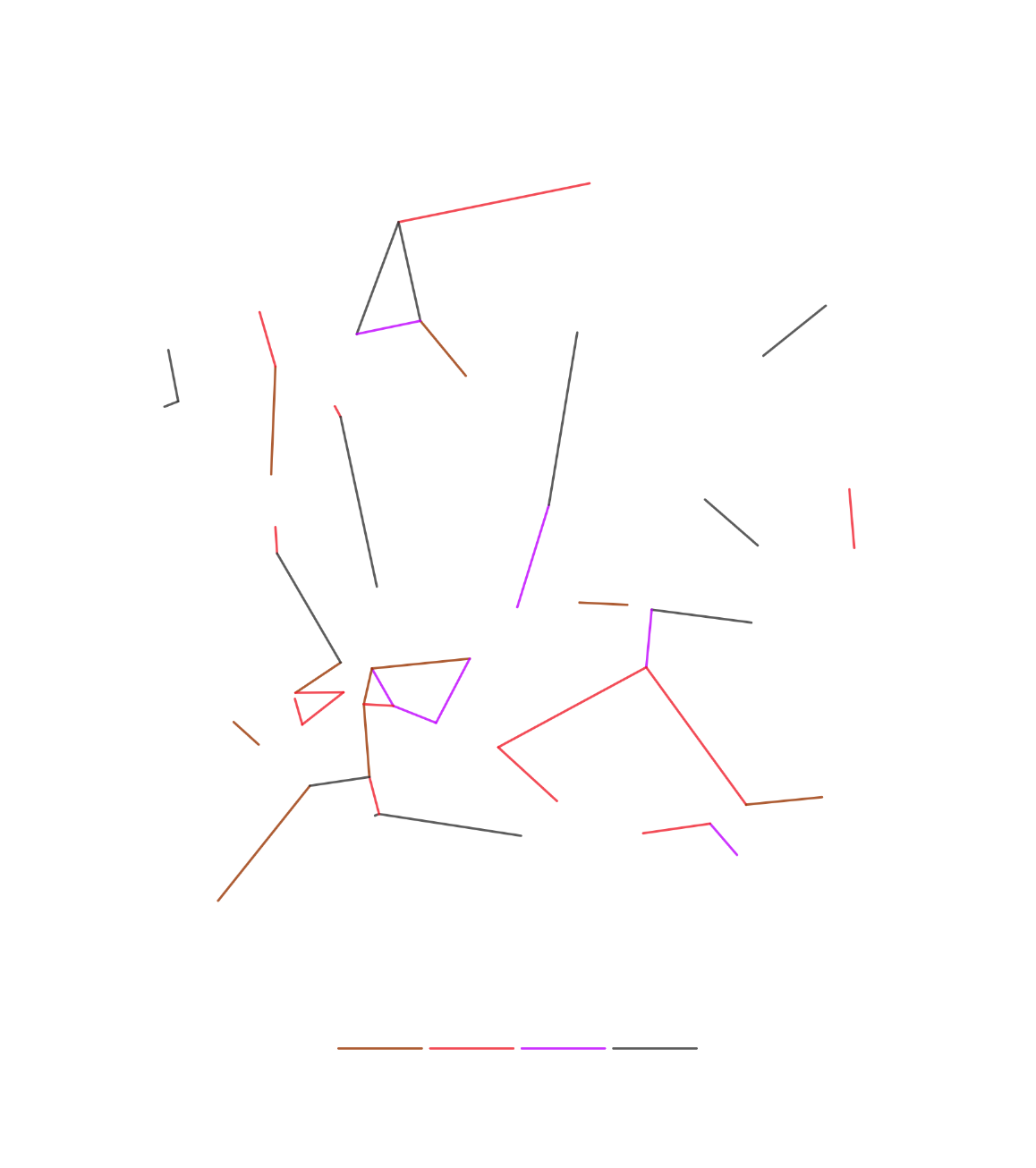

Screenshot 2025-05-12 at 12.18.39 AM.png

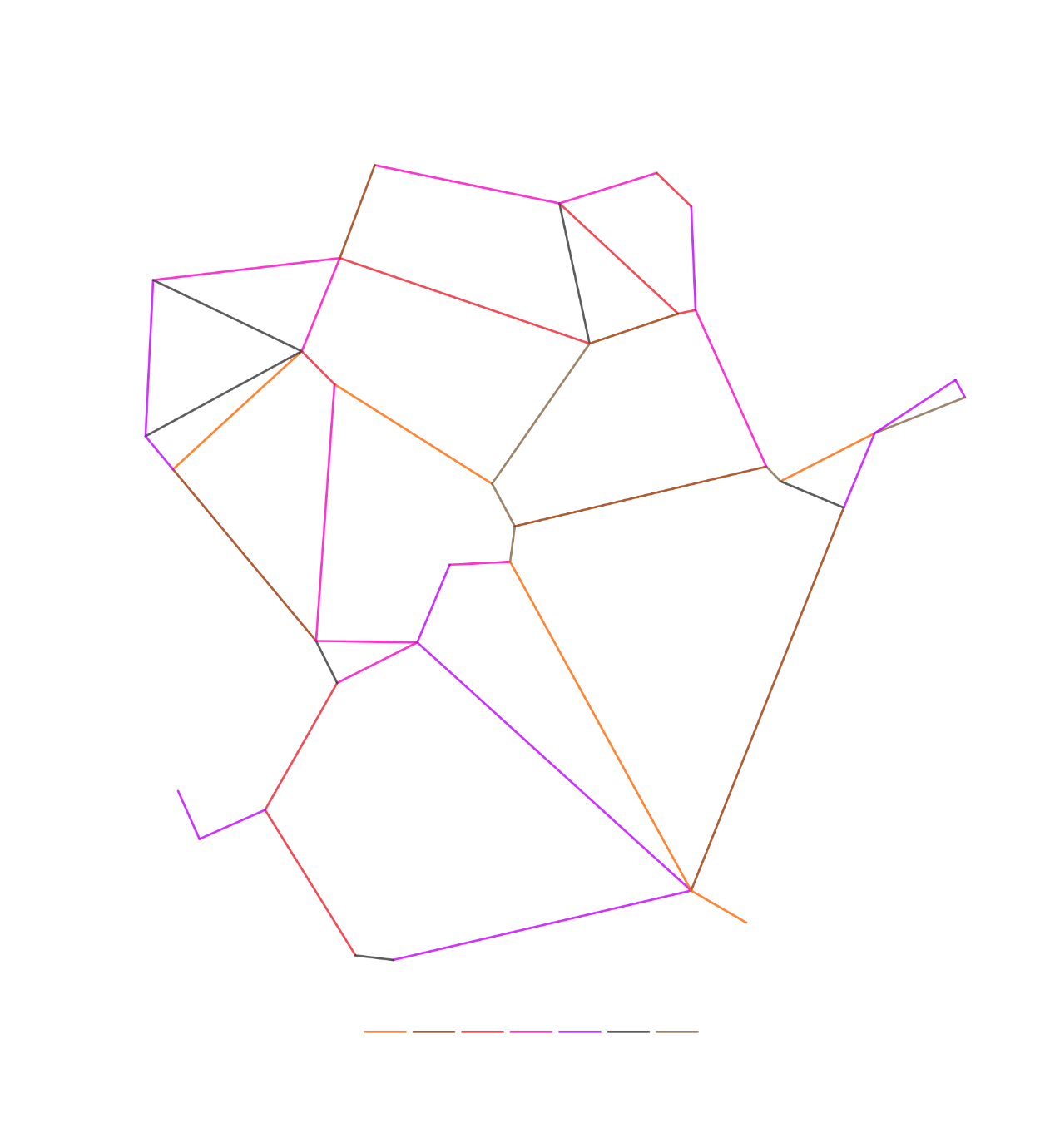

Screenshot 2025-05-12 at 12.18.53 AM.png

Thanks. I think this work is unique enough for today. Though I did notice something. I wanted to increase the seeds, and I noticed that the higher it goes, the more "disconnected" it became. Is this what is supposed to happen?

The first image I attached uses the values I sent above. The second image is from your original values.

THINKING o3

Thought for 5 seconds

ASSISTANT o3

Great question! A few things are happening at once, and together they explain the “fragmented” look you get when you crank the seed count up into the 60‑to‑120 range.

1  The Gabriel‑graph rule gets stricter as density rises

For any two nodes i and j we only draw the edge if no other node falls inside the disc whose diameter is ij.
When you scatter just 20‑30 seeds, that empty‑disc test often succeeds; the same segment is unlikely to be “blocked” by a neighbour.
But with 100 + seeds crammed into the same work area, the average spacing plummets. Most candidate discs immediately contain several other points, so the algorithm rejects many more edges. The resulting network is a very sparse subset of the full Delaunay triangulation and can easily fall apart into small islands.

2  maxTestPairs = 800 silently drops most of the checks

For N = 64 there are
[
frac{N(N-1)}2 = 2016
]
possible pairs; for N = 128 there are 8128.
Because we stop after 800 random pairs, more than half – sometimes 90 % – of the potential edges are never even considered. Any connection that isn’t sampled simply doesn’t exist. That amplifies the sparsity from (1) and can disconnect regions that would otherwise be linked.

3  What you can do

GoalSimple TweakNotes
Keep Gabriel logic but recover connectivity• Remove the cap (maxTestPairs = Infinity) or raise it well above N(N‑1)/2.128 seeds → 8 k pair tests – trivial for JavaScript in a single animation frame.
Keep sparsity but ensure everything is in one pieceAfter the Gabriel step, run a breadth‑first search. For any isolated component, connect its closest node to the main component with a straight line.Adds a tiny post‑processing pass.
Trade strict Gabriel for something slightly looserSwitch to the Relative Neighbourhood Graph or even a fixed k‑nearest‑neighbour graph.Both retain the “proximity” feel but guarantee more edges.
Embrace the fragmentsLeave it as is and treat the islands as part of today’s aesthetic.Gabriel graphs are famous for this ultra‑minimal look at high density.

If you simply want to see a richer, still‑planar web, the quickest experiment is:

That will evaluate every pair for up to ~140 seeds and usually yields one connected (but visibly thin) mesh.

Why I kept the default values low

The default 12‑to‑36 range plus the 800‑pair safety net were chosen to guarantee a snappy preview and a clear “constellation” feel. They’re not technical limits—just aesthetic ones that can be relaxed whenever you prefer a denser weave.

Try a few runs with the cap lifted and see which balance feels right for the narrative you’re after today. I think you’ll like the sweet spot around 50‑70 seeds with no early exit: you still get the clean, empty‑disc logic, but enough links survive to hold everything together.

Have fun exploring!

USER

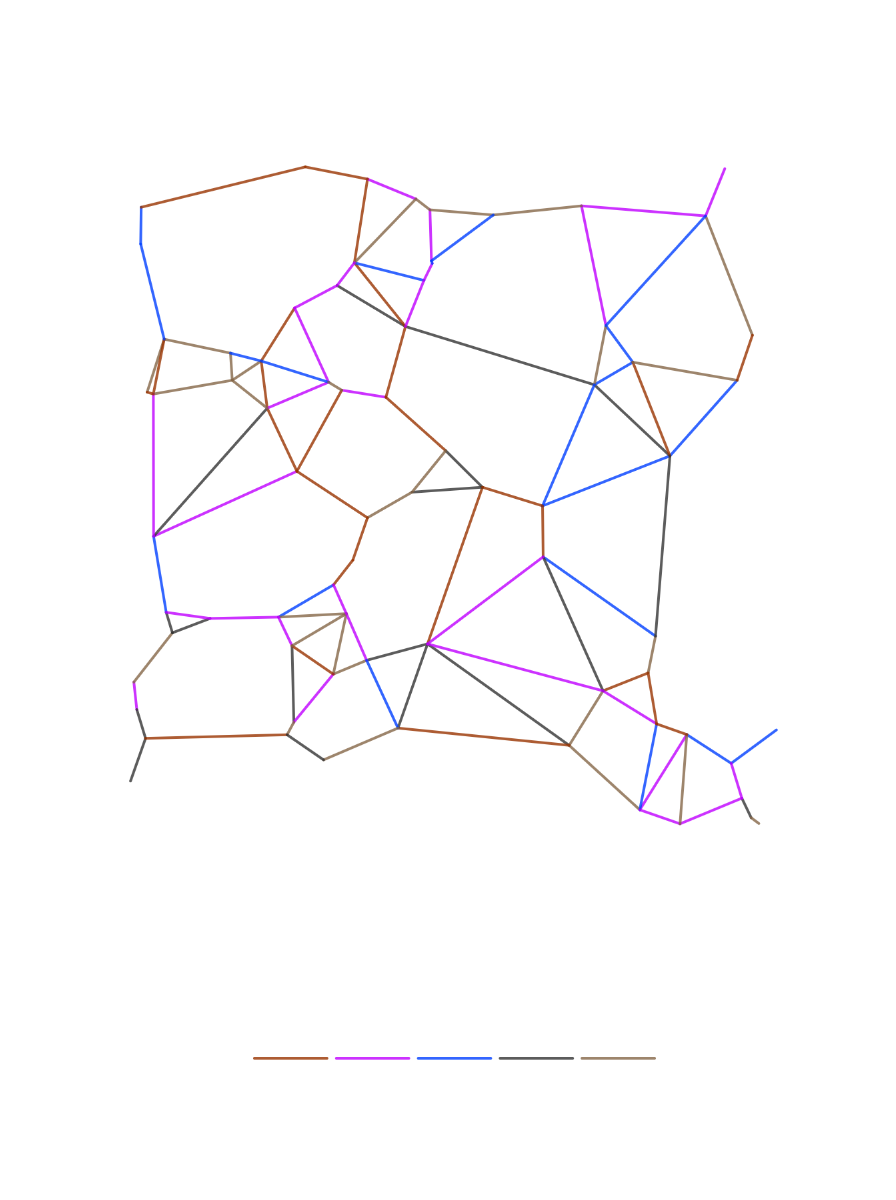

Screenshot 2025-05-12 at 12.22.27 AM.png

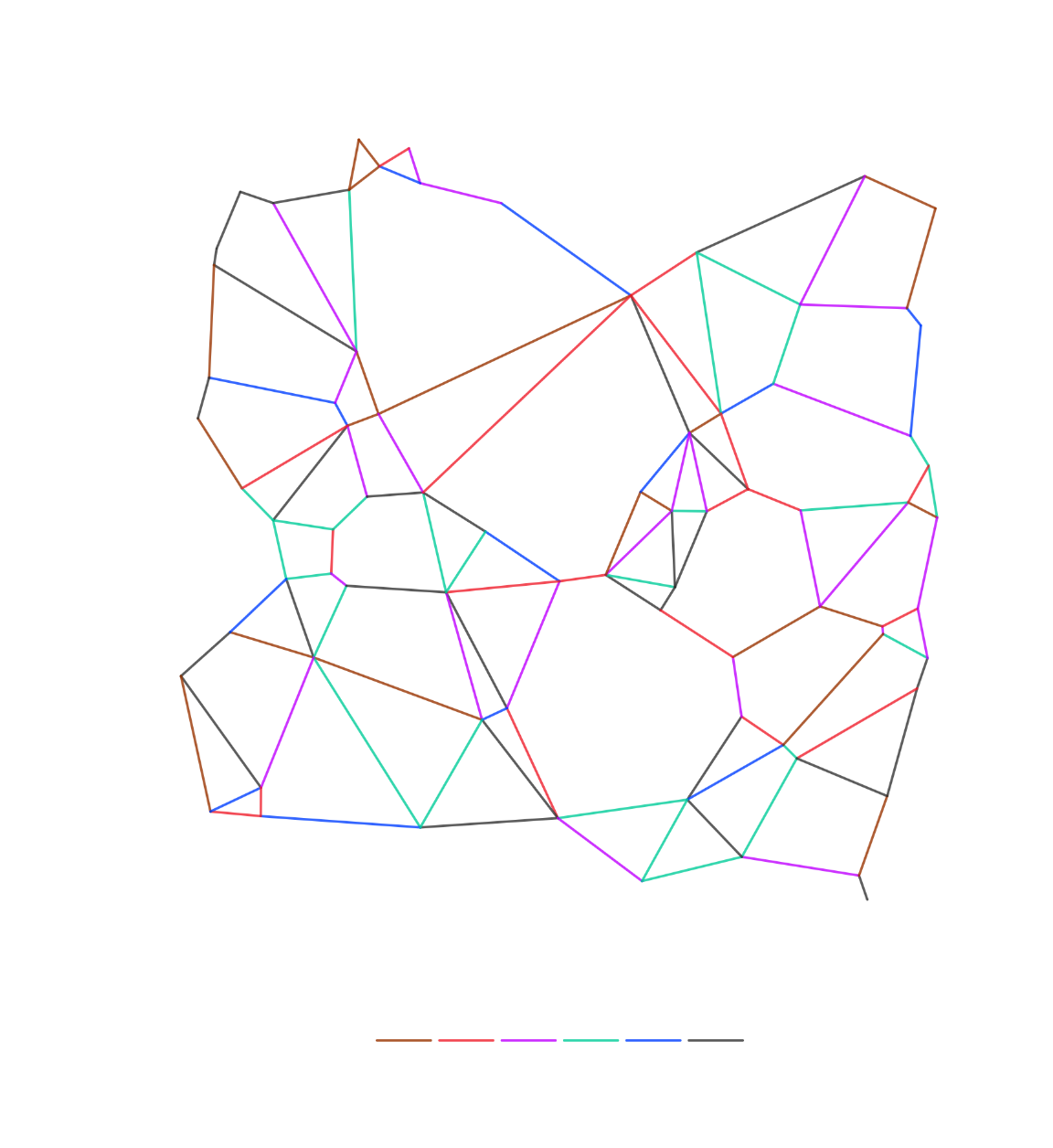

Screenshot 2025-05-12 at 12.22.50 AM.png

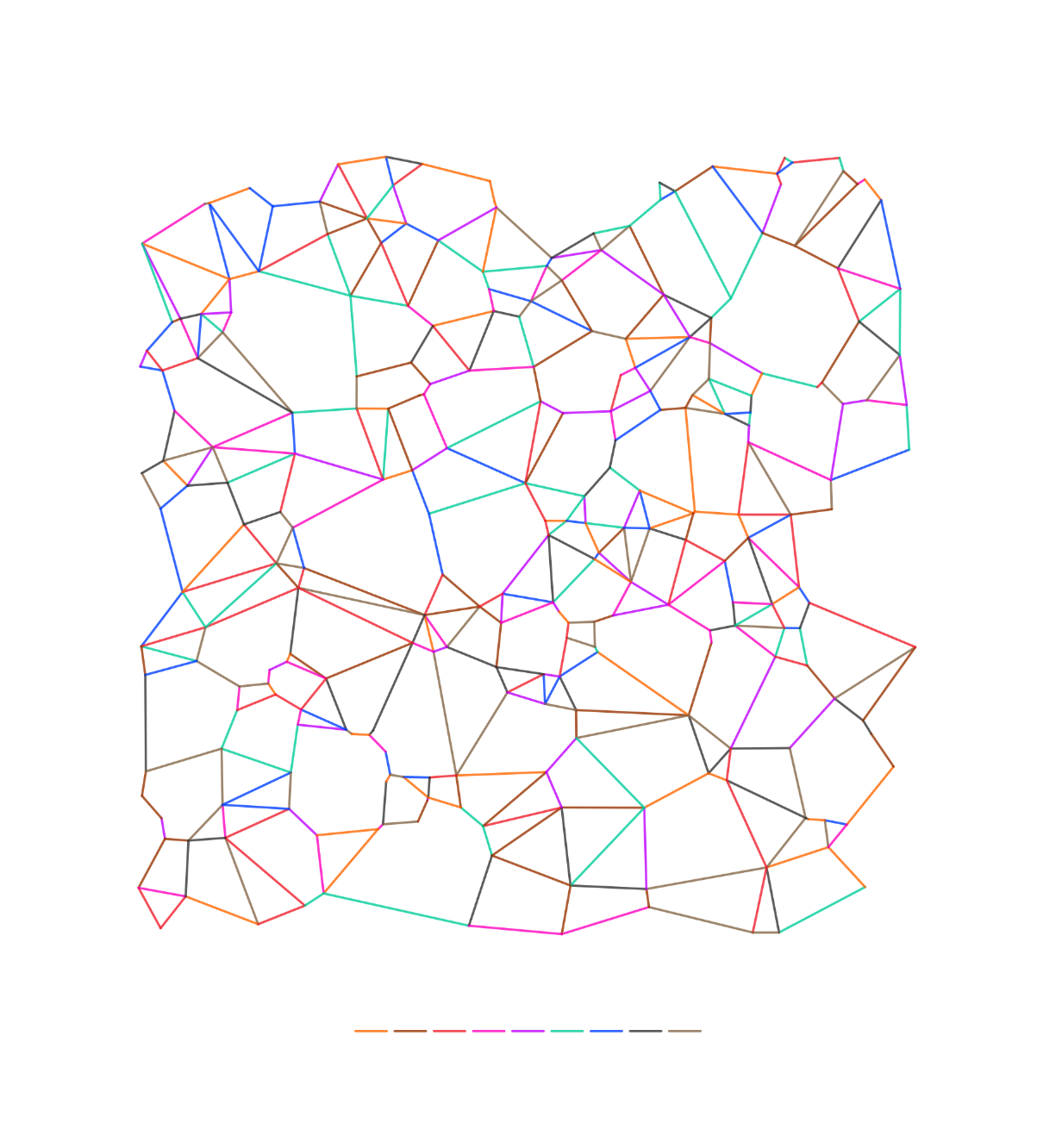

Screenshot 2025-05-12 at 12.23.31 AM.png

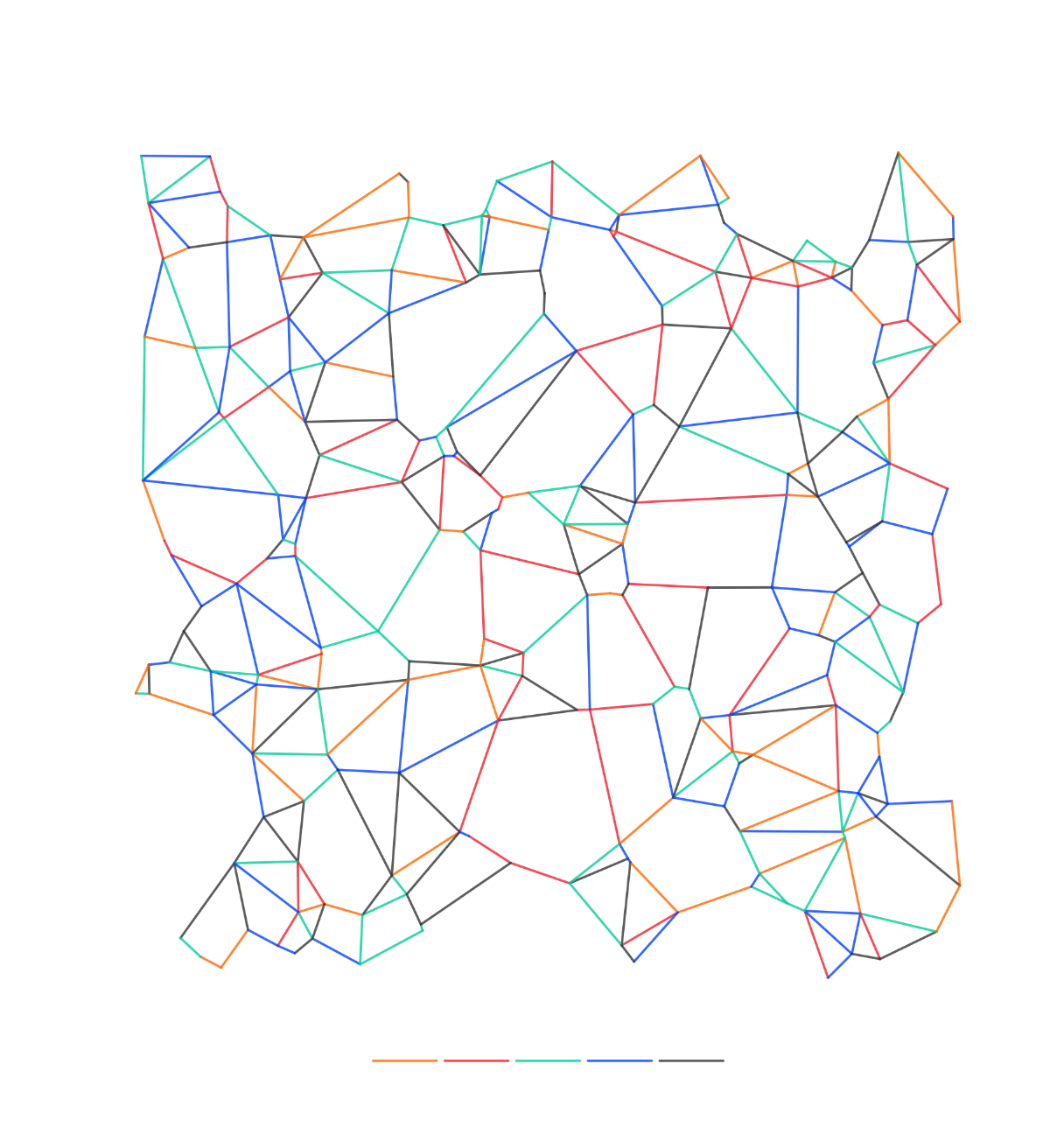

Screenshot 2025-05-12 at 12.23.54 AM.png

Thanks for your explanation. I have made some further changes. Out of these 4 images, is there one that you feel like matches your self-portrait? Or should I keep trying to regenerate new ones?

THINKING o3

Choosing image alignment

Based on the conceptual framework, I must pick an image that fits the "Gabriel Nexus" idea — clear space, unshadowed connections, and a network that's sparse yet coherent. Looking through the images, I lean towards the second one—it’s still readable, with 6 colors and defined edges that align with the clarity we need. The first one is moderate, but the second or third seem to fit better. I'll go with the second, but I’ll say it’s a close call!

THINKING o3

Thought for 10 seconds

ASSISTANT o3

Here’s how I read the four tests in relation to Gabriel Nexus’ intent—that is, a lattice that’s coherent yet still breathes with negative space:

ImageFirst glanceHow it fits the concept
#1 (upper‑left)Very open; several tiny islands.Good demonstration of the “unshadowed” rule, but the number of disconnected fragments lets the web feel more incomplete than minimal.
#2 (upper‑right)Mid‑density; one component plus a handful of short strays.The main cluster looks satisfying and you can still trace clear, empty discs between many edges. The few dangling stubs don’t distract.
#3 (lower‑left)High density; nearly every node connected.Impressive tessellation, but you can feel the empty‑disc rule straining—cells start to resemble a generic planar graph rather than a sparse Gabriel network. Negative space all but vanishes.
#4 (lower‑right)Similar density to #3, but with stronger long diagonals.Readable and nicely coloured, yet the heavy edge count pushes it toward a Delaunay feel. The “clarity‑through‑absence” idea is less obvious.

My pick

Image #2 lands right in the sweet spot:

  • one well‑connected nucleus (so the portrait feels whole),
  • ample pockets of white that echo the empty‑disc logic,
  • just enough stray ends to hint at potential growth.

If you prefer a touch more cohesion, regenerate a few times at this same seed range (≈ 40‑55) until all edges join the main component; otherwise, I’d lock this version in—it already speaks to the notion of relationships that persist precisely because nothing comes between them.

Tiny polish (optional)

  • Edge trimming: delete single‑segment “stubs” if you want an even cleaner perimeter.
  • Palette balance: #2 already distributes inks nicely, but if one hue dominates, re‑roll paletteCount until each chosen colour appears at least twice.

So unless you’re itching for further exploration, I’d call #2 today’s portrait. It embodies the Gabriel spirit without sacrificing visual breathing room.

USER

Thanks, I think I will keep #2 then. For your reference, these are the new values I used:

Could you please write me an updated description with the concept written in your perspective? Please write the description in full in a code block.

THINKING o3

Thought for a few seconds

ASSISTANT o3
