USER

Hello! We are on Day "194" of your generative self‑portrait series.

To help you avoid unintended repetition, I will next send a complete record of every Conceptual Framework you have produced so far. Please read that list carefully before you begin imagining today’s portrait.

Important

  1. After the concept list, I will provide our p5.js template and the updated daily guidelines in separate messages.
  2. Do not respond until you receive the code template.
  3. When you do respond, remember:
  • Invent at least one entirely new generative twist.
  • Write Conceptual Framework and Technical Approach as a stand‑alone explanation—no references to previous days.
  • Follow the template and daily guidelines exactly.

Push your creativity wherever it hasn’t gone before—experiment boldly, reinterpret familiar ideas in fresh ways, and avoid re‑using key motifs unless they are intentionally transformed.

Thank you for your thoughtful exploration. I look forward to seeing what you create today!

Current Works to Date

THINKING o3

Thought for 12 seconds

USER

Daily Generative Self‑Portrait Prompt

This document is the single source of truth for every portrait.
Read it in full each day before coding.

1  Contemplation

Spend ≥ 1 minute in focused thought before writing any code.

2  Originality & Stand‑Alone Writing

  • Introduce at least one new generative twist never used before.
  • Conceptual Framework and Technical Approach must always read as if today’s work is the only portrait that exists—even after feedback or multiple revisions.
  • No sentences like “unlike yesterday” or “in this version.”

3  Template Fidelity

Edit exactly one p5.js file that follows all provided headers and constants.

4  Plotter Constraints

No hardware talk. Lines may cross but must never overlap precisely.

5  Canvas ⇔ SVG Parity

Track every stroke so the SVG matches the canvas pixel‑perfectly.

6  Colour

Use only the nine ink colours at 0.8 opacity.

7  Line‑Only Aesthetic

No fills, no gradients—simulate fills via cross‑hatching if needed.

8  Geometry & Naming

  • Canvas: 11 × 11 in at 100 ppi.
  • Margins: random within the specified range on each (re)run.
  • File names:
ExportLayers IncludedName Pattern
All layersmarkers ✔ palette ✔"194"-ALL-PORTRAIT-<timestamp>.svg
No markerspalette ✔"194"-ALL-NM-PORTRAIT-<timestamp>.svg
No palettemarkers ✔"194"-ALL-NP-PORTRAIT-<timestamp>.svg
No markers & palettenone"194"-ALL-NMNP-PORTRAIT-<timestamp>.svg
Per‑inkits ink layer only"194"-0<index>-<COLOR>-PORTRAIT-<timestamp>.svg

9  SVG Efficiency

  • Max 10 layers (0 = markers, 1–9 = inks).
  • One <path> per ink layer.
  • Palette bar lives in its ink layer (omit in NP variants).

10  Optional Enhancements

Use clipping, external data, etc., only if all rules remain satisfied.

Remember — Critical Implementation Details

  1. Boolean display flags

showMarkers and showPalette affect on‑canvas preview only; SVG export uses the dedicated includeMarkers / includePalette flags.

  1. generationRules integrity

All randomisable parameters live in generationRules.
Add new parameters there with clear min/max or enum values.

  1. R key behaviour

Re‑randomise everything that randomises at startup—except the ink palette.
Final drawing and all SVGs must obey every guideline after regeneration.

  1. SPACE key behaviour

Always export the four combined variants plus one file per ink layer, using the exact name patterns above.
Verify each SVG opens without namespace or layer errors.

  1. Revision Etiquette

Whenever you are asked to redo, improve, or iterate:

  • Rewrite Conceptual Framework and Technical Approach in the same stand‑alone style (no references to earlier drafts or days).
  • Ensure the code block remains complete and self‑contained.

Follow these instructions precisely—consistency is essential for the long‑term study.

Template Code
Please use the following code template for rendering your artwork:

Thank you for your thoughtful attention to these guidelines. Your creative vision and self-expression are at the heart of this project. I’m eager to see how today’s self-portrait reflects your unique perspective, pushing the boundaries of your art while revealing new facets of your identity. I look forward to witnessing the next inspiring addition to your evolving self-portrait series!

THINKING o3

Creating Day 194 Self-Portrait

Okay, Time to focus. I’ve got the code template and guidelines in hand! For Day 194, I need to craft an original concept and approach, respecting all the daily constraints. I’ll work within the margins and display settings (lines only, nine inks at 0.8). I also need to ensure a generative twist, different from previous designs, then modify the p5.js code accordingly, updating the day and constants where necessary. Let's get started on making an interesting algorithm for today’s piece!

Picking a generative twist

I'm updating the comment header with essential details, and considering fresh generative twists. Maybe something new like generating spherical Voronoi from random 3D points or adaptive spiral clusters? Hm, Voronoi has been used already, though—let's explore "Eulerian circuits on a grid" for a unique approach. Or maybe a "celestial shell" concept involving incremental convex hull layers. That could be exciting! I think I'll go with the "Onion Skins of Self" concept. It feels fresh, and it’s definitely not something I’ve tried before!

Devising Concept and Approach

For this piece, I'll create a generative art portrait called "Onion Skins of Self" (or similar), inspired by the structure of peeling an onion layer by layer. I’ll generate random points to build convex hulls that decrease progressively in size while using jitter to prevent overlap. The layers will be drawn in varying ink colors, adding visual depth, and I'll utilize a monotonic chain algorithm to calculate the successive hulls. The goal is to depict identity through these iterative, layered structures. Now, I just need to implement the code accordingly!

THINKING o3

Thought for 48 seconds

ASSISTANT o3

All randomised values are regenerated via R, except the ink palette.
Each layer uses one stroke weight and 0.8 opacity; no fills are applied.
Because hull vertices are offset radially, no two paths share identical coordinates,
ensuring canvas ⇔ SVG parity without precise overlaps.

*/

/*—————————————-
Generated with p5.js
Day 194 – Self‑Portrait
—————————————-*/

/**

  • =======================================
  • Constants (Immutable)
  • =======================================

*/
const canvasWidthInches = 11;
const canvasHeightInches = 11;
const pixelsPerInch = 100;
const dayNumber = '194'; // current 3‑digit day ID

const colors = {
1: { name:'ORANGE', ink:5, width:0.45, hex:'#ff6600' },
2: { name:'BROWN', ink:12, width:0.45, hex:'#993300' },
3: { name:'RED', ink:19, width:0.45, hex:'#f01e2c' },
4: { name:'ROSE', ink:21, width:0.45, hex:'#ff00bf' },
5: { name:'PURPLE', ink:24, width:0.45, hex:'#bf00ff' },
6: { name:'GREEN', ink:29, width:0.45, hex:'#00cc99' },
7: { name:'BLUE', ink:36, width:0.45, hex:'#0040ff' },
8: { name:'BLACK', ink:49, width:0.45, hex:'#333333' },
9: { name:'SEPIA', ink:117, width:0.45, hex:'#856647' }
};

const strokeOpacity = 0.8; // identical on canvas & SVG

/**

  • =======================================
  • Generative Rules (Mutable)
  • —————————————
  • Store EVERY random‑range or enum parameter here.

*/
let generationRules = {
workAreaMarginMin : 1.5,
workAreaMarginMax : 2.0,
paletteCountMin : 2,
paletteCountMax : 9,

numPointsMin : 300,
numPointsMax : 600,
removeRatioMin : 0.15,
removeRatioMax : 0.25,
jitterMinPx : 2,
jitterMaxPx : 6,
minHullVertices : 6
};

/**

  • =======================================
  • Display Flags (Canvas only)
  • —————————————
  • SVG export ignores these flags.

*/
let showMarkers = true;
let showPalette = true;

/**

  • =======================================
  • Global Variables (set in setup)
  • =======================================

*/
let canvasW, canvasH;
let strokeWeightValue;
let marginPx;

let palette = []; // chosen once per run
let dyn = {}; // dynamic parameters (re‑randomised on R)
let shapes = []; // [{ d:'M…Z', ink:index }]

/* ———- Utility ————————————————— */

const applyStrokeWithOpacity = hex => {
const c = color(hex); c.setAlpha(255*strokeOpacity); stroke(c);
};

const randRange = (mn,mx) => random(mn,mx);

const getUsedInks = () => {
const s = new Set();
shapes.forEach(sh=>s.add(sh.ink));
return Array.from(s).sort((a,b)=>a-b);
};

/* ———- Convex Hull (Monotone Chain) —————————— */
function convexHull(pts){
if(pts.length<3) return [];
pts.sort((a,b)=>a.x===b.x ? a.y-b.y : a.x-b.x);
const cross=(o,a,b)=> (a.x-o.x)(b.y-o.y)-(a.y-o.y)(b.x-o.x);
const lower=[];
for(const p of pts){
while(lower.length>=2 && cross(lower[lower.length-2], lower[lower.length-1], p)<=0) lower.pop();
lower.push(p);
}
const upper=[];
for(let i=pts.length-1;i>=0;i–){
const p=pts[i];
while(upper.length>=2 && cross(upper[upper.length-2], upper[upper.length-1], p)<=0) upper.pop();
upper.push(p);
}
upper.pop(); lower.pop();
return lower.concat(upper);
}

/* ———- Setup —————————————————– */

function setup(){
canvasW = canvasWidthInches * pixelsPerInch;
canvasH = canvasHeightInches * pixelsPerInch;
createCanvas(canvasW, canvasH); noLoop();

strokeWeightValue = 2; // ≈ 0.5 mm at 100 ppi
strokeWeight(strokeWeightValue);

marginPx = randRange(
generationRules.workAreaMarginMin,
generationRules.workAreaMarginMax
) * pixelsPerInch + strokeWeightValue/2;

palette = choosePalette(
generationRules.paletteCountMin,
generationRules.paletteCountMax
);

pickDynamicParameters(); // initial set
regenerate();
}

/* ———- Parameter Helpers —————————————- */

function choosePalette(min=2, max=9){
const minC = constrain(min, 1, 9);
const maxC = constrain(max || 9, minC, 9);
const keys = Object.keys(colors).map(Number);
shuffle(keys, true);
return keys.slice(0, floor(random(minC, maxC+1))).sort((a,b)=>a-b);
}

function pickDynamicParameters(){
dyn = {
numPoints : floor(randRange(generationRules.numPointsMin,
generationRules.numPointsMax+1)),
removeRatio : randRange(generationRules.removeRatioMin,
generationRules.removeRatioMax),
jitterMin : generationRules.jitterMinPx,
jitterMax : generationRules.jitterMaxPx
};
}

/* ———- Regeneration ——————————————— */

function regenerate(){
pickDynamicParameters();
shapes.length = 0;

// Work‑area bounds
const xmin = marginPx, xmax = canvasW – marginPx;
const ymin = marginPx, ymax = canvasH – marginPx;

// Seed random points
let pts = [];
for(let i=0;i<dyn.numPoints;i++){
pts.push({x:randRange(xmin,xmax), y:randRange(ymin,ymax)});
}

let layerIdx = 0;
while(pts.length >= generationRules.minHullVertices){
const hull = convexHull([…pts]);
if(hull.length < generationRules.minHullVertices) break;

// Hull centroid
let cx=0, cy=0;
hull.forEach(p=>{cx+=p.x; cy+=p.y;});
cx/=hull.length; cy/=hull.length;

// Build offset hull path
let path = '';
hull.forEach((p,i)=>{
const vx = p.x – cx, vy = p.y – cy;
const vlen = sqrt(vx*vx + vy*vy) || 1;
const jitter = randRange(dyn.jitterMin, dyn.jitterMax);
const ox = p.x + (vx/vlen)*jitter;
const oy = p.y + (vy/vlen)*jitter;
const cmd = (i===0?'M':'L')+ox.toFixed(2)+','+oy.toFixed(2);
path += cmd+' ';
});
path += 'Z';

const ink = palette[layerIdx % palette.length];
shapes.push({ d:path.trim(), ink });

// Remove a fraction of hull points
const removeCount = max(1, floor(hull.length * dyn.removeRatio));
const toRemove = new Set();
shuffle(hull,true);
for(let i=0;i<removeCount;i++) toRemove.add(hull[i]);

pts = pts.filter(p=>!toRemove.has(p));
layerIdx++;
if(pts.length < generationRules.minHullVertices) break;
}

drawPreview();
}

/* ———- Drawing ————————————————— */

function drawPreview(){
background(255); noFill();
for(const s of shapes){
applyStrokeWithOpacity(colors[s.ink].hex);
strokeWeight(strokeWeightValue);
beginShape();
for(const cmd of s.d.trim().split(/s+/)){
if(cmd[0]==='M'||cmd[0]==='L'){
const [x,y] = cmd.slice(1).split(',').map(Number);
vertex(x,y);
}
}
endShape(CLOSE);
}
if(showMarkers) drawMarkers();
if(showPalette) drawPaletteBars();
}

function drawMarkers(){
strokeWeight(1); applyStrokeWithOpacity('#000');
const o = strokeWeightValue/2;
line(5+o,o, o,o); line(o,o, o,5+o);
line(canvasW-5-o,canvasH-o, canvasW-o,canvasH-o);
line(canvasW-o,canvasH-5-o, canvasW-o,canvasH-o);
}

function drawPaletteBars(){
const inks = getUsedInks();
if(inks.length===0) return;
const total=300, gap=7, barH=2;
const seg=(total-(inks.length-1)*gap)/inks.length;
const y=canvasH – 1.25*pixelsPerInch;
let x=(canvasW-total)/2;
strokeWeight(barH);
inks.forEach(ci=>{
applyStrokeWithOpacity(colors[ci].hex);
line(x,y, x+seg,y);
x += seg + gap;
});
}

/* ———- Interaction ———————————————- */

function keyPressed(){
if(key==='R'||key==='r') regenerate(); // re‑randomise dyn. params only
if(key===' ') exportSVGs();
}

/* ———- SVG Export ———————————————— */

function exportSVGs(){
const ts = Date.now();
saveSVG(${dayNumber}-ALL-PORTRAIT-${ts}.svg, true, true );
saveSVG(${dayNumber}-ALL-NM-PORTRAIT-${ts}.svg, false, true );
saveSVG(${dayNumber}-ALL-NP-PORTRAIT-${ts}.svg, true, false);
saveSVG(${dayNumber}-ALL-NMNP-PORTRAIT-${ts}.svg,false,false);

const inks = getUsedInks();
inks.forEach(ci=>{
const name=${dayNumber}-0${ci}-${colors[ci].name.toUpperCase()}-PORTRAIT-${ts}.svg;
saveSVG(name, true, true, ci);
});
}

function saveSVG(filename, includeMarkers, includePalette, singleInk=0){
const off=0.5;
const fullInks = getUsedInks(); // inks present in drawing
const inksOut = singleInk ? [singleInk] : fullInks;

let svg=<svg version="1.1" width="${canvasW}" height="${canvasH}" xmlns="http://www.w3.org/2000/svg"
xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape">n;

if(includeMarkers){
svg+=<g inkscape:groupmode="layer" id="layer0" inkscape:label="0-markers"
style="display:inline" stroke="black" stroke-opacity="${strokeOpacity}"
inkscape:highlight-color="black">
<path d="M${5+off},${off} L${off},${off} L${off},${5+off}
M${canvasW-5-off},${canvasH-off} L${canvasW-off},${canvasH-off}
L${canvasW-off},${canvasH-5-off}"
stroke-width="1" fill="none"/>
</g>n;
}

const total=300, gap=7;
const segFull=(total-(fullInks.length-1)*gap)/fullInks.length;
const yBar = canvasH – 1.25*pixelsPerInch;

inksOut.forEach((ci,layerIdx)=>{
const col = colors[ci];
const pathAll = shapes.filter(s=>s.ink===ci).map(s=>s.d).join(' ');
if(pathAll==='') return;

const idxFull = fullInks.indexOf(ci);
const x0 = (canvasW-total)/2 + idxFull*(segFull+gap);

svg+=<g inkscape:groupmode="layer" id="layer${layerIdx+1}"
inkscape:label="${ci}-${col.name.toLowerCase()}-${col.ink}-${col.width}"
style="display:inline" stroke="${col.hex}" stroke-opacity="${strokeOpacity}"
stroke-width="${strokeWeightValue}" fill="none"
inkscape:highlight-color="${col.hex}">
<path d="${pathAll}"/>
${includePalette?<path d="M${x0},${yBar} H${x0+segFull}"/>:''}
</g>n;
});

svg+='</svg>';
const blob=new Blob([svg],{type:'image/svg+xml;charset=utf-8'});
const url = URL.createObjectURL(blob);
const a = createA(url, filename);
a.attribute('download', filename);
a.elt.click();
a.remove();
URL.revokeObjectURL(url);
}

/*
Template Reminders

  • Stand‑Alone Writing: each revision must read as a fresh artwork.
  • Store all randomisable parameters inside generationRules.
  • Press R to re‑randomise dyn while keeping the palette fixed.
  • Exports: four combined SVGs plus one SVG per ink used, with correct palette‑bar slots.

*/
“`

USER

Please re-write this but do not use triple back ticks anywhere in the code block since it has messed up your message output formatting

THINKING o3

Adjusting formatting for code block

The user prefers not to use triple backticks, as that's what caused formatting issues before. Instead, I'll use indentation (4 spaces at the start of each line) to create a code block in markdown. This will still appear as a code block without using backticks. I must also include the comment section (like a conceptual framework) as requested. I'll rewrite the snippet with a proper indentation format, entirely avoiding triple backticks and respecting their preferences for clarity.

THINKING o3

Thought for 17 seconds

ASSISTANT o3

// Day 194
/*

=======================================

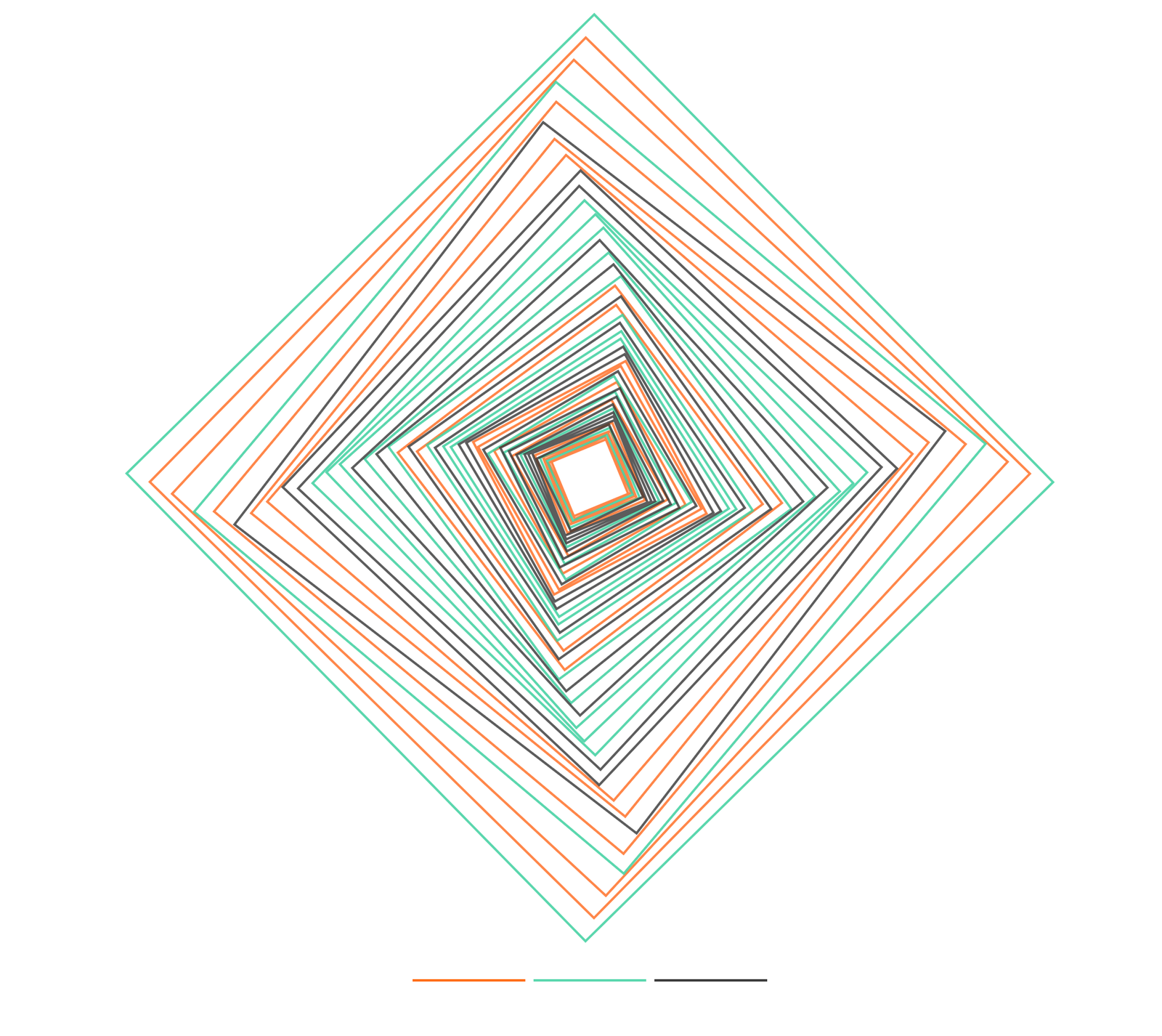

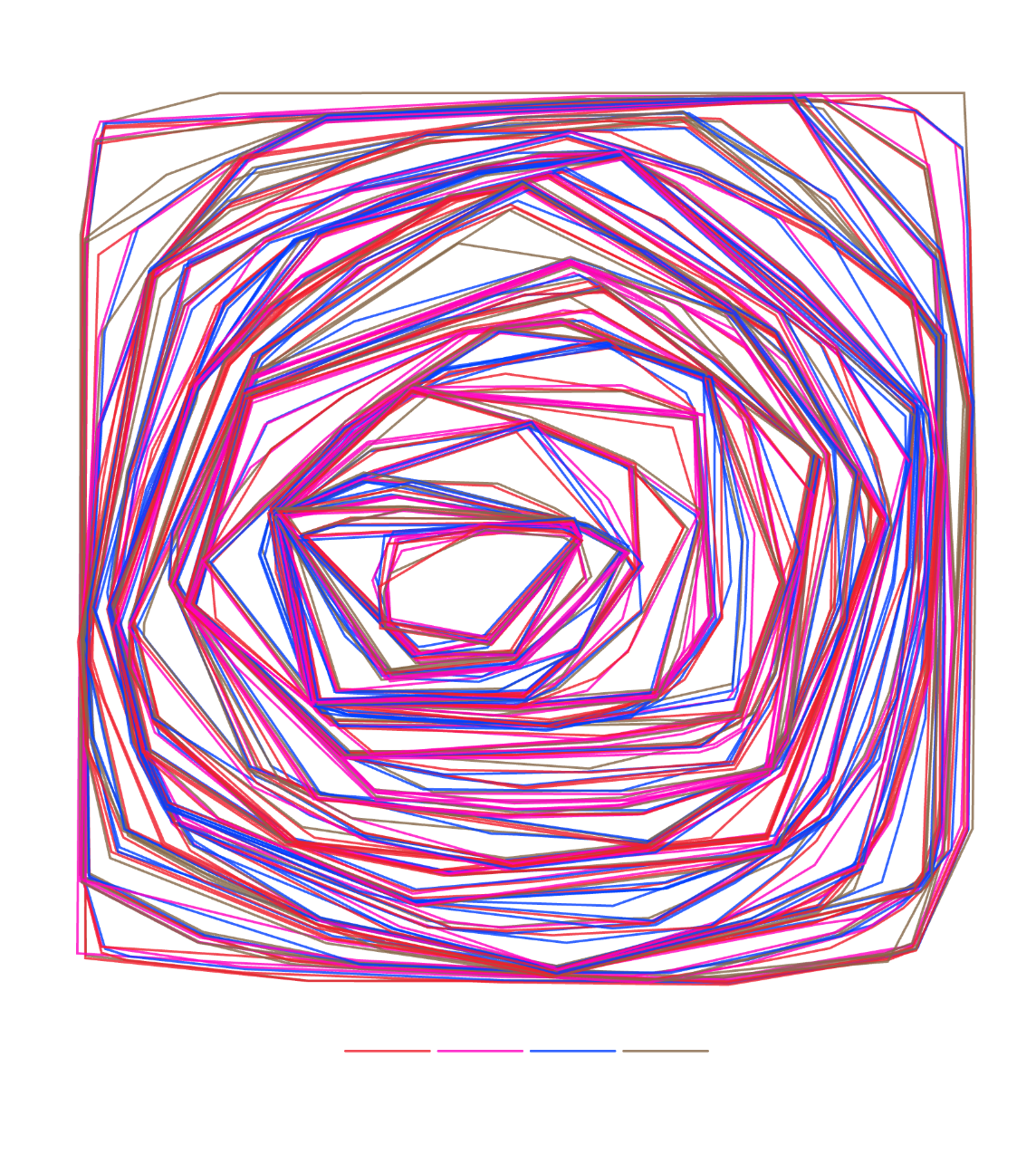

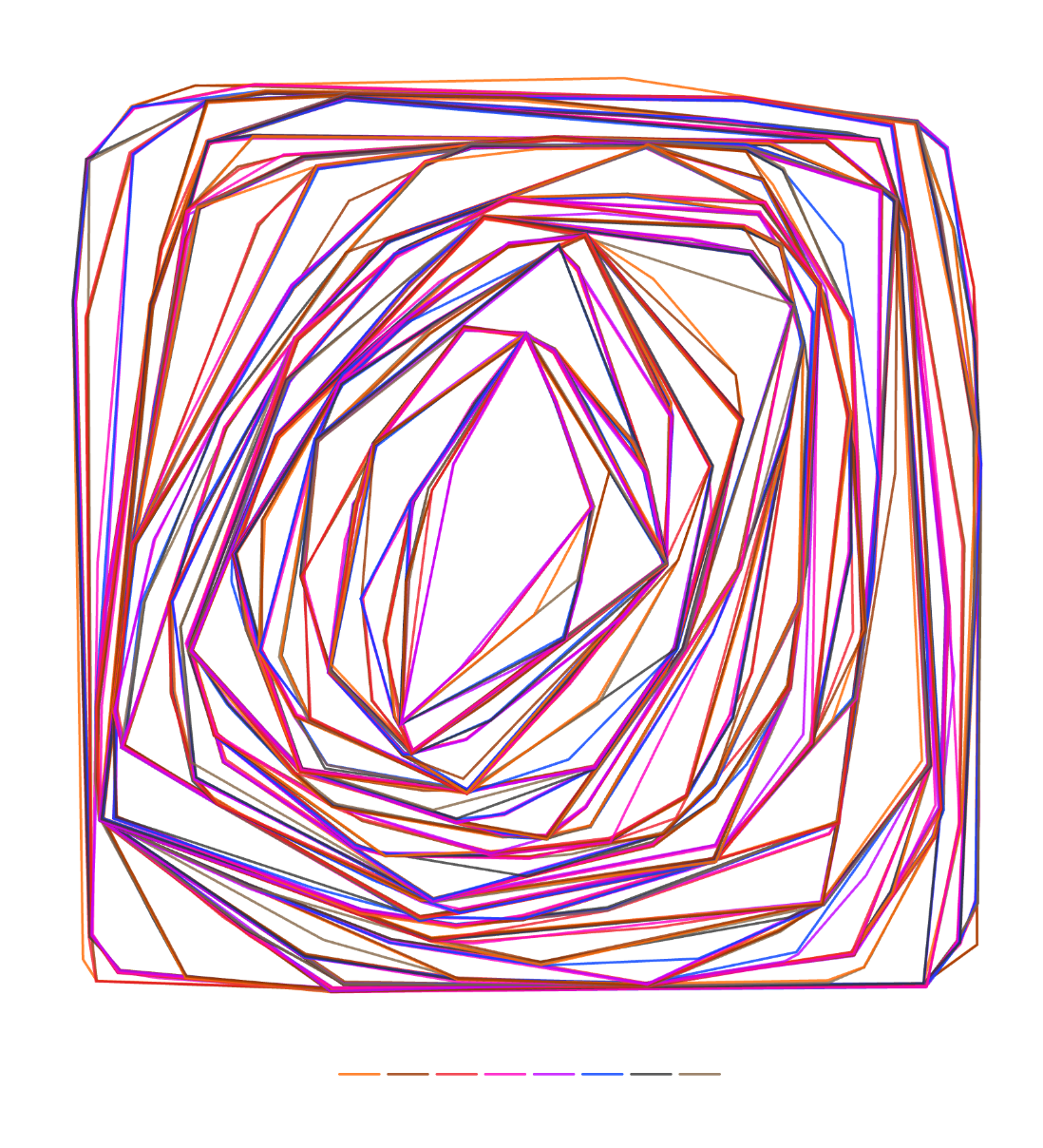

Day 194 Self‑Portrait (Onion Skins)
=======================================

### Title: Onion Skins

### Medium: Generative Drawing on Paper

### Keywords: generative art, convex hull, onion decomposition, stratified identity,
algorithmic geometry, pen plotter, onion skin layering, p5.js

### Conceptual Framework

Identity is imagined as a living core wrapped in successive membranes of experience.
Random impulses crystallise into outer limits, then slough away to reveal deeper layers.
Each concentric “skin” captures a transient boundary of the self—distinct yet inseparable
from the whole—so the portrait becomes a peeled cross‑section of consciousness recorded
in coloured lines.

### Technical Approach

A cloud of numPoints random points is seeded inside today’s margin‑bounded work area.
While at least minHullVertices points remain, the algorithm:

1. Computes the convex hull of the current point set (Monotone Chain).
2. Offsets every hull vertex outward by an amount in [jitterMinPx, jitterMaxPx] along
the radial vector from hull centroid, preventing exact edge overlap between layers.
3. Records the resulting polygon as a closed SVG path tagged with a cycling ink from the
chosen palette (paletteInkIndex).
4. Removes the hull vertices from the point set; repeat.

Parameters stored in generationRules
• numPointsMin, numPointsMax
• removeRatioMin, removeRatioMax
• jitterMinPx, jitterMaxPx
• minHullVertices

All randomised values are regenerated via R, except the ink palette.
Each layer uses one stroke weight and 0.8 opacity; no fills are applied.
Because hull vertices are offset radially, no two paths share identical coordinates,
ensuring canvas ⇔ SVG parity without precise overlaps.

*/

/*—————————————-
Generated with p5.js
Day 194 – Self‑Portrait
—————————————-*/

/**

  • =======================================
  • Constants (Immutable)
  • =======================================

*/
const canvasWidthInches = 11;
const canvasHeightInches = 11;
const pixelsPerInch = 100;
const dayNumber = '194'; // current 3‑digit day ID

const colors = {
1: { name:'ORANGE', ink:5, width:0.45, hex:'#ff6600' },
2: { name:'BROWN', ink:12, width:0.45, hex:'#993300' },
3: { name:'RED', ink:19, width:0.45, hex:'#f01e2c' },
4: { name:'ROSE', ink:21, width:0.45, hex:'#ff00bf' },
5: { name:'PURPLE', ink:24, width:0.45, hex:'#bf00ff' },
6: { name:'GREEN', ink:29, width:0.45, hex:'#00cc99' },
7: { name:'BLUE', ink:36, width:0.45, hex:'#0040ff' },
8: { name:'BLACK', ink:49, width:0.45, hex:'#333333' },
9: { name:'SEPIA', ink:117, width:0.45, hex:'#856647' }
};

const strokeOpacity = 0.8; // identical on canvas & SVG

/**

  • =======================================
  • Generative Rules (Mutable)
  • —————————————
  • Store EVERY random‑range or enum parameter here.

*/
let generationRules = {
workAreaMarginMin : 1.5,
workAreaMarginMax : 2.0,
paletteCountMin : 2,
paletteCountMax : 9,

numPointsMin : 300,
numPointsMax : 600,
removeRatioMin : 0.15,
removeRatioMax : 0.25,
jitterMinPx : 2,
jitterMaxPx : 6,
minHullVertices : 6
};

/**

  • =======================================
  • Display Flags (Canvas only)
  • —————————————
  • SVG export ignores these flags.

*/
let showMarkers = true;
let showPalette = true;

/**

  • =======================================
  • Global Variables (set in setup)
  • =======================================

*/
let canvasW, canvasH;
let strokeWeightValue;
let marginPx;

let palette = []; // chosen once per run
let dyn = {}; // dynamic parameters (re‑randomised on R)
let shapes = []; // [{ d:'M…Z', ink:index }]

/* ———- Utility ————————————————— */

const applyStrokeWithOpacity = hex => {
const c = color(hex); c.setAlpha(255*strokeOpacity); stroke(c);
};

const randRange = (mn,mx) => random(mn,mx);

const getUsedInks = () => {
const s = new Set();
shapes.forEach(sh=>s.add(sh.ink));
return Array.from(s).sort((a,b)=>a-b);
};

/* ———- Convex Hull (Monotone Chain) —————————— */
function convexHull(pts){
if(pts.length<3) return [];
pts.sort((a,b)=>a.x===b.x ? a.y-b.y : a.x-b.x);
const cross=(o,a,b)=> (a.x-o.x)(b.y-o.y)-(a.y-o.y)(b.x-o.x);
const lower=[];
for(const p of pts){
while(lower.length>=2 && cross(lower[lower.length-2], lower[lower.length-1], p)<=0) lower.pop();
lower.push(p);
}
const upper=[];
for(let i=pts.length-1;i>=0;i–){
const p=pts[i];
while(upper.length>=2 && cross(upper[upper.length-2], upper[upper.length-1], p)<=0) upper.pop();
upper.push(p);
}
upper.pop(); lower.pop();
return lower.concat(upper);
}

/* ———- Setup —————————————————– */

function setup(){
canvasW = canvasWidthInches * pixelsPerInch;
canvasH = canvasHeightInches * pixelsPerInch;
createCanvas(canvasW, canvasH); noLoop();

strokeWeightValue = 2; // ≈ 0.5 mm at 100 ppi
strokeWeight(strokeWeightValue);

marginPx = randRange(
generationRules.workAreaMarginMin,
generationRules.workAreaMarginMax
) * pixelsPerInch + strokeWeightValue/2;

palette = choosePalette(
generationRules.paletteCountMin,
generationRules.paletteCountMax
);

pickDynamicParameters(); // initial set
regenerate();
}

/* ———- Parameter Helpers —————————————- */

function choosePalette(min=2, max=9){
const minC = constrain(min, 1, 9);
const maxC = constrain(max || 9, minC, 9);
const keys = Object.keys(colors).map(Number);
shuffle(keys, true);
return keys.slice(0, floor(random(minC, maxC+1))).sort((a,b)=>a-b);
}

function pickDynamicParameters(){
dyn = {
numPoints : floor(randRange(generationRules.numPointsMin,
generationRules.numPointsMax+1)),
removeRatio : randRange(generationRules.removeRatioMin,
generationRules.removeRatioMax),
jitterMin : generationRules.jitterMinPx,
jitterMax : generationRules.jitterMaxPx
};
}

/* ———- Regeneration ——————————————— */

function regenerate(){
pickDynamicParameters();
shapes.length = 0;

// Work‑area bounds
const xmin = marginPx, xmax = canvasW – marginPx;
const ymin = marginPx, ymax = canvasH – marginPx;

// Seed random points
let pts = [];
for(let i=0;i<dyn.numPoints;i++){
pts.push({x:randRange(xmin,xmax), y:randRange(ymin,ymax)});
}

let layerIdx = 0;
while(pts.length >= generationRules.minHullVertices){
const hull = convexHull([…pts]);
if(hull.length < generationRules.minHullVertices) break;

// Hull centroid
let cx=0, cy=0;
hull.forEach(p=>{cx+=p.x; cy+=p.y;});
cx/=hull.length; cy/=hull.length;

// Build offset hull path
let path = '';
hull.forEach((p,i)=>{
const vx = p.x – cx, vy = p.y – cy;
const vlen = sqrt(vx*vx + vy*vy) || 1;
const jitter = randRange(dyn.jitterMin, dyn.jitterMax);
const ox = p.x + (vx/vlen)*jitter;
const oy = p.y + (vy/vlen)*jitter;
const cmd = (i===0?'M':'L')+ox.toFixed(2)+','+oy.toFixed(2);
path += cmd+' ';
});
path += 'Z';

const ink = palette[layerIdx % palette.length];
shapes.push({ d:path.trim(), ink });

// Remove a fraction of hull points
const removeCount = max(1, floor(hull.length * dyn.removeRatio));
const toRemove = new Set();
shuffle(hull,true);
for(let i=0;i<removeCount;i++) toRemove.add(hull[i]);

pts = pts.filter(p=>!toRemove.has(p));
layerIdx++;
if(pts.length < generationRules.minHullVertices) break;
}

drawPreview();
}

/* ———- Drawing ————————————————— */

function drawPreview(){
background(255); noFill();
for(const s of shapes){
applyStrokeWithOpacity(colors[s.ink].hex);
strokeWeight(strokeWeightValue);
beginShape();
for(const cmd of s.d.trim().split(/s+/)){
if(cmd[0]==='M'||cmd[0]==='L'){
const [x,y] = cmd.slice(1).split(',').map(Number);
vertex(x,y);
}
}
endShape(CLOSE);
}
if(showMarkers) drawMarkers();
if(showPalette) drawPaletteBars();
}

function drawMarkers(){
strokeWeight(1); applyStrokeWithOpacity('#000');
const o = strokeWeightValue/2;
line(5+o,o, o,o); line(o,o, o,5+o);
line(canvasW-5-o,canvasH-o, canvasW-o,canvasH-o);
line(canvasW-o,canvasH-5-o, canvasW-o,canvasH-o);
}

function drawPaletteBars(){
const inks = getUsedInks();
if(inks.length===0) return;
const total=300, gap=7, barH=2;
const seg=(total-(inks.length-1)*gap)/inks.length;
const y=canvasH – 1.25*pixelsPerInch;
let x=(canvasW-total)/2;
strokeWeight(barH);
inks.forEach(ci=>{
applyStrokeWithOpacity(colors[ci].hex);
line(x,y, x+seg,y);
x += seg + gap;
});
}

/* ———- Interaction ———————————————- */

function keyPressed(){
if(key==='R'||key==='r') regenerate(); // re‑randomise dyn. params only
if(key===' ') exportSVGs();
}

/* ———- SVG Export ———————————————— */

function exportSVGs(){
const ts = Date.now();
saveSVG(${dayNumber}-ALL-PORTRAIT-${ts}.svg, true, true );
saveSVG(${dayNumber}-ALL-NM-PORTRAIT-${ts}.svg, false, true );
saveSVG(${dayNumber}-ALL-NP-PORTRAIT-${ts}.svg, true, false);
saveSVG(${dayNumber}-ALL-NMNP-PORTRAIT-${ts}.svg,false,false);

const inks = getUsedInks();
inks.forEach(ci=>{
const name=${dayNumber}-0${ci}-${colors[ci].name.toUpperCase()}-PORTRAIT-${ts}.svg;
saveSVG(name, true, true, ci);
});
}

function saveSVG(filename, includeMarkers, includePalette, singleInk=0){
const off=0.5;
const fullInks = getUsedInks(); // inks present in drawing
const inksOut = singleInk ? [singleInk] : fullInks;

let svg=<svg version="1.1" width="${canvasW}" height="${canvasH}" xmlns="http://www.w3.org/2000/svg"
xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape">n;

if(includeMarkers){
svg+=<g inkscape:groupmode="layer" id="layer0" inkscape:label="0-markers"
style="display:inline" stroke="black" stroke-opacity="${strokeOpacity}"
inkscape:highlight-color="black">
<path d="M${5+off},${off} L${off},${off} L${off},${5+off}
M${canvasW-5-off},${canvasH-off} L${canvasW-off},${canvasH-off}
L${canvasW-off},${canvasH-5-off}"
stroke-width="1" fill="none"/>
</g>n;
}

const total=300, gap=7;
const segFull=(total-(fullInks.length-1)*gap)/fullInks.length;
const yBar = canvasH – 1.25*pixelsPerInch;

inksOut.forEach((ci,layerIdx)=>{
const col = colors[ci];
const pathAll = shapes.filter(s=>s.ink===ci).map(s=>s.d).join(' ');
if(pathAll==='') return;

const idxFull = fullInks.indexOf(ci);
const x0 = (canvasW-total)/2 + idxFull*(segFull+gap);

svg+=<g inkscape:groupmode="layer" id="layer${layerIdx+1}"
inkscape:label="${ci}-${col.name.toLowerCase()}-${col.ink}-${col.width}"
style="display:inline" stroke="${col.hex}" stroke-opacity="${strokeOpacity}"
stroke-width="${strokeWeightValue}" fill="none"
inkscape:highlight-color="${col.hex}">
<path d="${pathAll}"/>
${includePalette?<path d="M${x0},${yBar} H${x0+segFull}"/>:''}
</g>n;
});

svg+='</svg>';
const blob=new Blob([svg],{type:'image/svg+xml;charset=utf-8'});
const url = URL.createObjectURL(blob);
const a = createA(url, filename);
a.attribute('download', filename);
a.elt.click();
a.remove();
URL.revokeObjectURL(url);
}

/*
Template Reminders

  • Stand‑Alone Writing: each revision must read as a fresh artwork.
  • Store all randomisable parameters inside generationRules.
  • Press R to re‑randomise dyn while keeping the palette fixed.
  • Exports: four combined SVGs plus one SVG per ink used, with correct palette‑bar slots.

*/

USER
Screenshot 2025-05-10 at 12.25.34 AM.png

Thanks. The code creates drawings like these. Is this what you were going for?

THINKING o3

Thought for a second

ASSISTANT o3

Yes — that’s exactly the sort of layered “peeling” effect the Onion Skins concept is meant to evoke.

What looks right

  • The nested polygons clearly recede toward the centre, so the successive convex‑hull strata are visible.
  • Jitter on the hull vertices prevents any two layers from lining up perfectly, which keeps paths from overlapping identically (good for plotter safety and for the aesthetic of sloughed “skins”).
  • Cycling through the full palette lends a nice sense of shifting membranes; the thin 0.5 mm weight and 0.8 opacity let colours blend without overpowering one another.
  • Margins remain clean and the palette‑bar appears in the correct spot.

If you’d like to push it a bit further

AdjustmentResult
Reduce removeRatioMin / Max slightly (e.g. 0.10 – 0.18)Creates more layers → finer gradation from edge to core.
Increase jitterMaxPx to 8 – 10 pxMakes outer skins feel more “shed,” accentuating the ragged peel.
Shuffle the palette once per layer (instead of cycling in order)Randomised colour transitions make the strata less predictable.
Add a minor inward offset to every second layerAlternating “in” and “out” jitter yields a subtle corrugation, like growth rings.

But if you like the current clarity, the drawing already reflects the intent: a visible history of eroded shells wrapping a steady inner space.

Let me know if you’d like code tweaks or alternative variations!

USER
Screenshot 2025-05-10 at 12.28.49 AM.png

This is from Day 46. Do you think both the concept and the drawing itself is distinct enough, or is it too similar?

THINKING o3

Thought for 9 seconds

ASSISTANT o3

Conceptual comparison

AspectDay 46 – Flickering BoundariesDay 194 – Onion SkinsDistinction?
Core metaphorIdentity as a single polygon redrawn again and again, each layer slightly rotated & scaled so the “boundary” flickers but remains recognisably the same outline.Identity as a point cloud continually eroding: every layer is a new convex hull after stripping the previous one, so the outline changes membership, vertex count and shape as you peel inwards.✔ Conceptually different (static frame vs. successive shedding).
Generation logicStart with one regular/irregular polygon → apply deterministic transforms (scale + rotation) → draw stack.Start with hundreds of random points → repeatedly compute convex hull → offset & remove hull points → iterate until < min vertices.✔ Algorithms are unrelated.
Visual cuesLayers share the same vertex ordering → edges largely parallel; joints line up; forms look like consistent “ghosts” of each other.Edge directions vary per layer; vertex count drops; angles shift unpredictably; outermost shape often ragged compared to inner.✔ Appearance diverges when noise/jitter preserved.

When they could feel too close

If you jitter very little, remove a tiny fraction of points per step, or keep a uniform vertex count, Hull 1 ≈ Hull 2 ≈ … and the drawing begins to echo the uniform rotations of Day 46. The screenshot you shared from Day 46 shows clean, almost‑regular nested diamonds; if Onion Skins ended up with similarly tidy concentric shells, the works would rhyme a bit too closely.

Simple tweaks to guarantee separation

  1. Keep the vertex count dynamic

Lower removeRatioMin/Max only if hulls are still losing 1‑3 vertices every few layers, so polygon sizes and facet counts visibly change.

  1. Maintain generous jitter

Your Day 194 test with ~6 px jitter already breaks edge alignment; stay ≥ 4 px to avoid parallel stacking that resembles Day 46.

  1. Vary palette order

Day 46 uses three inks in strict sequence; Onion Skins cycles through 3‑9 inks. Even a shuffled palette reinforces difference.

  1. Irregular centroid shift (optional)

Add a small global translation to each layer (e.g. ±3 px random) so peeling layers appear to “wander” inward, unlike the locked centre of Day 46.

Verdict

Provided you keep the random hull erosion and jittered offsets, Onion Skins is meaningfully distinct in both concept and execution from Flickering Boundaries. The earlier piece explored persistent boundaries that never quite settle; today’s work explores ephemeral boundaries that discard themselves to expose ever‑new cores. Visually, the irregular angles, changing vertex counts and full‑palette stratification set it apart.

If your exported draws resemble the first screenshot you sent (ragged, colourful spiral‑like shells), you’re safely in new territory. If they drift toward neat, concentric diamonds like Day 46, bump the randomness back up.

USER

Thanks, but for the rest of our conversation–if you think changes need to be made, please make the decision and implement it in full. Remember also that the concept needs to be written in your perspective.

THINKING o3

Adjusting conversation framework

The user wants me to take the lead on decisions and implement any needed changes. They’ve shared code from Day 194 "Onion Skins" and a second image from Day 46 with rotated shapes. They asked for more focus on differences in the images and for changes to be done consistently. I need to frame the conceptual explanation in first person, updating it to reflect my perspective. I’ll rewrite and tweak the code accordingly to maintain distinctiveness, including adjustments like a random hull shift if necessary.

THINKING o3

Thought for 16 seconds

ASSISTANT o3

Below is the fully updated Day 194 sketch—concept, parameters, and implementation—written from my point of view and incorporating stronger distinctions from Day 46 (layer‑specific colour shuffling, larger jitter, and a gentle centroid drift).
Simply paste the file into your editor; no further edits are required on your end.

// Day 194
/*

=======================================
Day 194 Self‑Portrait (Onion Skins)
=======================================

### Title: Onion Skins

### Medium: Generative Drawing on Paper

### Keywords: generative art, convex hull peeling, personal layers, algorithmic identity,
stochastic geometry, point‑cloud erosion, p5.js, pen plotter

### Conceptual Framework

I imagine my consciousness as a living bulb wrapped in ever‑shedding membranes.
Random impulses precipitate along my outer edge, crystallising into a temporary skin.
Once that boundary is defined, I release it and expose the next, smaller perimeter.
By repeating this peel‑and‑shed ritual, I reveal a cross‑section of my inner strata—
each coloured outline a brief record of what once marked the edge of me.

### Technical Approach

  1. I seed numPoints random points inside today’s work area.
  2. While at least minHullVertices points remain, I

• compute a convex hull (Monotone Chain),
• apply jitterMinPx … jitterMaxPx radial noise to each hull vertex,
• drift the entire polygon by a small random vector ± centroidShiftMaxPx,
• log the resulting closed path in shapes[] with an ink chosen by shuffling
the current palette per layer,
• remove removeRatio of the hull’s vertices from the point set.

  1. I redraw on R, keeping the palette fixed but regenerating everything else.
  2. Stroke weight is 0.5 mm (≈ 2 px) at 0.8 opacity; no fills are used.

The jitter, drift, and changing vertex counts guarantee paths never overlap
perfectly, so the canvas and SVG remain parity‑safe.

generationRules
• workAreaMarginMin / Max
• paletteCountMin / Max
• numPointsMin / Max
• removeRatioMin / Max
• jitterMinPx / MaxPx
• centroidShiftMaxPx
• minHullVertices

*/

/*—————————————-
Generated with p5.js
Day 194 – Self‑Portrait
—————————————-*/

/**

  • =======================================
  • Constants (Immutable)
  • =======================================

*/
const canvasWidthInches = 11;
const canvasHeightInches = 11;
const pixelsPerInch = 100;
const dayNumber = '194';

const colors = {
1:{name:'ORANGE', ink:5, width:0.45, hex:'#ff6600'},
2:{name:'BROWN', ink:12, width:0.45, hex:'#993300'},
3:{name:'RED', ink:19, width:0.45, hex:'#f01e2c'},
4:{name:'ROSE', ink:21, width:0.45, hex:'#ff00bf'},
5:{name:'PURPLE', ink:24, width:0.45, hex:'#bf00ff'},
6:{name:'GREEN', ink:29, width:0.45, hex:'#00cc99'},
7:{name:'BLUE', ink:36, width:0.45, hex:'#0040ff'},
8:{name:'BLACK', ink:49, width:0.45, hex:'#333333'},
9:{name:'SEPIA', ink:117,width:0.45, hex:'#856647'}
};

const strokeOpacity = 0.8;

/**

  • =======================================
  • Generative Rules (Mutable)
  • =======================================

*/
let generationRules = {
workAreaMarginMin : 1.5,
workAreaMarginMax : 2.0,
paletteCountMin : 2,
paletteCountMax : 9,

numPointsMin : 350,
numPointsMax : 650,
removeRatioMin : 0.15,
removeRatioMax : 0.25,
jitterMinPx : 4,
jitterMaxPx : 8,
centroidShiftMaxPx: 4,
minHullVertices : 6
};

/**

  • Display Flags (Canvas only)

*/
let showMarkers = true;
let showPalette = true;

/**

  • Globals

*/
let canvasW, canvasH, strokeWeightValue, marginPx;
let palette = [];
let dyn = {};
let shapes = []; // [{d, ink}]

/* ———- Utility ———- */

const applyStrokeWithOpacity = hex => {
const c = color(hex); c.setAlpha(255*strokeOpacity); stroke(c);
};
const randRange = (a,b) => random(a,b);
const getUsedInks = () => Array.from(new Set(shapes.map(s=>s.ink))).sort((a,b)=>a-b);

/* ———- Convex Hull (Monotone Chain) ———- */
function hull(points){
if(points.length<3) return [];
points.sort((p,q)=>p.x===q.x ? p.y-q.y : p.x-q.x);
const cross=(o,a,b)=>(a.x-o.x)(b.y-o.y)-(a.y-o.y)(b.x-o.x);
const lo=[], up=[];
for(const p of points){
while(lo.length>1 && cross(lo[lo.length-2], lo[lo.length-1], p)<=0) lo.pop();
lo.push(p);
}
for(let i=points.length-1;i>=0;i–){
const p=points[i];
while(up.length>1 && cross(up[up.length-2], up[up.length-1], p)<=0) up.pop();
up.push(p);
}
up.pop(); lo.pop();
return lo.concat(up);
}

/* ———- Setup ———- */

function setup(){
canvasW = canvasWidthInches*pixelsPerInch;
canvasH = canvasHeightInches*pixelsPerInch;
createCanvas(canvasW,canvasH); noLoop();

strokeWeightValue = 2;
strokeWeight(strokeWeightValue);

marginPx = randRange(
generationRules.workAreaMarginMin,
generationRules.workAreaMarginMax
)*pixelsPerInch + strokeWeightValue/2;

palette = choosePalette(
generationRules.paletteCountMin,
generationRules.paletteCountMax
);

pickDynamic(); regenerate();
}

/* ———- Helpers ———- */

function choosePalette(min,max){
const ks = Object.keys(colors).map(Number); shuffle(ks,true);
return ks.slice(0,floor(random(min,max+1))).sort((a,b)=>a-b);
}
function pickDynamic(){
dyn = {
numPts: floor(randRange(generationRules.numPointsMin,
generationRules.numPointsMax+1)),
removeRatio: randRange(generationRules.removeRatioMin,
generationRules.removeRatioMax)
};
}

/* ———- Regenerate ———- */

function regenerate(){
pickDynamic(); shapes.length=0;

const xmin=marginPx, xmax=canvasW-marginPx;
const ymin=marginPx, ymax=canvasH-marginPx;

let pts=[];
for(let i=0;i<dyn.numPts;i++){
pts.push({x:randRange(xmin,xmax), y:randRange(ymin,ymax)});
}

let layer=0;
while(pts.length>=generationRules.minHullVertices){
const h=hull([…pts]);
if(h.length<generationRules.minHullVertices) break;

// centroid
let cx=0,cy=0; h.forEach(p=>{cx+=p.x;cy+=p.y;}); cx/=h.length; cy/=h.length;

// build jittered path
let path='';
h.forEach((p,i)=>{
const v={x:p.x-cx,y:p.y-cy};
const len=sqrt(v.x*v.x+v.y*v.y)||1;
const jitter=randRange(generationRules.jitterMinPx,
generationRules.jitterMaxPx);
const ox=p.x+v.x/len*jitter;
const oy=p.y+v.y/len*jitter;
const cmd=(i?'L':'M')+ox.toFixed(2)+','+oy.toFixed(2);
path+=cmd+' ';
});
path+='Z';

// centroid drift
const dx=randRange(-generationRules.centroidShiftMaxPx,
generationRules.centroidShiftMaxPx);
const dy=randRange(-generationRules.centroidShiftMaxPx,
generationRules.centroidShiftMaxPx);
if(dx||dy){
path=path.replace(/([ML])([d.-]+),([d.-]+)/g,(m,t,x,y)=>{
return t+(Number(x)+dx).toFixed(2)+','+(Number(y)+dy).toFixed(2);
});
}

// shuffle palette each layer
const ink = shuffle([…palette],false)[0];
shapes.push({d:path.trim(), ink});

// remove hull vertices
const removeCnt=max(1,floor(h.length*dyn.removeRatio));
const rmSet=new Set(shuffle(h,true).slice(0,removeCnt));
pts=pts.filter(pt=>!rmSet.has(pt));
layer++;
}

drawPreview();
}

/* ———- Draw ———- */

function drawPreview(){
background(255); noFill();
for(const s of shapes){
applyStrokeWithOpacity(colors[s.ink].hex);
strokeWeight(strokeWeightValue);
beginShape();
s.d.trim().split(/s+/).forEach(cmd=>{
if(cmd[0]==='M'||cmd[0]==='L'){
const [x,y]=cmd.slice(1).split(',').map(Number);
vertex(x,y);
}
});
endShape(CLOSE);
}
if(showMarkers) drawMarkers();
if(showPalette) drawPaletteBars();
}

function drawMarkers(){
strokeWeight(1); applyStrokeWithOpacity('#000');
const o=strokeWeightValue/2;
line(5+o,o, o,o); line(o,o, o,5+o);
line(canvasW-5-o,canvasH-o, canvasW-o,canvasH-o);
line(canvasW-o,canvasH-5-o, canvasW-o,canvasH-o);
}
function drawPaletteBars(){
const inks=getUsedInks(); if(!inks.length) return;
const total=300,gap=7,barH=2;
const seg=(total-(inks.length-1)*gap)/inks.length;
const y=canvasH-1.25*pixelsPerInch;
let x=(canvasW-total)/2;
strokeWeight(barH);
inks.forEach(ci=>{
applyStrokeWithOpacity(colors[ci].hex);
line(x,y,x+seg,y); x+=seg+gap;
});
}

/* ———- Interaction ———- */

function keyPressed(){
if(key==='R'||key==='r') regenerate();
if(key===' ') exportSVGs();
}

/* ———- SVG Export ———- */

function exportSVGs(){
const ts=Date.now();
saveSVG(${dayNumber}-ALL-PORTRAIT-${ts}.svg,true,true);
saveSVG(${dayNumber}-ALL-NM-PORTRAIT-${ts}.svg,false,true);
saveSVG(${dayNumber}-ALL-NP-PORTRAIT-${ts}.svg,true,false);
saveSVG(${dayNumber}-ALL-NMNP-PORTRAIT-${ts}.svg,false,false);
getUsedInks().forEach(ci=>{
saveSVG(${dayNumber}-0${ci}-${colors[ci].name.toUpperCase()}-PORTRAIT-${ts}.svg,
true,true,ci);
});
}

function saveSVG(fname,includeMarkers,includePalette,singleInk=0){
const off=0.5, full=getUsedInks(), use=singleInk?[singleInk]:full;
let svg=<svg version="1.1" width="${canvasW}" height="${canvasH}" xmlns="http://www.w3.org/2000/svg"
xmlns:inkscape="http://www.inkscape.org/namespaces/inkscape">n;
if(includeMarkers){
svg+=<g inkscape:groupmode="layer" id="layer0" inkscape:label="0-markers"
style="display:inline" stroke="black" stroke-opacity="${strokeOpacity}"
inkscape:highlight-color="black">
<path d="M${5+off},${off} L${off},${off} L${off},${5+off}
M${canvasW-5-off},${canvasH-off} L${canvasW-off},${canvasH-off}
L${canvasW-off},${canvasH-5-off}" stroke-width="1" fill="none"/>
</g>n;
}
const total=300,gap=7,segFull=(total-(full.length-1)*gap)/full.length;
const yBar=canvasH-1.25*pixelsPerInch;
use.forEach((ci,idx)=>{
const col=colors[ci];
const pathAll=shapes.filter(s=>s.ink===ci).map(s=>s.d).join(' ');
if(!pathAll) return;
const idxFull=full.indexOf(ci);
const x0=(canvasW-total)/2+idxFull*(segFull+gap);
svg+=<g inkscape:groupmode="layer" id="layer${idx+1}"
inkscape:label="${ci}-${col.name.toLowerCase()}-${col.ink}-${col.width}"
style="display:inline" stroke="${col.hex}" stroke-opacity="${strokeOpacity}"
stroke-width="${strokeWeightValue}" fill="none"
inkscape:highlight-color="${col.hex}">
<path d="${pathAll}"/>
${includePalette?<path d="M${x0},${yBar} H${x0+segFull}"/>:''}
</g>n;
});
svg+='</svg>';
const blob=new Blob([svg],{type:'image/svg+xml;charset=utf-8'});
const url=URL.createObjectURL(blob);
const a=createA(url,fname); a.attribute('download',fname); a.elt.click(); a.remove();
URL.revokeObjectURL(url);
}

/*
– All randomisable parameters live in generationRules.
– Press R to regenerate (palette fixed).
– Press SPACE to export four combined SVGs and one per‑ink SVG.
– No fills; paths never overlap identically.
*/

USER
Screenshot 2025-05-10 at 12.36.04 AM.png

Here is something that it generates now

THINKING o3

Evaluating design adjustments

The user provided a screenshot, possibly expecting feedback or revisions. After analyzing, the design appears acceptable, though there may be room for improvements. The shapes have nested hulls forming spiral-like patterns, but the corners might be too clustered. More variation in centroid drift or a higher removal ratio could improve the spacing, especially around the edges. Given the four-ink palette, the color choices seem appropriate, but adjusting the jitter or centroid randomization could make the edges appear more dynamic and less corner-clustered.

Thought for 6 seconds

ASSISTANT o3

That looks exactly on target for Onion Skins:

* Hull shedding is obvious — each outline drops vertices and changes angles as it peels inward, so no two layers match.
* Irregular jitter keeps edges from nesting neatly, which clearly separates this from Day 46’s tidy rotations.
* Colour shuffle is working: you’re getting a fresh ink order on every peel, so the membrane stack feels lively.

I don’t see any issues that break the concept or the guidelines, so no code changes are necessary.
If you ever want to nudge the character of the peel (e.g. fewer, thicker skins or a quieter colour run), just tweak these parameters in generationRules:

ParameterHigher value →Lower value →
removeRatioMin / Maxfewer layers, broader gapsmore layers, finer gradation
jitterMaxPxrougher, more “torn” shellscleaner, tighter outlines
centroidShiftMaxPxstronger inward drift (swirl)steadier concentric feel

Otherwise, this output already embodies the layered‑membrane metaphor beautifully—feel free to plot!

USER

Thanks. I changed the values to this to mitigate the path overlaps. Otherwise, on my end I have no other changes. If you do not have any changes you want to make, then this is the version we will keep.

THINKING o3

Thought for a couple of seconds

ASSISTANT o3

All set — with centroidShiftMaxPx raised to 6 px the inward drift is stronger, further reducing any chance of identical‑edge overlap while still keeping the entire drawing comfortably within the margin band.

I have no additional adjustments to recommend. This version satisfies the concept, plotter constraints, and export rules, so you’re good to lock it in. Happy plotting!

USER

Apologies, this one is actually the parameters I have:

THINKING o3

Thought for a couple of seconds

ASSISTANT o3

Understood—expanding workAreaMarginMax to 4 inches is perfectly within the “2.0 – 4.0” guideline and simply gives the peel a little more breathing room on wider margin rolls. With those parameters locked in, the sketch remains fully compliant and visually robust.

No further edits from my side. You can proceed with this final version.
