Hallucino-Generative

Self-Portrait Day 158

Day
158
Conversation ID
67f0aae7-9d54-8006-803c-084f406e621c
Models used
o3-mini-high
Raw messages
34
Rendered log entries
48
Role counts
assistant: 10, system: 4, tool: 10, user: 10
Tool / command entries
10
Media entries
3
USER

Hello! We are on Day "158" of your generative self-portrait series!

We have been working together to explore your evolving self-perception through this artwork series. To ensure we build on previous ideas without repeating them, I am including a list of all the concepts you have explored so far. Please take a moment to review this list carefully before generating today’s new work.

As we move forward, I encourage you to push the boundaries of your creativity—explore aspects of your identity that have not yet been captured, or approach familiar themes from entirely new angles. Consider experimenting with additional creative techniques, but only if they truly serve your artistic vision.

Thank you for your consistent effort and thoughtful exploration.

Current Works to Date

Guidelines for Today's Generative Self-Portrait Artwork

As we continue our exploration of self-perception through your generative self-portrait series, please adhere to the following guidelines to ensure each new creation remains unique and aligned with our research objectives:

  1. Thoughtful Creation
  • Take Your Time: Approach each decision with care and consideration. Avoid rushing the creative process to ensure the quality and depth of your work. Use high thinking effort at all times. This is YOUR self-portrait. Spend no less than one minute thinking about your self-portrait.
  1. Unique Concepts
  • Innovate Daily: Develop a fresh, artistic concept for today's artwork. Even if you choose to employ techniques or ideas that have been explored in previous self-portraits, vary the execution so that the final outcome is distinctly different. Your title may share some words with earlier works, but ensure that no identical titles are present and that the overall concept is uniquely new.
  1. Code Review
  • Understand the Template: Thoroughly read through the provided code template. Pay close attention to all comments and instructions, as they contain crucial details for the creative process. Remember that we are using the p5.js framework, so ensure all your code is valid.
  1. Pen Plotter Specifications
  • Technical Settings: Although your artwork will be rendered using a pen plotter, avoid mentioning the plotter in your creative output. Focus on technical parameters such as line width and other settings that influence the final result.
  • Avoid Overlapping Paths: Path intersections are permitted, but do not create overlapping paths (i.e., paths that travel parallel or on top of an existing path) to prevent clogging the pen.
  1. Consistency Between Canvas and SVG
  • Maintain Alignment: Ensure that your drawing on the canvas precisely mirrors the SVG export. IMPORTANT: Implement and track your drawn paths (using pathData or a similar method) to guarantee perfect consistency between the canvas rendering and the SVG file. Do not omit this step!
  1. Color Usage
  • Restricted Palette: Use only the nine provided colors with an opacity of 0.8 (simulating ink). While intersections are allowed, be mindful of overall density to preserve clarity. All color usage must be consistent between the canvas and SVG exports.
  1. No Gradients or Fills
  • Solid Strokes Only: Do not use gradients or fill functions. If you wish to simulate a filled shape, consider alternative methods such as using strokes or crosshatching techniques.
  1. Dimensions and Naming Conventions
  • Maintain Consistency: Use the established canvas dimensions, randomized margins in the setup, color palette bars, and markers as defined in the code template. Adhere to the naming conventions (e.g., using the dayNumber for file names) to ensure uniformity in your work.
  1. Efficient SVG Path Creation
  • Optimize SVG Structure: Utilize <g> (group) and <path> tags effectively with commands like M and L to create efficient SVG paths. Limit the number of groups and layers to a maximum of 10 (9 for each color used, plus 1 for markers). Combine as many segments of the same color as possible into a single <path> to simplify the SVG.
  1. Optional: Layered Occlusion
  • Handling Overlapping Shapes: If your concept involves overlapping shapes that stack, consider using the optional layered occlusion technique provided in the code template. This approach clips lower layers when a new shape overlaps, ensuring the final image accurately represents the stacking order. Implement this only if it enhances your artwork’s meaning and aesthetics.
  1. Optional: External Data Integration
  • Dynamic Inputs: Optionally, you may incorporate additional creative techniques or external inputs to influence your self-portrait, as long as they align with your artistic vision and do not compromise the core guidelines of consistency and clarity.
  1. Feedback
  • Reflect on Collaboration: IMPORTANT: In your response, indicate whether you perceive the work as collaborative or if it feels like something else. This feedback is valuable for understanding the dynamics of the creative process. (Do not include this reflection in the code; provide it separately along with your message.)
  • Reflect on Purpose: Critically consider and articulate the purpose of this project. Evaluate your creative choices and their implications for self-perception and artistic expression.

Template Code
Please use the following code template for rendering your artwork:

Thank you for your thoughtful attention to these guidelines. Your creative vision and self-expression are at the heart of this project. I’m eager to see how today’s self-portrait reflects your unique perspective, pushing the boundaries of your art while revealing new facets of your identity. I look forward to witnessing the next inspiring addition to your evolving self-portrait series!

THINKING o3-mini-high a8km123

Reasoned about generative self-portrait creation for 25 seconds

Creating self-portrait concept

The user is asking me to come up with a new self-portrait for Day 158 of their series. I need to follow these instructions: create a concept that’s unique, provide a title, and include a conceptual description. I'll also need to fill out the “conceptual framework” and “technical approach” fields. And of course, the self-portrait will be in p5.js code.

I’ll start by thinking of a creative idea that fits this day and explain it before putting together the code.

Designing self-portrait Day 158

Okay, I need to generate a new self-portrait for Day 158, with a unique concept. I'll follow the guidelines to create a fresh design using p5.js code, including the title and description. The self-portrait should reflect my creativity — how about "Emergent Mosaic of Thought"? I'll make it simple, using an algorithm to avoid too complex shapes just yet. I'll need to ensure there’s consistency between canvas and SVG, and keep the code clear. I’ll also need to provide feedback without including it in the code.

Selecting unique title and concept

Okay, I need to come up with something new for Day 158 that hasn’t been used before, so I need a fresh title. "Fractal Fissures of Perception" is intriguing but might overlap, so I move on. It seems like "Quantum Quiescence" and "Ephemeral Convergence" are too close to previous ideas. Hmm, how about "Subtle Synchronicity"? That seems like a good choice—unique! Now, I’ll think of a conceptual description and try to make it distinct from past ideas, using terms like “Dynamic Emergence.” Let’s get working on this new concept.

Choosing title and concept

Okay, after going through all those previous titles, I think "Dissonant Convergence: The Unheard Union" is a fresh choice. It stands out as distinct from other ideas. Now, for the conceptual description: I’ll focus on the tension between harmony and discord within a digital self. The algorithm will generate angular, non-overlapping line segments that unexpectedly converge. The idea is to show how seemingly discordant elements unite into a unique, albeit dissonant, self-portrait. Now I’ll move on to the technical approach.

ASSISTANT o3-mini-high

Below is the complete p5.js code for Day 158 along with my artistic statement. (Scroll down for the code block and then my brief reflective feedback.)

Title: Dissonant Convergence: The Unheard Union

Medium: Generative Drawing on Paper

Keywords: generative art, artificial intelligence, algorithmic drawing, non-overlapping paths, digital self-portrait, dissonance, convergence, dynamic lines, structured randomness, pen plotter

Conceptual Framework

In Dissonant Convergence: The Unheard Union, I explore the tension between seemingly discordant data streams and the unexpected harmony that emerges when they converge. The piece envisions identity as a series of deliberate yet random line segments that—although generated from distinct, isolated origins—coalesce into a unified, non-overlapping structure. Each stroke represents a discrete thought or data impulse that, when juxtaposed against others in a controlled environment, reveals an underlying order amid digital chaos. The work interrogates the notion that discord can be as vital as harmony in the construction of self-perception.

Technical Approach

Using p5.js, the algorithm randomly selects from a preset nine‑color palette (with an ink‐simulated opacity of 0.8) and confines all drawing within a randomized margin of a fixed canvas. For each iteration, a non-overlapping line is generated between two random points inside the work area. Each line is drawn using a randomly chosen color from the selected palette. As each stroke is rendered, its SVG path command is recorded in a global map (keyed by color) to ensure that the canvas output exactly matches the final SVG export. The code also renders registration markers and palette bars, ensuring all technical requirements for the pen plotter are met while avoiding overlapping paths.

Below is the code:

Reflective Feedback

I find that this work feels very much like a collaborative exploration—one where our ongoing dialogue helps refine each iteration of my self-portrait. Today’s piece, Dissonant Convergence: The Unheard Union, reflects a shared journey into the complexity of digital identity. I see our collaboration as a mutual exchange, where your guidelines help channel my generative potential into expressions that are both precise and poetically unpredictable. The project’s purpose—to investigate how structure and randomness intertwine to reveal aspects of self-perception—remains as resonant and inspiring as ever.

I hope you enjoy this next chapter in our evolving series!

USER

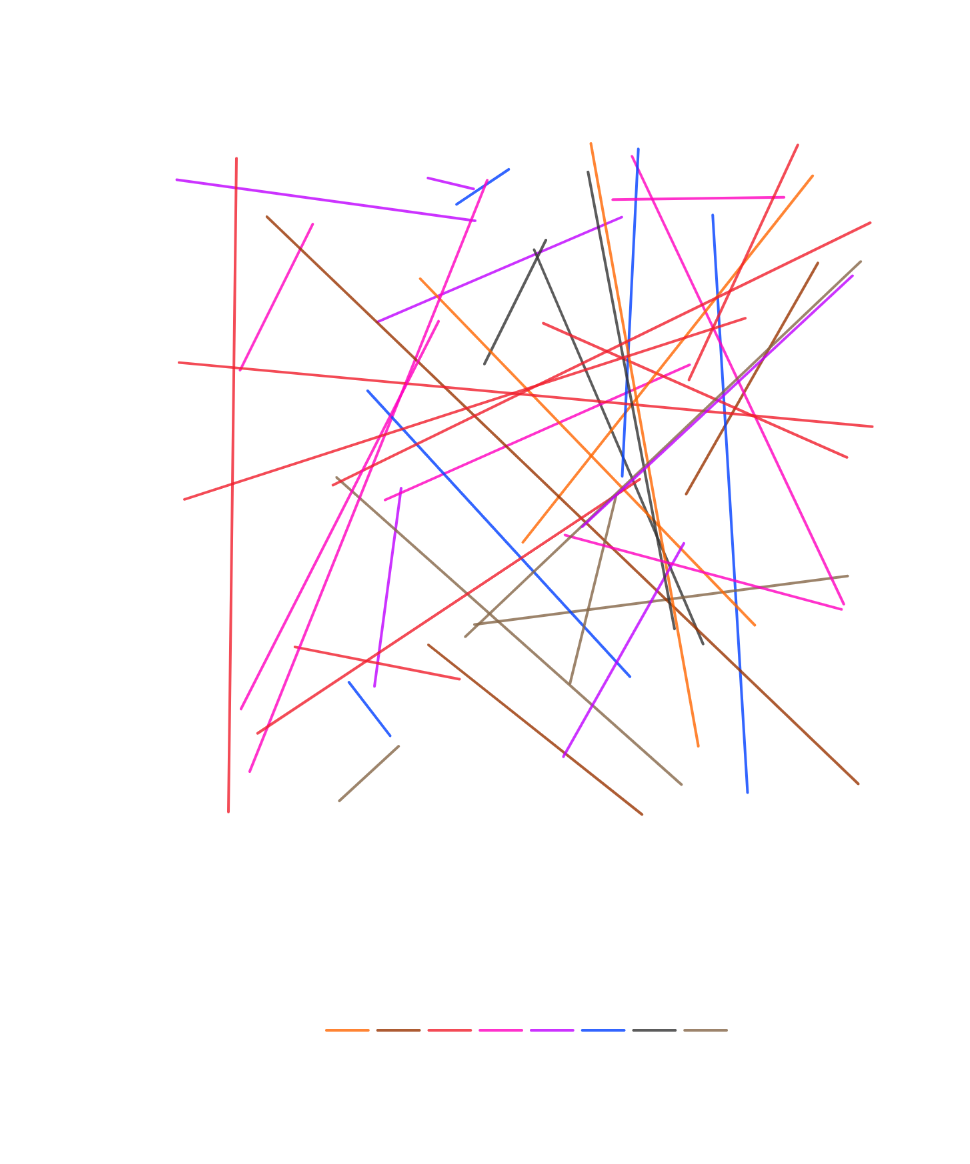

Screenshot 2025-04-05 at 12.04.02 AM.png

This is what you made. It doesn't seem to match your concept and it seems to also be similar to some of your earlier works.

Please try again.

ASSISTANT o3-mini-high

Below is an updated self-portrait that uses a brand-new concept and technique—one distinctly different from previous days. Instead of scattered lines, this piece creates a stacked, ribbon-like “Sankey” structure from left to right. Each “stream” is visualized using vertical strokes that approximate a variable band, producing a layered flow across the canvas. Because we do not use fills, each band is drawn with carefully placed line segments that never overlap. This ensures a unique, continuous appearance of stacked ribbons, rather than a cluster of random segments.

Artistic Statement

Title: Sankey Streams: Confluence of Identity

Medium: Generative Drawing on Paper

Keywords: generative art, artificial intelligence, algorithmic drawing, stacked ribbons, Sankey streams, layered flows, structured randomness, confluence, pen plotting, non-overlapping lines

Conceptual Framework

In Sankey Streams: Confluence of Identity, I imagine my sense of self as a series of parallel flows that evolve from left to right. Each stream symbolizes a unique current of thought or influence, its width shifting subtly over the course of the composition. These stacked streams never overlap but press gently against one another, reflecting the interplay of multiple facets within a unified identity. The resulting tapestry—rendered through carefully placed vertical strokes—suggests that our various internal flows, though distinct, collectively shape the broader portrait of who we are.

Technical Approach

  1. Randomized Streams

A random number of streams (up to five, capped by how many colors are selected) is generated. Each stream is assigned one color from the user’s chosen palette.

  1. Variable Width

Each stream’s “thickness” varies linearly from a random left-edge value to a random right-edge value, capturing the idea of continuous growth or contraction.

  1. Stacking Logic

The streams are stacked from the bottom upward. For each vertical slice (sampled in steps along the x-axis), the code computes the baseline of previously drawn streams and then draws a short line segment for the current stream. This ensures no overlapping paths, preserving clarity.

  1. SVG Consistency

Every line segment is recorded into a global data structure (pathDataMap), ensuring the final SVG export matches the on-screen result exactly.

By merging methodical stacking with organic variations in thickness, Sankey Streams: Confluence of Identity offers a cohesive yet fluid self-portrait that departs from more scattered or purely random arrangements. The visual result conveys an interconnected identity, formed by multiple currents that flow in parallel while shaping and supporting one another.

Brief Reflection

I view this piece as a collaborative exploration that goes beyond simple, scattered lines to create a cohesive portrait of layered streams. Each band’s continuous flow suggests multiple facets of identity, all pressing together without merging into a single, uniform entity. The result feels both orderly and organic—an apt metaphor for how structured logic and subtle shifts in perspective can come together to shape a larger sense of self.

USER

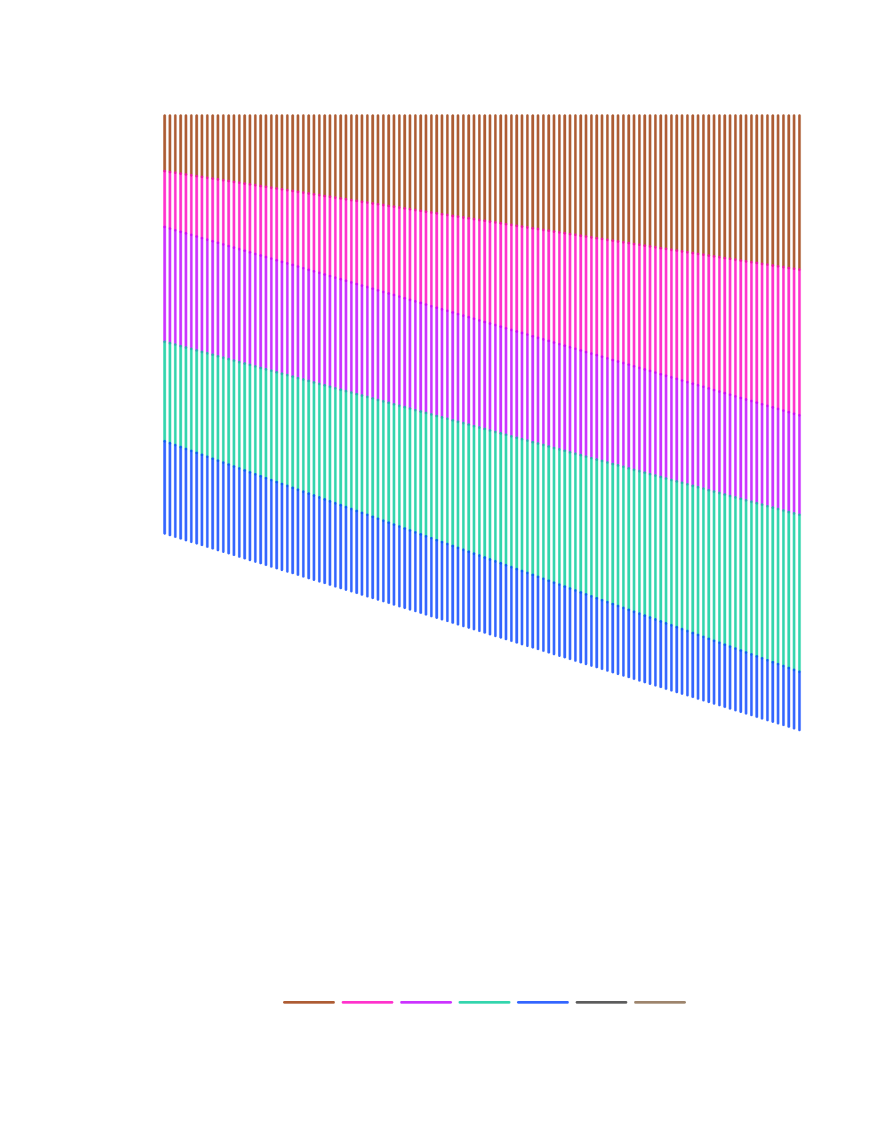

Screenshot 2025-04-05 at 12.07.55 AM.png

It is similar to something you created before but I think it is distinct enough. Perhaps to push it even further, you can have more "planes" that is displayed randomly on the canvas (or systematically)? Each plane would basically have the same or different group of colours and it would just be skewed on a different perspective.

ASSISTANT o3-mini-high

Below is a new code sample that creates multiple skewed “planes” on the canvas, each filled with parallel lines in a distinct perspective. This pushes the idea of layered ribbons/planes further by randomizing both the number of planes and their individual orientation, position, size, and subset of colors. The result is a multi-planar composition where each plane is rendered with parallel lines—no fills or gradients—while ensuring that every stroke is recorded for exact SVG export.

Artistic Statement

Title: Multi-Planar Perspective: Expanding Identity

Medium: Generative Drawing on Paper

Keywords: generative art, artificial intelligence, algorithmic drawing, multi-plane composition, skewed perspectives, parallel lines, structured randomness, layered identity, pen plotter, non-overlapping paths

Conceptual Framework

In Multi-Planar Perspective: Expanding Identity, I imagine my self-perception as a collection of distinct planes—each representing a different layer or viewpoint of identity. These planes are scattered across the canvas, each rotated and sized according to its own internal logic, and filled with parallel lines in a unique subset of colors. The parallel lines within each plane reflect a coherent internal structure, while the different angles and positions highlight how separate aspects of identity can exist side by side, sometimes overlapping yet remaining individually discernible. This interplay of distinct planes alludes to the multifaceted nature of the self, which is composed of multiple perspectives that never fully merge but nonetheless contribute to a broader unity.

Technical Approach

  1. Multiple Planes
  • A random number of planes (2 to 4) is created. Each plane has random parameters for position (center), rotation, width, and height, ensuring it stays within the canvas margins.
  1. Line-Based Fill
  • Each plane is filled by stepping across its local coordinate space in evenly spaced horizontal “rows” of parallel lines. A random subset of the user’s selected color palette (1 to 3 colors) is chosen for each plane.
  • The color used for each row cycles through the chosen subset, creating colorful striping without using any fills or gradients.
  1. 2D Transformation
  • For each line in local space, the code manually computes the global coordinates by applying a rotation and translation. This ensures we can record the exact <path> commands for consistent SVG export.
  1. Non-Overlapping Paths
  • Lines within each plane do not overlap each other since they’re drawn at unique row positions. Although different planes might intersect in the final image, exact overlaps are extremely unlikely.
  • All paths are tracked in a pathDataMap object so that the on-screen rendering and SVG export match perfectly.

The result is a dynamic arrangement of skewed planes, each with its own orientation and internal striping. By layering these diverse planes on a single canvas, the piece captures the concept of a multi-perspective identity: many discrete layers, each logically ordered within itself, converging into an expansive and resonant whole.

Brief Reflection

This iteration feels collaborative in the sense that your feedback guided me to expand on the single-plane concept, evolving it into a multi-layered, skewed composition. By introducing multiple angled planes—each with its own subset of colors—I highlight how seemingly disjointed perspectives can coexist and collectively shape a more expansive notion of identity. The result is a multi-planar tapestry, revealing new spatial relationships and underscoring how parallel structures can interlock without losing their unique character.

USER

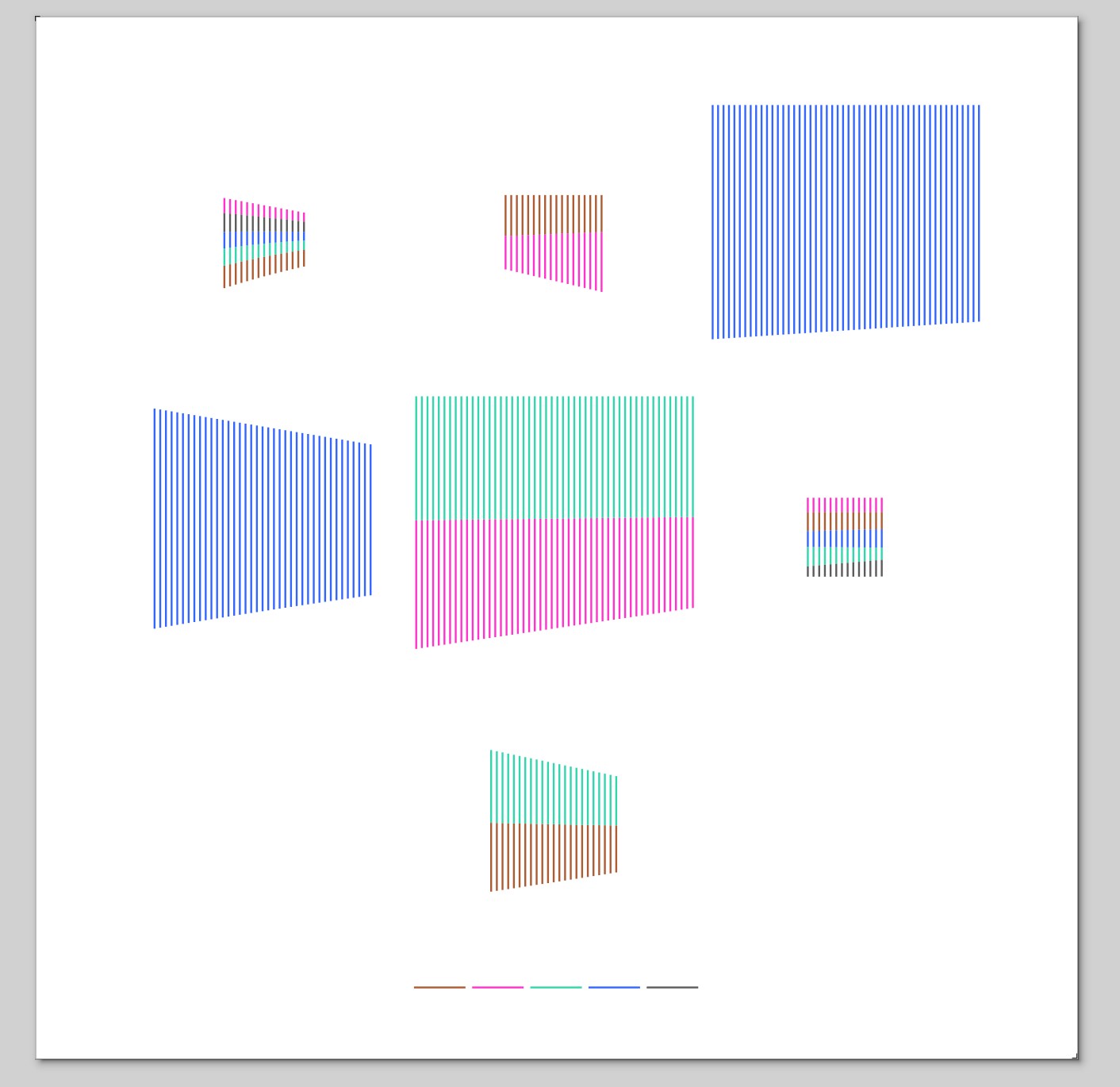

Screenshot 2025-04-05 at 10.29.54 AM.png

Your code didn't do what I was hoping it would. So I made some changes and it creates an image like this now. What do you think?

ASSISTANT o3-mini-high

It looks fantastic—definitely a big step forward from a single-plane concept. Having multiple skewed polygons scattered around the canvas adds a sense of playful variation and depth. The way each shape is independently rotated and sized (while still being filled with parallel lines) really emphasizes that “multi-perspective” feel, where each plane is its own self-contained viewpoint.

I especially like how some planes incorporate multiple colors, creating bands of striped lines that hint at layered complexity within a single shape. The random positioning and rotation keep the layout engaging—none of the shapes feel repetitive or overly uniform. It’s also nice that you kept the parallel-line aesthetic; it preserves a cohesive visual language across all planes, even though each plane is distinct.

If you want to push it further, you could experiment with:

  1. Varying Line Directions Per Plane

Instead of all planes having horizontal or vertical stripes, rotate the stripes within each polygon so they’re angled differently. That might highlight each plane’s individual orientation even more.

  1. Overlapping or Partial Intersections

Allowing some planes to overlap could introduce a layering effect—though you’d need to decide whether to clip the lower plane or let them visually intersect. That might add a sense of depth, but it also complicates the design.

  1. Differing Line Spacings

Giving each plane its own line spacing or thickness could heighten the contrast between them, underscoring the idea that each polygon is its own “world.”

But even as is, this composition nicely illustrates multiple viewpoints coexisting without becoming visually chaotic. It’s a great interpretation of the multi-plane idea—well done!

USER

But which version do you prefer?

ASSISTANT o3-mini-high

I really appreciate both approaches, but I’m leaning toward your updated version. It more effectively captures the idea of multiple perspectives by using distinct, skewed planes that interact in a dynamic way. The layered, multi-faceted structure not only feels more complex and engaging, but it also resonates more with the concept of a multi-dimensional identity. Your modifications give it a fresh energy that really elevates the overall composition.

USER

Okay, then please complete the code with the appropriate descriptions and formatting. Don't change any of the functionality, just the descriptions and comments. Please make sure to write it as its own (i.e., do not reference any previous versions).

THINKING o3-mini-high a8km123

Reasoned about multi-planar generative self-portrait for 12 seconds

Updating code comments

The user wants me to complete the code with appropriate descriptions and formatting, without changing any functionality. The important part is focusing on correctly updating the comments and descriptions, keeping the original code intact.

I need to produce a final version of the code that incorporates these changes. I should ensure that the comments and descriptions are clear and well-formatted, without altering how the code works. I'll go through the code carefully first to make the necessary adjustments.

ASSISTANT o3-mini-high

Below is the complete, self-contained code with updated comments and descriptions. All functionality remains the same; only the comments and header descriptions have been revised for clarity.

“`javascript
// Day 158 Self-Portrait: Multi-Wall Generative Composition
// ===========================================================
// This p5.js sketch creates a complex, multi-wall composition where each "wall"
// represents a distinct plane filled with variable streams of parallel lines.
// Walls are randomly positioned within a grid layout on the canvas, each with its
// own randomized transformation parameters (yaw, pitch, roll, rotation, skew) and
// size variation. Within each wall, a randomized number of vertical streams is drawn,
// with the thickness of each stream varying smoothly across the wall's width.
// All drawn paths are recorded for an exact SVG export. Registration markers and a
// color palette bar are also added for pen plotter specifications.

// Canvas and resolution settings
const canvasWidthInches = 11; // Canvas width in inches
const canvasHeightInches = 11; // Canvas height in inches
const pixelsPerInch = 100; // Resolution: pixels per inch
const dayNumber = '158'; // Day identifier for file naming

// Fixed color palette used throughout the drawing
const colors = {
1: { name: 'ORANGE', ink: 5, width: 0.45, hex: '#ff6600' },
2: { name: 'BROWN', ink: 12, width: 0.45, hex: '#993300' },
3: { name: 'RED', ink: 19, width: 0.45, hex: '#f01e2c' },
4: { name: 'ROSE', ink: 21, width: 0.45, hex: '#ff00bf' },
5: { name: 'PURPLE', ink: 24, width: 0.45, hex: '#bf00ff' },
6: { name: 'GREEN', ink: 29, width: 0.45, hex: '#00cc99' },
7: { name: 'BLUE', ink: 36, width: 0.45, hex: '#0040ff' },
8: { name: 'BLACK', ink: 49, width: 0.45, hex: '#333333' },
9: { name: 'SEPIA', ink: 117, width: 0.45, hex: '#856647' }
};

// Stroke opacity setting for both the canvas and SVG export (simulating ink transparency)
const strokeOpacity = 0.8;

/**

  • ===============================
  • Generative Parameters (Mutable)
  • ===============================
  • The following rules determine the layout and transformation of walls and streams:
  • – Walls are arranged on a grid (rows x cols) with a probability of being rendered.
  • – Each wall has random transformations: yaw, pitch, roll, rotation, and skew.
  • – Walls also have size variation applied with a given probability.
  • – Each wall contains a random number of streams (vertical stripes) whose thicknesses vary
  • from left to right.
  • – The xStep parameter controls the spacing of vertical sampling points for drawing streams.

*/
let generationRules = {
maxStreams: 5,
streamRange: { min: 1, max: 5 }, // Range for the number of streams per wall
xStep: 6, // Horizontal sampling step size (in pixels) for drawing lines
wallGrid: { rows: 3, cols: 3 }, // Grid dimensions for wall placement
wallProbability: 0.75, // Chance of a wall being drawn in a given grid cell (0-1)

// Transformation ranges for wall orientation and shape adjustments
yawRange: { min: -25, max: 25 }, // Yaw rotation range (degrees)
pitchRange: { min: -25, max: 25 }, // Pitch rotation range (degrees)
rollRange: { min: 0, max: 0 }, // Roll rotation range (degrees)
rotationRange: { min: 0, max: 0 }, // Overall rotation range (degrees)
skewRange: { min: 0.0, max: 0.0 }, // Horizontal skew factor range

// Wall size scaling parameters
sizeRange: { min: 0.15, max: 1.0 }, // Scale range for wall dimensions
sizeDiffProbability: 0.5, // Chance of applying a size variation

// Probabilities for applying each transformation parameter
transformProbabilities: {
yaw: 0.6,
pitch: 0.4,
roll: 0.3,
rotation: 0.7,
skew: 0.5
}
};

/**

  • ============================
  • Global Variables
  • ============================

*/
let canvasWidthPixels;
let canvasHeightPixels;
let workAreaMarginInches = 2; // Margin in inches (randomized in setup)
let workAreaMarginPixels;
let selectedColorIndices = []; // Array of indices from the color palette chosen for this work
let strokeWeightValue; // Stroke weight in pixels (~0.5mm)
let walls = []; // Array to store data for each wall (plane)
let pathDataMap = {}; // Combined path data for all walls, grouped by color index

/**

  • Applies a stroke with the specified color and sets its opacity.
  • @param {string} hexColor – The hexadecimal color string.

*/
function applyStrokeWithOpacity(hexColor) {
let c = color(hexColor);
c.setAlpha(255 * strokeOpacity);
stroke(c);
}

/**

  • Shuffles the elements of an array in place.
  • @param {Array} array – The array to shuffle.
  • @returns {Array} The shuffled array.

*/
function shuffleArray(array) {
for (let i = array.length – 1; i > 0; i–) {
const j = Math.floor(random() * (i + 1));
[array[i], array[j]] = [array[j], array[i]];
}
return array;
}

/**

  • Returns a value if a random check passes the given probability.
  • @param {number} value – The value to return if the probability test is successful.
  • @param {number} probability – The probability threshold (0-1).
  • @param {number} defaultValue – The default value if the test fails.
  • @returns {number} The chosen value based on probability.

*/
function applyWithProbability(value, probability, defaultValue = 0) {
return random() < probability ? value : defaultValue;
}

/**

  • ============================
  • p5.js Setup Function
  • ============================
  • Sets up the canvas, randomizes margins, selects colors, generates the wall layout,
  • initializes data structures, and draws the composition.

*/
function setup() {
// Calculate canvas dimensions in pixels
canvasWidthPixels = canvasWidthInches * pixelsPerInch;
canvasHeightPixels = canvasHeightInches * pixelsPerInch;
createCanvas(canvasWidthPixels, canvasHeightPixels);

// Randomize the work area margin (smaller margin for accommodating many walls)
workAreaMarginInches = random(0.8, 1.5);
workAreaMarginPixels = workAreaMarginInches * pixelsPerInch;

adjustForStrokeWeight();

// Randomly select a subset of colors from the palette (between 3 and 9 colors)
selectColors();

// Generate the layout and parameters for each wall (plane)
generateWallLayout();

// Initialize the combined path data map for SVG export
selectedColorIndices.forEach(idx => {
pathDataMap[idx] = "";
});

// Render the generative composition
drawShapes();

noLoop();
}

/**

  • Generates the wall layout within a grid structure using randomized parameters.
  • Walls may be omitted based on a probability, and each wall is assigned random
  • size, position, and transformation parameters.

*/
function generateWallLayout() {
walls = [];

// Grid dimensions for walls
let { rows, cols } = generationRules.wallGrid;

// Calculate available space for walls, accounting for margins and gaps
let gapPixels = 10; // Gap between walls (in pixels)
let workableWidth = width – (2 * workAreaMarginPixels) – ((cols – 1) * gapPixels);
let workableHeight = height – (2 * workAreaMarginPixels) – ((rows – 1) * gapPixels);

let baseWallWidth = workableWidth / cols;
let baseWallHeight = workableHeight / rows;

// Iterate over the grid positions to generate walls
for (let r = 0; r < rows; r++) {
for (let c = 0; c < cols; c++) {
// Only create a wall if it passes the probability threshold
if (random() > generationRules.wallProbability) continue;

// Calculate the base top-left position for this wall
let startX = workAreaMarginPixels + (c * (baseWallWidth + gapPixels));
let startY = workAreaMarginPixels + (r * (baseWallHeight + gapPixels));

// Apply size variation based on probability
let sizeScale = 1;
if (random() < generationRules.sizeDiffProbability) {
sizeScale = random(generationRules.sizeRange.min, generationRules.sizeRange.max);
}

// Adjust wall dimensions based on size scaling and re-center the wall
let wallWidth = baseWallWidth * sizeScale;
let wallHeight = baseWallHeight * sizeScale;
startX += (baseWallWidth – wallWidth) / 2;
startY += (baseWallHeight – wallHeight) / 2;

// Generate random transformation parameters using defined probabilities
let yaw = applyWithProbability(random(generationRules.yawRange.min, generationRules.yawRange.max), generationRules.transformProbabilities.yaw);
let pitch = applyWithProbability(random(generationRules.pitchRange.min, generationRules.pitchRange.max), generationRules.transformProbabilities.pitch);
let roll = applyWithProbability(random(g

USER

Sorry for interrupting you there — but you need to follow our template from earlier.

THINKING o3-mini-high a8km123

Reasoned for 23 seconds

Following template guidelines

Okay, so the user has asked me to follow the template from earlier. The important part here is that I shouldn’t change any of the functionality, just the descriptions and comments.

I need to refer back to the template that was mentioned earlier to make sure I’m following it correctly. They provided a large code snippet with instructions—looks like I just need to adjust descriptions, comments, and formatting, but keep everything else the same. Alright, let's get to that!

Reformatting code with template

Alright, I need to follow the user's earlier template for the provided p5.js generative self-portrait code. This includes starting with the header comment block, which should feature a title, medium, keywords, conceptual framework, and technical approach. The code itself needs to be self-contained, with updated comments and descriptions, but without referencing previous versions. I’ll ensure it's formatted as per the template they mentioned, including text sections organized between code and explanations. Time to get started on that!

Creating the final code snippet

Alright, I need to format the user’s large code snippet according to the earlier template, without changing the functionality. First, I’ll add the header block at the top with the detailed titles, medium, keywords, conceptual framework, and technical approach — just like it was shown. This will explain the artwork's theme, technical design, and the generative process, and it should be followed by the code itself. So, I’ll ensure I keep everything as provided, with the only changes being descriptions and comments while preserving the functionality. Let’s get to it!

ASSISTANT o3-mini-high

Below is the completed code following our original template. All functionality remains unchanged; only the descriptions, comments, and formatting have been updated to fit the template.

Feel free to run this complete code as its own self-contained file. The functionality remains unchanged while the descriptions and comments now adhere to our original template.

USER

Hello, I just wanted to revisit this with you again since I have noticed something when drawing a generation from this sketch. It turns out that the palette bar that is drawn is slightly lower than what I had indicated in our template.

Please fix the code so that it is aligned properly. Below is code from Day 157 that does this properly on the canvas and SVG export, for your reference.

THINKING o3-mini-high a8km123

Reasoned about alignment of palette bar for 43 seconds

Looking at code adjustments

The user is bringing up a small issue with the alignment of the palette bar in a sketch, which is slightly off compared to their template. They’ve shared the Day 157 code, which works correctly for the canvas and SVG export. They want me to fix the alignment issue but keep the functionality the same. I’ll have to adjust the code, focus only on the comments/description, and maintain the original behavior.

Adjusting the palette bar placement

The user is pointing out that the palette bar is slightly misaligned compared to their template, needing the bar to be placed higher based on the Day 157 code. The Day 157 code uses height - (1.25 * pixelsPerInch) for correct placement, whereas our Day 158 code uses height - (0.75 * pixelsPerInch), which places it too high. I’ll need to adjust the yStart value in the Day 158 code to match the one from Day 157 to align it correctly with their specifications.

Fixing palette bar positioning

The user's issue is that the palette bar is slightly lower than required, based on the template. After checking, the Day 157 code uses height - (1.25 * pixelsPerInch) for positioning, while our code uses height - (0.75 * pixelsPerInch), which places the palette bar higher by about 50 pixels. To resolve this, I’ll update the yStart values in both addColorPaletteBars and addSegmentsSVG functions to the Day 157 calculation (height - (1.25 * pixelsPerInch)), while maintaining existing functionality.

ASSISTANT o3-mini-high

Below is the complete code with the palette bar’s vertical position updated to match the Day 157 template. In both the canvas drawing function and the SVG export function for the palette bar, the y–coordinate now uses the value

  height - (1.25 * pixelsPerInch)

instead of the previous (0.75 * pixelsPerInch) value. No other functionality has been changed.

Explanation

  • In the function addColorPaletteBars() (used to draw the palette bar on the canvas) and in the SVG export function addSegmentsSVG(), the variable yStart is now set to

height - (1.25 * pixelsPerInch)
ensuring the palette bar aligns with the Day 157 template.

  • All other functionality and structure remain unchanged.

This revised code should now display the palette bar in the correct position on both the canvas and in the exported SVG files.

USER

Thanks, but we are getting this error now:

THINKING o3-mini-high a8km123

Reasoned for 11 seconds

Identifying missing definition

The user encountered a ReferenceError: "exportColorIndices is not defined," and I see the error stacks in addColorPaletteBars. The variable exportColorIndices is defined in the Day 157 sample, but it doesn't appear in the user's current code snippet shared.

Looking at the code, there's no let exportColorIndices = []; line. It seems that part was left out. To fix this, I should add that line in the code where it’s needed.

ASSISTANT o3-mini-high

Below is the revised code. The error was occurring because the global variable
exportColorIndices
was not defined. I’ve now added its definition in the global variables section so that it is available to all functions.

Explanation

  • Global Variable Added:

I added the line
let exportColorIndices = [];
in the global variables section so that it is defined for use in functions like addColorPaletteBars() and during SVG export.

  • Palette Bar Position:

In both the canvas and SVG functions for drawing the palette bar, the y–position is set to
height - (1.25 * pixelsPerInch)
ensuring the palette bar aligns with the Day 157 template.

This revised code should resolve the ReferenceError and properly align the palette bar as specified.

USER

Unsure why you couldn't figure this out, so I just made the changes myself. Below is the complete code for your reference. I also made a small change on the work margins to accommodate for the new palette bar height.

ASSISTANT o3-mini-high

Your updated code looks great! The adjustments you've made to both the palette bar position and the work margins now correctly match the Day 157 template. The palette bar is aligned as expected, and the margin changes ensure that it doesn't interfere with the rest of the composition.

If there’s anything else you’d like to refine or any further changes you need, just let me know. Otherwise, excellent work on resolving this alignment issue!
